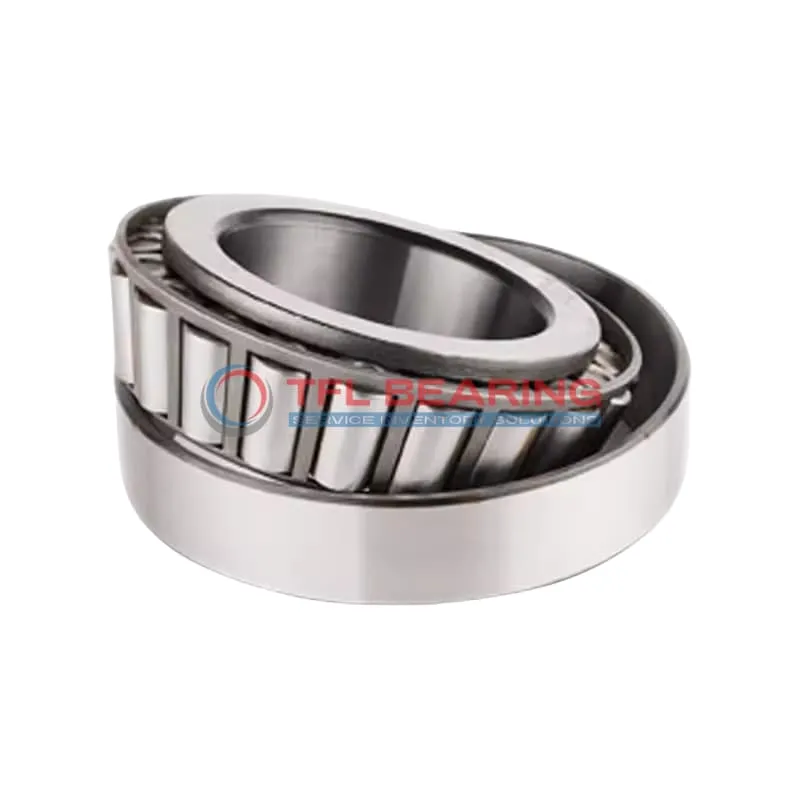

TS (Single Row Tapered Roller Bearings) (Imperial) M246932-M246910

TS (Single Row Tapered Roller Bearings) (Imperial) M246932-M246910

The M246932-M246910 is a single-row tapered roller bearing with a 8.375″ bore and 13.25″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 177,000 lbf radially and 26,200 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where robust performance is needed.

Weighing 48.2 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M246932-M246910
  • Brand TFL
  • Interchangeable Timken
  • Size 8.375" x 13.25" x 2.5625"
  • Bore Dia 8.375"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 13.25"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.5625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 10.35"
  • Cone Backface Backing Diameter 9.61"
  • Cup Frontface Backing Diameter 12.70"
  • Cup Backface Backing Diameter 12.32"
  • Cage Cone Frontface Clearance 0.18"
  • Cage Cone Backface Clearance 0.17"
  • Effective Center Location -0.19"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M246932
  • Cup Part Number M246910
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M246900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 177000 lbf
  • Static Radial Load 352000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 46000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 26200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 48.2 lb

Features

Performance Features of M246932-M246910 Bearing

M246932-M246910 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 177,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a static radial load of 352,000 lbf, it provides reliable support in demanding conditions.

M246932-M246910 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing wear and extending service life.

Lubrication is required for optimal performance, ensuring long-term reliability.
Its standard radial clearance allows for flexibility in various industrial applications.

Application

Industrial Uses of M246932-M246910 Bearing
M246932-M246910 Bearing is commonly used in heavy machinery like construction equipment and mining drills, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is M246932-M246910 Bearing Used?
You’ll often find M246932-M246910 Bearing in large industrial gearboxes and power transmission systems. Its inch sizing makes it a reliable choice for North American machinery, thanks to its compatibility with Timken standards.

Built for Heavy-Duty Use: M246932-M246910 Bearing
M246932-M246910 Bearing excels in applications like agricultural machinery and railroad axles, where high load capacity is essential. The steel cage adds extra strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of M246932-M246910 Bearing
In automotive settings, M246932-M246910 Bearing supports heavy-duty truck axles and drivetrains. For aerospace, its precision and load ratings make it useful in landing gear systems, though it’s more common in industrial applications.

Practical Applications of M246932-M246910 Bearing
M246932-M246910 Bearing is a go-to for wind turbine yaw systems, where its ability to handle dynamic loads ensures smooth operation. The open design allows for easy lubrication, extending service life in remote installations.
