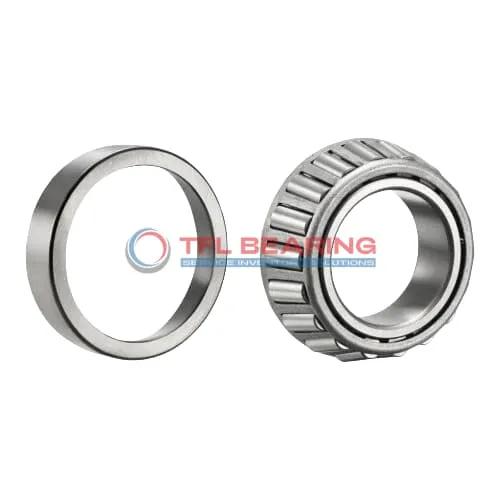

TS (Single Row Tapered Roller Bearings) (Imperial) 535-533A

TS (Single Row Tapered Roller Bearings) (Imperial) 535-533A

The 535-533A is a single-row tapered roller bearing with a 1.75″ bore and 4.0625″ outer diameter, crafted from robust chrome steel. It manages combined loads up to 38700 lbf radially and 5090 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 3.4 lb, it offers a sturdy build with standard radial clearance options. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 535-533A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.0625" x 1.5001"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.0625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5001"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 535
  • Cup Part Number 533A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.400 lb

Features

Performance Features of 535-533A Bearing

535-533A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

535-533A Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different applications.

Application

Industrial Uses of 535-533A Bearing
535-533A Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in rugged environments.

In automotive applications, 535-533A Bearing supports wheel hubs and drivetrains, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward fit for many North American vehicle models.

For industrial conveyors, 535-533A Bearing’s open design simplifies maintenance, while its standard radial clearance accommodates thermal expansion. The steel cage adds extra resilience in high-load scenarios.

What Makes 535-533A Bearing a Preferred Choice?
535-533A Bearing excels in agricultural machinery, where its robust design withstands dust and debris. The tapered rollers distribute loads evenly, reducing wear over time.

In mining equipment, 535-533A Bearing’s high dynamic radial load capacity ensures smooth operation under extreme conditions. Its compatibility with Timken models also simplifies replacements.

Built for Heavy-Duty Use: 535-533A Bearing
535-533A Bearing is ideal for gearboxes in industrial settings, where precision and strength are key. The single-row construction offers a compact solution without sacrificing performance.

For railway applications, 535-533A Bearing handles both radial and thrust loads efficiently. Its temperature range suits diverse climates, from freezing winters to hot summers.

Automotive vs Aerospace: Applications of 535-533A Bearing
In automotive systems, 535-533A Bearing is often found in differentials, where its combined load capacity shines. The ABEC-1 rating ensures consistent performance for everyday driving.

For aerospace ground support equipment, 535-533A Bearing’s reliability is valued in maintenance tools and trolleys. Its chrome steel components resist corrosion in outdoor conditions.
