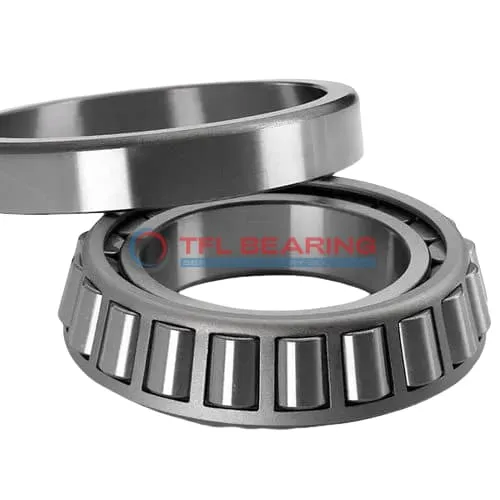

TS (Single Row Tapered Roller Bearings) (Imperial) M231648-M231610V

TS (Single Row Tapered Roller Bearings) (Imperial) M231648-M231610V

The M231648-M231610V is a single-row tapered roller bearing with a 6″ bore and 8.75″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 84600 lbf radially and 12500 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where robust performance is needed.

Weighing 12.4 lb, it’s built to last while meeting RoHS and REACH standards for safety and compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M231648-M231610V
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 8.75" x 1.8437"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 8.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.8437"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.8437"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.310"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 7.32"
  • Cone Backface Backing Diameter 7.01"
  • Cup Frontface Backing Diameter 8.43"
  • Cup Backface Backing Diameter 8.15"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.21"
  • Effective Center Location -0.24"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M231648
  • Cup Part Number M231610V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M231600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 84600 lbf
  • Static Radial Load 150000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 21900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 12500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 12.4 lb

Features

Performance Features of M231648-M231610V Bearing

M231648-M231610V Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 84,600 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is M231648-M231610V Bearing Engineered for Reliability?

M231648-M231610V Bearing features precise tolerances, with bore and outer diameters held to +0.001″ to 0.
The tapered roller design distributes loads evenly, improving efficiency and longevity.
Its static radial load capacity of 150,000 lbf ensures stability in demanding environments.
The standard radial clearance option allows for flexibility in different applications.

Built for Durability: M231648-M231610V Bearing

M231648-M231610V Bearing’s chrome steel construction resists wear, even under high stress.
The single-row design simplifies installation while maintaining performance.
With an ABEC-1 rating, it balances precision and cost-effectiveness.
Lubrication is required to maintain optimal operation and extend service life.

Steel vs Ceramic Bearings: Strengths of M231648-M231610V Bearing

M231648-M231610V Bearing uses chrome steel for both rollers and rings, providing excellent strength.
This material choice ensures reliable performance in industrial applications.
The bearing’s dynamic thrust rating of 12,500 lbf at 90 million revolutions demonstrates its capability.
Its standard radial clearance makes it versatile for various machinery needs.

Application

Industrial Uses of M231648-M231610V Bearing
M231648-M231610V Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, M231648-M231610V Bearing supports axle systems and wheel hubs, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, M231648-M231610V Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is M231648-M231610V Bearing Used?
M231648-M231610V Bearing finds its place in agricultural machinery, such as tractors and harvesters, where its robust design withstands rough conditions. The standard radial clearance ensures smooth operation even with varying loads.

In mining equipment, M231648-M231610V Bearing’s high dynamic radial load capacity makes it ideal for crushers and screens. The ABEC-1 rating provides sufficient precision for these heavy-duty applications.

Built for Heavy-Duty Use: M231648-M231610V Bearing
M231648-M231610V Bearing excels in forestry machinery, handling the shocks and vibrations typical in logging operations. Its tapered rollers distribute loads evenly, reducing wear over time.

For railway applications, M231648-M231610V Bearing’s temperature range and lubrication requirements make it suitable for both freight and passenger trains. The inch measurements ensure compatibility with standard rail components.

Automotive vs Aerospace: Applications of M231648-M231610V Bearing
In automotive settings, M231648-M231610V Bearing is often found in drivetrains, where its combined load capacity is essential. The chrome steel rollers provide long-lasting performance under constant stress.

While not typically used in aerospace, M231648-M231610V Bearing’s reliability makes it a backup choice for ground support equipment. Its weight and size are more suited to terrestrial applications.
