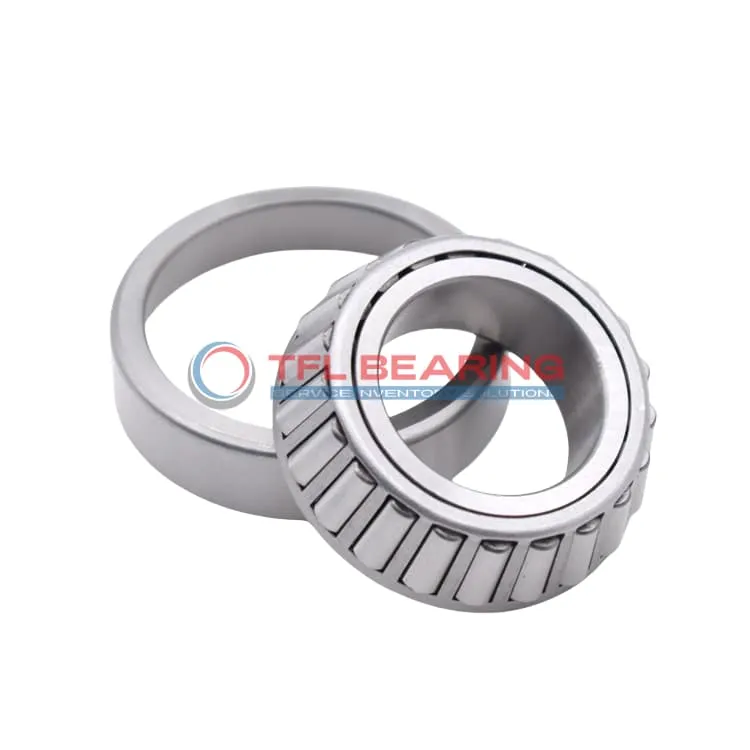

TS (Single Row Tapered Roller Bearings) (Imperial) LL582949-LL582910

TS (Single Row Tapered Roller Bearings) (Imperial) LL582949-LL582910

The LL582949-LL582910 is a single-row tapered roller bearing with a 29″ bore and 32.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 95300 lbf and is designed for long-lasting performance.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large equipment where combined loads are common.

Weighing 44.9 lb, it’s built to withstand demanding conditions while complying with RoHS and REACH standards. The standard radial clearance offers reliable performance in various settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LL582949-LL582910
  • Brand TFL
  • Interchangeable Timken
  • Size 29" x 32.5" x 1.25"
  • Bore Dia 29"
  • Bore Dia Tolerance +0.003" to 0
  • Outer Dia 32.5"
  • Outer Dia Tolerance +0.003" to 0
  • Cone Width 1.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.25"
  • Width Tolerance +0.015" to -0.015"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 36.5"
  • Cone Backface Backing Diameter 29.65"
  • Cup Frontface Backing Diameter 32.46"
  • Cup Backface Backing Diameter 31.77"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance -0.05"
  • Effective Center Location 3.42"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number LL582949
  • Cup Part Number LL582910
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series LL582900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 95300 lbf
  • Static Radial Load 291000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 24700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 16800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 44.900 lb

Features

Performance Features of LL582949-LL582910 Bearing

LL582949-LL582910 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 95,300 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

LL582949-LL582910 Bearing’s standard radial clearance allows for smooth operation under different load conditions.
Its tapered roller design ensures efficient load distribution, enhancing durability and reliability.

The bearing requires lubrication, but its robust construction minimises maintenance needs.
Its ABEC-1 rating ensures consistent performance for standard precision applications.

Application

Industrial Uses of LL582949-LL582910 Bearing
LL582949-LL582910 Bearing is commonly used in heavy industrial equipment like mining machinery and large conveyor systems, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, LL582949-LL582910 Bearing supports large vehicle components such as truck axles and differential systems. Its imperial sizing makes it a straightforward replacement for Timken bearings in North American machinery.

For construction equipment, LL582949-LL582910 Bearing’s high static radial load capacity makes it suitable for cranes and excavators. The open design allows for easy lubrication, extending service life in dusty conditions.

What Makes LL582949-LL582910 Bearing a Preferred Choice?
LL582949-LL582910 Bearing stands out in agricultural machinery, particularly in tractors and harvesters, due to its robust steel cage and tapered roller design. The standard radial clearance offers reliable performance under varying loads.

In railway applications, LL582949-LL582910 Bearing provides stability for freight car axles, where its dynamic thrust rating ensures smooth operation over long distances. The ABEC-1 rating balances precision and cost-effectiveness for heavy transport needs.

Built for Heavy-Duty Use: LL582949-LL582910 Bearing
LL582949-LL582910 Bearing excels in oil and gas equipment, such as drilling rigs, thanks to its high static radial load capacity. The chrome steel rollers resist wear even under extreme pressure and temperature fluctuations.

For wind turbine systems, LL582949-LL582910 Bearing’s effective center location design helps manage uneven loads in gearboxes. Its compatibility with Timken parts simplifies maintenance in remote installations.

Automotive vs Aerospace: Applications of LL582949-LL582910 Bearing
In automotive sectors, LL582949-LL582910 Bearing is ideal for heavy-duty truck wheel hubs, where its inch measurements align with standard repair parts. The combined load handling suits variable road conditions.

For aerospace ground support equipment, LL582949-LL582910 Bearing’s temperature range works well in tow tractors and cargo loaders. However, its weight makes it less suitable for airborne components compared to specialised aerospace bearings.
