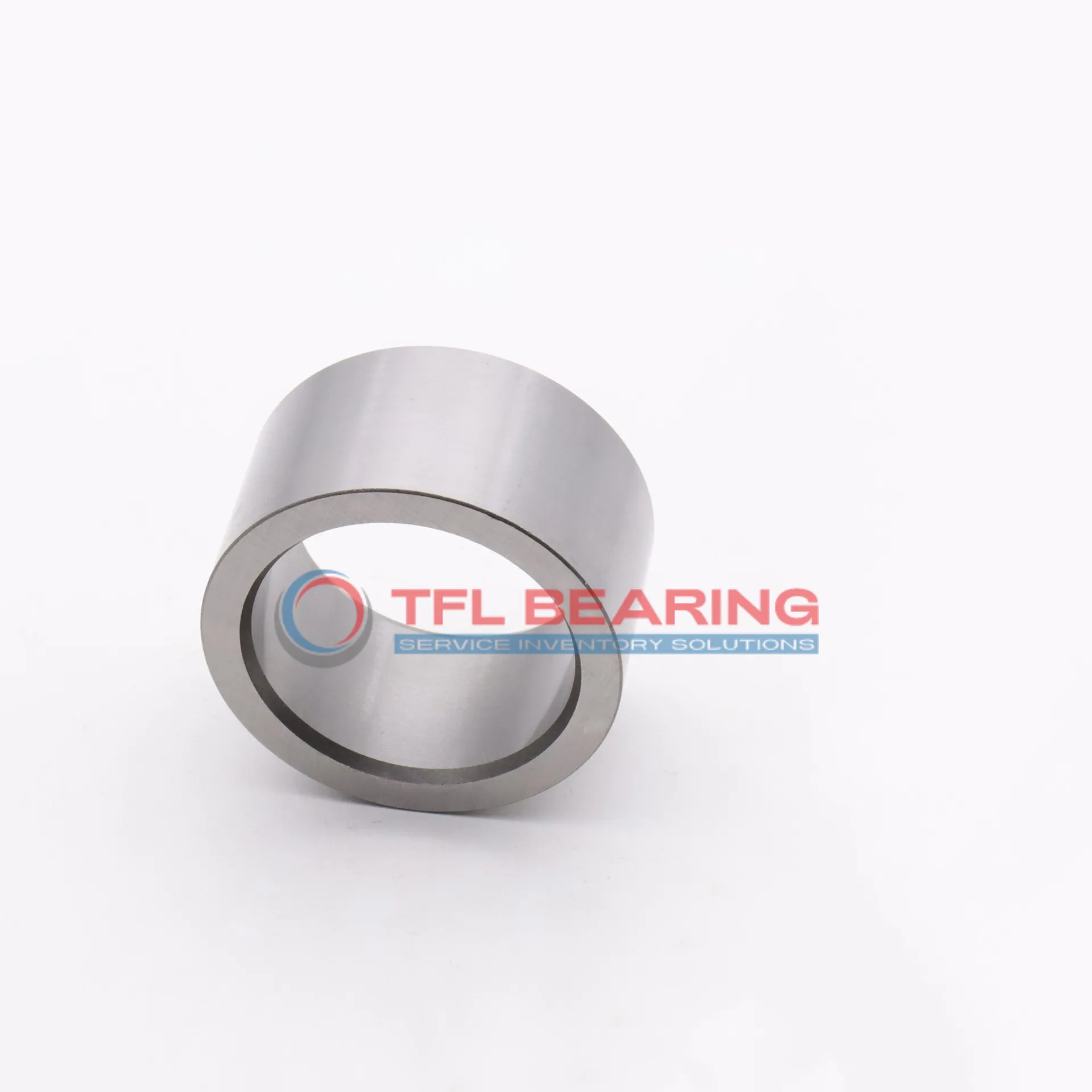

Inner Rings IR12X15X16.5-XL

Inner Rings IR12X15X16.5-XL

The IR12X15X16.5-XL is a needle roller bearing inner ring with a 12mm bore and 15mm outer diameter, crafted from sturdy chrome steel. Its compact width of 16.5mm makes it suitable for tight spaces.
This lubricated ring handles high radial loads smoothly, thanks to its needle roller design. The precise tolerances ensure a secure fit and reliable performance in demanding applications.
With a minimal chamfer of 0.3mm, it fits seamlessly into assemblies without sharp edges. The ring is interchangeable with INA bearings, offering flexibility for replacements.
Ideal for gearboxes, transmissions, or small machinery where space and load capacity are key. Weighing just 8.1g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR12X15X16.5-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.018mm to -0.004mm
  • Width 16.5 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 8.1 g
  • Rmin 0.3 mm
Inner Rings IR12X15X16.5-XL dimension drawing
Download DWG Download PDF

Features

Why Choose IR12X15X16.5-XL Bearing for Precision Tasks?
IR12X15X16.5-XL Bearing is crafted from chrome steel, offering durability and resistance to wear in precision applications.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The metric dimensions and tight tolerances provide reliable performance in demanding environments.
With RoHS compliance, IR12X15X16.5-XL Bearing meets environmental standards while maintaining high quality.
Lubrication is pre-applied, reducing maintenance needs and ensuring smooth operation from the start.
The lightweight design at just 8.1 grams makes it ideal for applications where weight is a concern.

Application

Key Fields for IR12X15X16.5-XL Bearing
IR12X15X16.5-XL Bearing is commonly used in compact industrial machinery, especially where space is limited but high load capacity is needed. Its needle roller design offers efficient performance in applications like gear pumps and small electric motors.
In automotive systems, IR12X15X16.5-XL Bearing fits well in transmission components and steering mechanisms. The chrome steel material ensures durability even under frequent stress and varying temperatures.
For automation equipment, IR12X15X16.5-XL Bearing provides reliable support in precision parts like robotic joints. Its lubricated design helps maintain smooth operation over extended periods.
In household appliances, IR12X15X16.5-XL Bearing can be found in items like power tools and small fans. The metric sizing makes it easy to replace in a variety of common devices.
