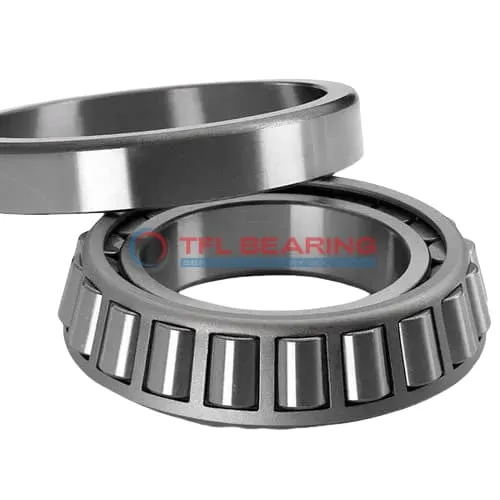

TS (Single Row Tapered Roller Bearings) (Imperial) L730649-L730610

TS (Single Row Tapered Roller Bearings) (Imperial) L730649-L730610

The L730649-L730610 is a single-row tapered roller bearing with a 6″ bore and 8″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 43500 lbf radially and 8860 lbf thrust, suitable for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 5.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L730649-L730610
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 8" x 1.125"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 8"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.844"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.125"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.13"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 7.17"
  • Cone Backface Backing Diameter 6.5"
  • Cup Frontface Backing Diameter 7.83"
  • Cup Backface Backing Diameter 7.48"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.45"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number L730649
  • Cup Part Number L730610
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series L730600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 43500 lbf
  • Static Radial Load 76100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8860 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.2 lb

Features

Performance Features of L730649-L730610 Bearing

L730649-L730610 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 43,500 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

L730649-L730610 Bearing requires lubrication, which helps maintain smooth operation over time.
The standard radial clearance option provides flexibility for different installation needs.

Designed for combined load directions, this bearing is suitable for diverse industrial applications.
Its single-row construction ensures compactness while maintaining high load capacity.

Application

Industrial Uses of L730649-L730610 Bearing
L730649-L730610 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, L730649-L730610 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a straightforward choice for North American vehicle designs.

For industrial conveyor systems, L730649-L730610 Bearing’s open design allows for easy lubrication, extending service life in continuous operation scenarios. The steel cage adds stability, reducing wear over time.

Where Is L730649-L730610 Bearing Used?
You’ll often find L730649-L730610 Bearing in agricultural machinery, like tractors and harvesters, where its robust design copes with uneven loads and harsh conditions. The standard radial clearance ensures smooth rotation.

In railway applications, L730649-L730610 Bearing supports axle boxes, offering consistent performance under heavy loads and high speeds. Its compatibility with Timken designs makes maintenance and replacements hassle-free.

Built for Heavy-Duty Use: L730649-L730610 Bearing
L730649-L730610 Bearing excels in wind turbine gearboxes, where its tapered rollers manage both radial and axial forces efficiently. The ABEC-1 rating ensures sufficient precision for most industrial needs.

For pulp and paper processing equipment, L730649-L730610 Bearing’s steel cage and chrome steel rollers resist corrosion from moisture and chemicals. Its temperature range suits both indoor and outdoor installations.

Automotive vs Aerospace: Applications of L730649-L730610 Bearing
In automotive settings, L730649-L730610 Bearing is ideal for drivetrain components, balancing load capacity and compact sizing. Aerospace applications, however, often require lighter materials, making this bearing better suited for ground-based machinery.

For industrial pumps, L730649-L730610 Bearing’s dynamic thrust rating ensures reliable operation in high-pressure systems. The inch measurements simplify integration into existing US-made equipment.
