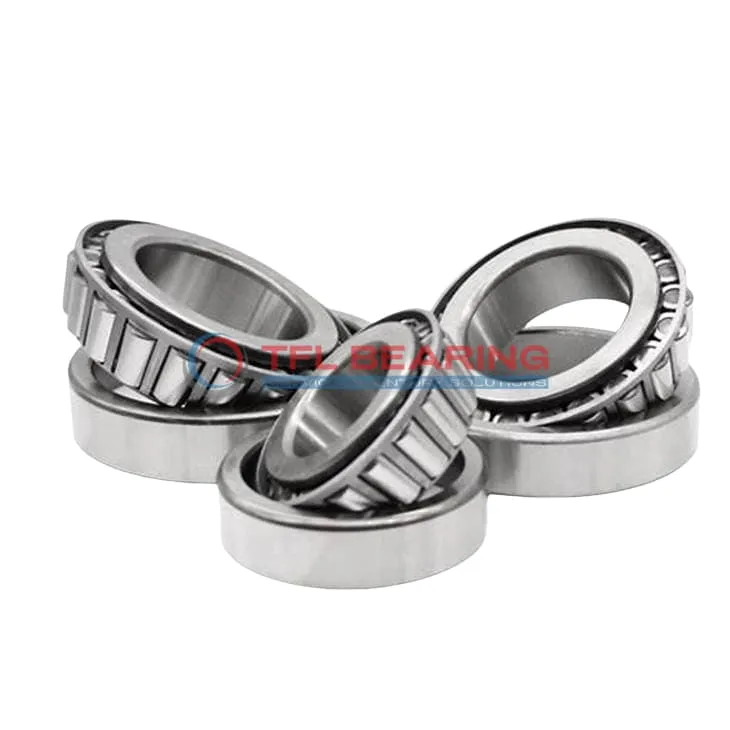

TS (Single Row Tapered Roller Bearings) (Imperial) 5583V-5520

TS (Single Row Tapered Roller Bearings) (Imperial) 5583V-5520

The 5583V-5520 is a single-row tapered roller bearing with a 2.375″ bore and 4.7343″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 63,000 lbf radially and 10,000 lbf in thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where combined loads are common.

Weighing 5.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5583V-5520
  • Brand TFL
  • Interchangeable Timken
  • Size 2.375" x 4.7343" x 1.7499"
  • Bore Dia 2.375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.7343"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7499"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.83"
  • Cone Backface Backing Diameter 3.07"
  • Cup Frontface Backing Diameter 4.56"
  • Cup Backface Backing Diameter 4.13"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5583V
  • Cup Part Number 5520
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 63000 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 16300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.1 lb

Features

Performance Features of 5583V-5520 Bearing

5583V-5520 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 63,000 lbf, ensuring reliable performance in heavy-duty applications.

The single-row tapered roller design provides effective load distribution, reducing wear and extending service life.
With a standard radial clearance, it balances durability and efficiency across various operating conditions.

5583V-5520 Bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.
The steel cage maintains roller alignment, ensuring smooth operation even under high stress.

Lubrication is required for optimal performance, but the design simplifies maintenance routines.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 5583V-5520 Bearing
5583V-5520 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, 5583V-5520 Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 5583V-5520 Bearing’s open design allows for easy lubrication, extending service life in high-load environments. The steel cage adds stability, reducing wear over time.

Where Is 5583V-5520 Bearing Used?
You’ll often find 5583V-5520 Bearing in agricultural machinery, where its ability to handle radial and thrust loads keeps equipment running smoothly. The standard radial clearance ensures consistent performance.

In power transmission systems, 5583V-5520 Bearing supports shafts and gears, thanks to its robust construction. The ABEC-1 rating makes it suitable for general precision requirements.

Built for Heavy-Duty Use: 5583V-5520 Bearing
5583V-5520 Bearing excels in forestry equipment, where its tapered rollers manage uneven loads and shocks. The chrome steel rollers resist wear, even in dusty or wet conditions.

For railway applications, 5583V-5520 Bearing provides reliable performance in axle boxes, handling both radial and axial forces. Its temperature range suits various climates.

Automotive vs Aerospace: Applications of 5583V-5520 Bearing
In automotive settings, 5583V-5520 Bearing is ideal for truck wheel ends, balancing durability and load capacity. The imperial measurements align with standard US components.

For aerospace ground equipment, 5583V-5520 Bearing supports heavy loads in tow tractors and loading systems. Its steel cage ensures stability during frequent use.
