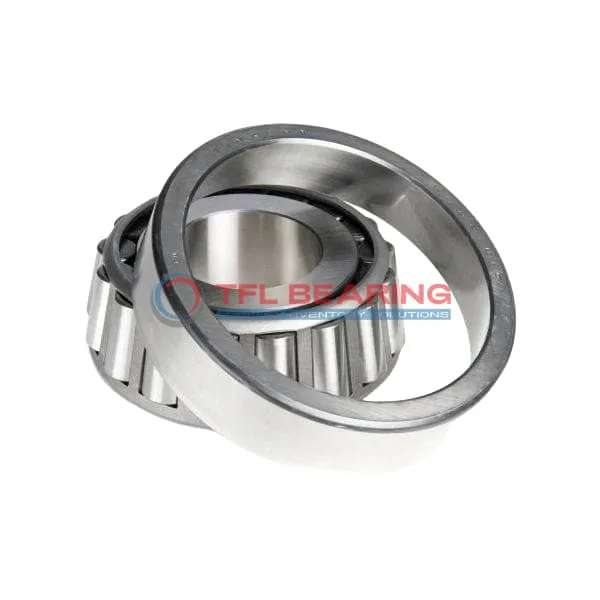

TS (Single Row Tapered Roller Bearings) (Imperial) L305649-L305613

TS (Single Row Tapered Roller Bearings) (Imperial) L305649-L305613

The L305649-L305613 is a single-row tapered roller bearing with a 2-inch bore and 3.281-inch outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 13700 lbf dynamically and 20000 lbf statically, with a smooth operation up to 110°C.

Its open design and steel cage ensure durability, while the tapered rollers provide stable performance under heavy radial and thrust loads. The bearing requires regular lubrication for optimal use.

Interchangeable with Timken models, it’s a practical choice for replacements in industrial settings. Suitable for machinery like gearboxes or conveyors where combined loads are common.

Weighing just 0.8 lb, it’s compact yet robust. Compliant with RoHS and REACH standards, making it safe for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L305649-L305613
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 3.281" x 0.7187"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.281"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.7188"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7187"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.11"
  • Cup Backface Backing Diameter 2.91"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number L305649
  • Cup Part Number L305613
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series L305600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13700 lbf
  • Static Radial Load 20000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3540 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2160 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Why Choose L305649-L305613 Bearing for Combined Loads?

L305649-L305613 Bearing is crafted from chrome steel, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 13,700 lbf, making it suitable for demanding industrial applications.

The tapered roller design ensures smooth operation under combined loads, enhancing performance and reliability.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.
Its standard radial clearance options provide flexibility for different operational needs.

Application

Key Fields for L305649-L305613 Bearing
L305649-L305613 Bearing is commonly used in industrial equipment like conveyor systems and gearboxes, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, L305649-L305613 Bearing fits well in wheel hubs and differential systems, providing reliable performance under heavy loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For automation systems, L305649-L305613 Bearing supports robotic arms and assembly lines, where precision and load capacity are key. The open design allows for easy lubrication, extending its service life.

L305649-L305613 Bearing also finds use in agricultural machinery, such as tractors and harvesters, thanks to its robust build. The standard radial clearance ensures smooth operation in varying temperatures.
