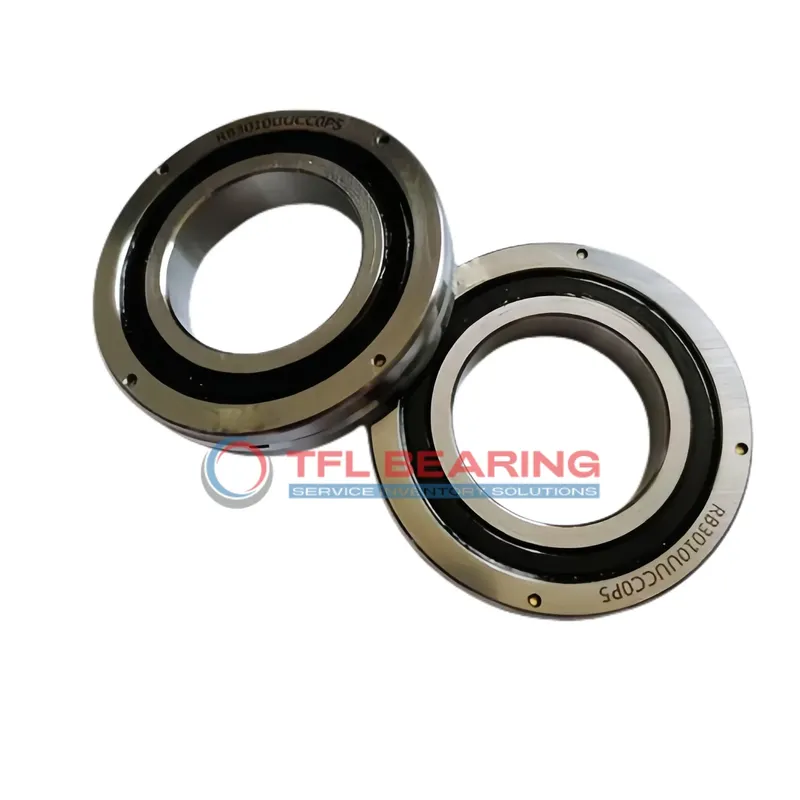

RB Crossed Roller Bearings RB15013UU

RB Crossed Roller Bearings RB15013UU

The RB15013UU is a crossed roller bearing with a compact design, measuring 150mm in bore diameter and 180mm in outer diameter, with a width of just 13mm. Made from sturdy steel, it handles combined loads efficiently, with a basic load rating of 27kN.

Its double-sealed construction keeps contaminants out and lubrication in, ensuring smooth operation. The bearing is press-fit mounted, making installation straightforward for various applications.

Suitable for temperatures from 0°C to 110°C, it performs reliably in demanding environments. With an ABEC5 rating (upgradable to ABEC7/9), it offers precision for industrial machinery or robotics.

Weighing 0.68kg, it’s a robust yet lightweight choice. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. Ideal for applications needing high rigidity and accuracy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB15013UU
  • Brand TFL
  • size 150 mm x 180 mm x 13 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 150 mm
  • Outer Dia 180 mm
  • Width 13 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 157 mm
  • Shoulder Height Dh(min) 172 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 27 kN
  • Basic Load Rating Co 53.5 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.68 Kg

Features

How Is RB15013UU Bearing Engineered for Reliability?

RB15013UU Bearing features a crossed roller design, providing excellent load distribution for combined loads.
Its steel rings and rollers offer high strength, with a basic load rating of 27 kN for dynamic applications.

The double seal design protects against contaminants, ensuring smooth operation in harsh conditions.
With a temperature range of 0-230°F, RB15013UU Bearing performs reliably in varied environments.

Its press-fit shaft mount simplifies installation, reducing setup time and effort.
The ABEC5 rating ensures precision, with options for higher accuracy in ABEC7/9 versions.

Application

Industrial Uses of RB15013UU Bearing
RB15013UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision. The double seal helps keep contaminants out, ensuring long service life in demanding environments.

Where Is RB15013UU Bearing Used?
You’ll find RB15013UU Bearing in robotic arms, where its compact size and high load capacity make it ideal for precise movements. The press-fit mounting ensures a secure connection, even in high-speed applications.

Built for Heavy-Duty Use: RB15013UU Bearing
RB15013UU Bearing handles combined loads effortlessly, making it a reliable choice for industrial automation systems. Its steel construction and ABEC5 rating ensure consistent performance under varying temperatures.

Automotive vs Aerospace: Applications of RB15013UU Bearing
In automotive testing equipment, RB15013UU Bearing offers stability and accuracy for measuring components. For aerospace applications, its lightweight design and high load rating make it suitable for navigation systems.

Perfect Fit for Automation: RB15013UU Bearing
RB15013UU Bearing works well in 3D printers, where smooth motion and minimal backlash are crucial. The required lubrication ensures quiet operation, even during prolonged use.
