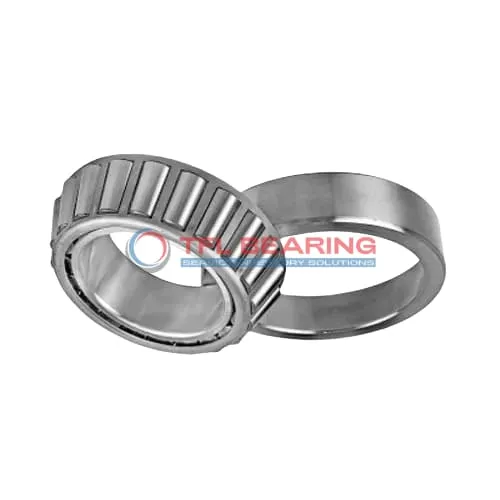

TS (Single Row Tapered Roller Bearings) (Imperial) HM237545-HM237513

TS (Single Row Tapered Roller Bearings) (Imperial) HM237545-HM237513

The HM237545-HM237513 is a single-row tapered roller bearing with a 7″ bore and 11.4163″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 219,000 lbf radially and 31,100 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where high radial and thrust loads are common.

Weighing 33.90 lb, it’s built to last while meeting RoHS and REACH standards for safety and compliance. The standard radial clearance ensures versatile performance across different setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM237545-HM237513
  • Brand TFL
  • Interchangeable Timken
  • Size 7" x 11.4163" x 2.5001"
  • Bore Dia 7"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 11.4163"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.8898"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5001"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.280"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 8.67"
  • Cone Backface Backing Diameter 8.07"
  • Cup Frontface Backing Diameter 10.71"
  • Cup Backface Backing Diameter 10.51"
  • Cage Cone Frontface Clearance 0.2"
  • Cage Cone Backface Clearance 0.2"
  • Effective Center Location -0.46"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM237545
  • Cup Part Number HM237513
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM237500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 219000 lbf
  • Static Radial Load 278000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 56900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 31100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 33.90 lb

Features

Performance Features of HM237545-HM237513 Bearing

HM237545-HM237513 Bearing is constructed with chrome steel rings and rollers, ensuring durability under heavy combined loads.
Its dynamic radial load capacity reaches 219,000 lbf, making it suitable for demanding industrial applications.

The tapered roller design of HM237545-HM237513 Bearing provides effective load distribution, reducing wear and extending service life.
With a standard radial clearance, it offers reliable performance in various operating conditions.

HM237545-HM237513 Bearing operates within a temperature range of -30° to 110°C, ensuring stability in diverse environments.
The steel cage maintains proper roller alignment, contributing to smooth and efficient operation.

Application

Industrial Uses of HM237545-HM237513 Bearing
HM237545-HM237513 Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HM237545-HM237513 Bearing Used?
You’ll find HM237545-HM237513 Bearing in agricultural machinery, supporting components like gearboxes and axles. Its inch sizing makes it a reliable choice for North American equipment manufacturers.

Built for Heavy-Duty Use: HM237545-HM237513 Bearing
HM237545-HM237513 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication. The steel cage adds stability during high-speed operations.

Automotive vs Aerospace: Applications of HM237545-HM237513 Bearing
In automotive applications, HM237545-HM237513 Bearing is often used in truck wheel hubs due to its high radial load capacity. For aerospace, it’s suitable for auxiliary systems requiring precise load handling.

Perfect Fit for Automation: HM237545-HM237513 Bearing
HM237545-HM237513 Bearing works well in conveyor systems and robotic arms, where its tapered rollers provide smooth motion. The standard radial clearance ensures consistent performance over time.
