RN-0.5x190 BF RN-5X15.3 BF/G2

RN-0.5×190 BF RN-5X15.3 BF/G2

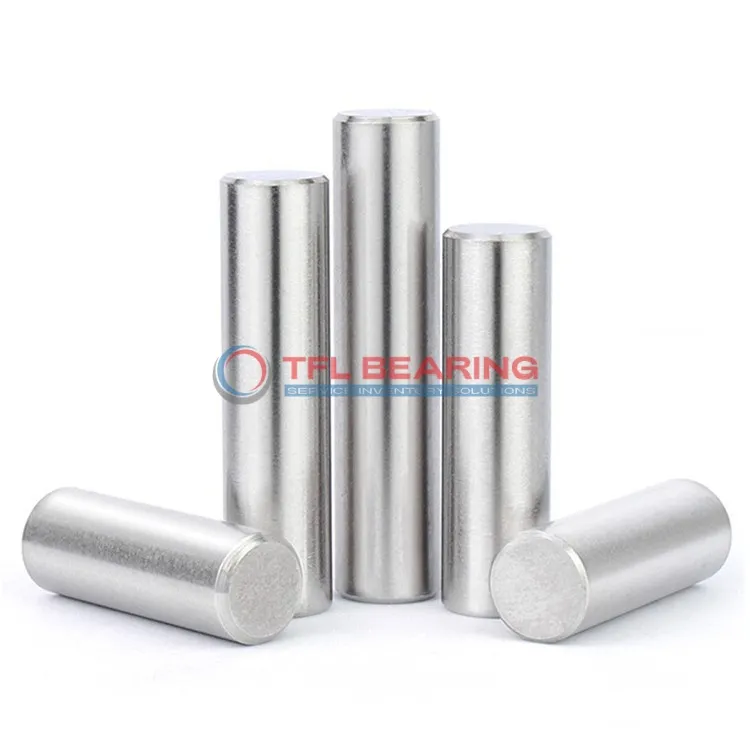

The RN-5X15.3 BF/G2 is a needle roller bearing with a 5mm diameter and 15.3mm length, crafted from durable chrome steel. Its flat ends and precise dimensions make it easy to fit into tight spaces.

With a hardness rating of HRC60-65, it handles heavy loads while maintaining smooth operation. The roller’s roundness of 0.5um ensures minimal friction during use.

This bearing is interchangeable with INA models, offering a reliable alternative for replacements. Ideal for applications like automotive transmissions or industrial machinery where space is limited.

Compliant with RoHS standards, it’s a safe and durable choice. The G2 rating confirms its high-quality performance for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RN-5X15.3 BF/G2
  • Brand TFL
  • Interchangeable INA
  • Roller Diameter 5 mm
  • Roller Length 15.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Material Chrome Steel
  • RoHS Compliant
  • Rating G2
  • Length Tolerance 0 to -0.27 mm
  • Hardness HRC60-65
  • Ends Type Flat
  • Roundness 0.5um
  • VDWL 2um
  • Rsmax Axial 1 mm
  • Rsmax Radial 0.8 mm
  • Rsmin 0.1 mm

Features

How Does RN-5X15.3 BF/G2 Bearing Reduce Friction?

RN-5X15.3 BF/G2 Bearing features precision-ground chrome steel rollers, ensuring minimal friction during operation.
The needle roller design maximises load distribution, enhancing efficiency and reducing wear.
With a hardness rating of HRC60-65, it maintains durability even under continuous use.
Its tight roundness tolerance of 0.5um ensures smooth and consistent performance.

Application

Industrial Uses of RN-5X15.3 BF/G2 Bearing
RN-5X15.3 BF/G2 Bearing is commonly used in compact industrial machinery, such as gearboxes and pumps, where space is limited but high load capacity is needed. Its needle roller design ensures efficient performance in tight spaces.

In automotive applications, RN-5X15.3 BF/G2 Bearing fits well in transmission systems and steering mechanisms, providing smooth motion with minimal friction. The chrome steel material adds durability for long-term use.

For automation equipment, RN-5X15.3 BF/G2 Bearing works reliably in robotic arms and precision tools, thanks to its flat ends and consistent roundness. The G2 rating ensures it meets high accuracy standards.

In consumer electronics, RN-5X15.3 BF/G2 Bearing can be found in small motors and printers, where its compact size and low noise operation are beneficial. The metric dimensions make it easy to integrate into various designs.
