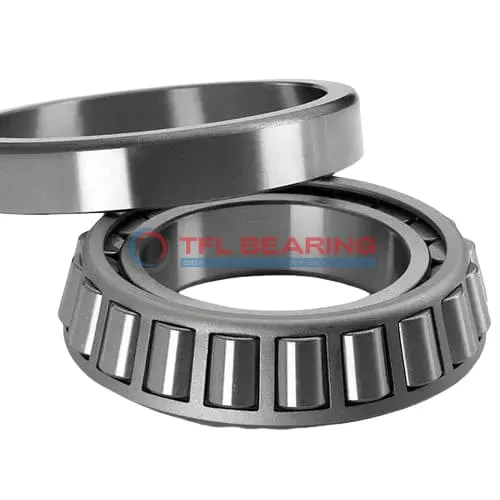

TS (Single Row Tapered Roller Bearings) (Imperial) HM133444-HM133416

TS (Single Row Tapered Roller Bearings) (Imperial) HM133444-HM133416

The HM133444-HM133416 is a single-row tapered roller bearing with a 6.187″ bore and 9.9375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 135,000 lbf radially and 15,800 lbf thrust, suitable for heavy-duty applications.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery, gearboxes, or construction equipment where robust performance is needed.

Weighing 27.3 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures reliable operation in various conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM133444-HM133416
  • Brand TFL
  • Interchangeable Timken
  • Size 6.187" x 9.9375" x 2.5"
  • Bore Dia 6.187"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.9375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 7.56"
  • Cone Backface Backing Diameter 6.73"
  • Cup Frontface Backing Diameter 9.21"
  • Cup Backface Backing Diameter 9.06"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.68"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM133444
  • Cup Part Number HM133416
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM133400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 135000 lbf
  • Static Radial Load 233000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 35000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 15800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 27.3 lb

Features

Performance Features of HM133444-HM133416 Bearing

HM133444-HM133416 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 135,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is HM133444-HM133416 Bearing Engineered for Reliability?

HM133444-HM133416 Bearing features precise cone and cup dimensions, ensuring smooth operation under combined loads.
The chrome steel construction provides excellent resistance to wear and fatigue.
Its standard radial clearance options allow for flexibility in different applications.
The bearing’s ABEC-1 rating ensures consistent performance in industrial settings.

Designed for Durability: HM133444-HM133416 Bearing

HM133444-HM133416 Bearing’s single-row tapered roller design efficiently handles both radial and thrust loads.
The steel cage maintains roller spacing, reducing friction and extending service life.
With a static radial load capacity of 233,000 lbf, it excels in demanding environments.
Proper lubrication ensures optimal performance and longevity.

Application

Industrial Uses of HM133444-HM133416 Bearing
HM133444-HM133416 Bearing is commonly used in heavy machinery like mining equipment and construction gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, HM133444-HM133416 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a straightforward replacement for Timken equivalents.

For industrial fans and pumps, HM133444-HM133416 Bearing’s open design allows easy lubrication, extending service life in continuous operation. The steel cage adds extra strength, making it suitable for high-vibration environments.

Key Fields for HM133444-HM133416 Bearing
HM133444-HM133416 Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its robust design withstands dusty and uneven terrain. The standard radial clearance ensures smooth rotation under varying loads.

In material handling systems, HM133444-HM133416 Bearing supports conveyor rollers and lifting equipment, thanks to its high dynamic load capacity. The ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Why Is HM133444-HM133416 Bearing Essential in Machinery?
HM133444-HM133416 Bearing plays a key role in paper mill rollers, where its tapered rollers manage both radial and axial forces. The chrome steel rollers resist wear, reducing downtime for maintenance.

For railway applications, HM133444-HM133416 Bearing is used in axle boxes, offering stability and load distribution at high speeds. Its temperature range suits both cold and moderate climates.

Perfect Fit for Automation: HM133444-HM133416 Bearing
HM133444-HM133416 Bearing works well in robotic arms and assembly line equipment, where precise movement and load handling are crucial. The steel cage ensures quiet operation in automated settings.

In packaging machinery, HM133444-HM133416 Bearing’s combined load capability supports high-speed sorting and sealing processes. Its inch measurements simplify integration into existing systems.
