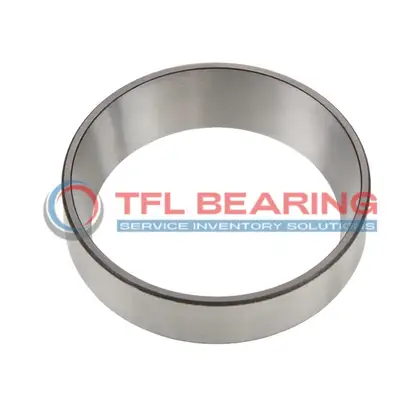

4535 Single Cups (Imperial)

4535 Single Cups (Imperial)

The 4535 is a single cup tapered roller bearing with an outer diameter of 4.125 inches and a width of 1.3125 inches, crafted from sturdy chrome steel. It fits well with Timken models, making it a versatile replacement option.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general applications.

The cup features precise tolerances and a clear radius of 0.13 inches for easy installation. It’s part of the 4500 series, compatible with various bearing part numbers like 4553-4535.

Ideal for industrial machinery or automotive systems where tapered roller bearings are needed. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 4535
  • Brand TFL
  • Interchangeable Timken
  • Size 3.54" x 4.125" x 1.3125"
  • Outer Dia 4.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.3125"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 3.94"
  • Cup Backface Backing Diameter 3.54"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 4553-4535 , 4559-4535 , 4580-4535 , 4595-4535
  • Cups Type Standard
  • Series 4500
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 4535 Bearing for Precision Tasks?

4535 Bearing is crafted from chrome steel, offering durability and resistance to wear in tapered roller applications.
Its precise outer diameter tolerance of +0.001″ to 0 ensures a snug fit, enhancing performance.

The standard cup design simplifies installation, making it compatible with various bearing part numbers.
With a temperature range of -30° to 110°C, it performs reliably in diverse conditions.

The ABEC-1 rating confirms its consistent quality for general precision tasks.
Its interchangeable design with Timken bearings adds versatility to its usage.

Application

Industrial Uses of 4535 Single Cups
4535 Single Cups are commonly used in heavy machinery, such as construction equipment and agricultural gear, where their tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

What Makes 4535 Single Cups a Preferred Choice?
In automotive applications, 4535 Single Cups fit well in wheel hubs and differential systems, providing reliable performance under varying loads. Their inch sizing makes them compatible with many North American vehicle models.

Built for Heavy-Duty Use: 4535 Single Cups
For industrial conveyor systems, 4535 Single Cups offer smooth operation and long service life, thanks to their precise tolerances and robust material. The standard cup design simplifies maintenance and replacement.

Automotive vs Industrial: Applications of 4535 Single Cups
In automotive settings, 4535 Single Cups excel in axle assemblies, while in industrial settings, they support heavy loads in gearboxes and pulleys. Their versatility makes them a go-to choice for many engineers.
