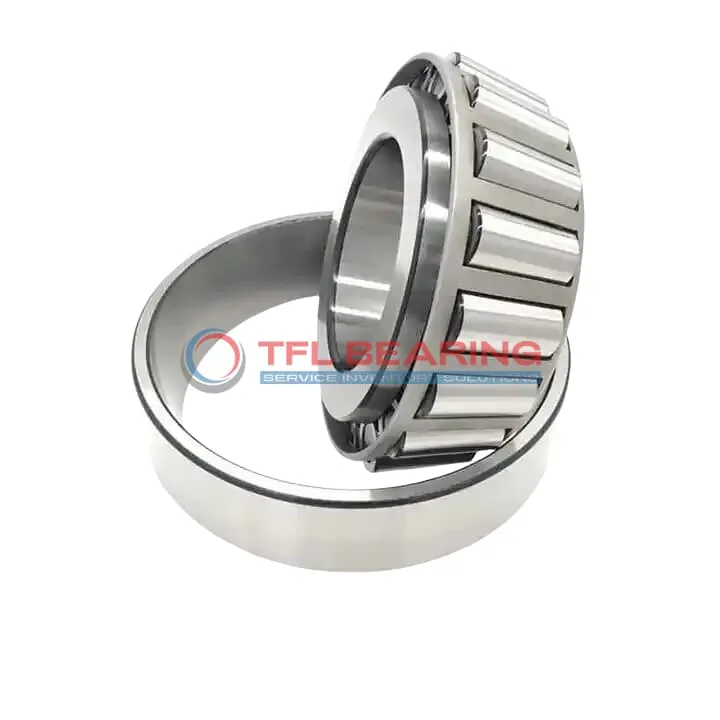

TS (Single Row Tapered Roller Bearings) (Imperial) HM133436-HM133416

TS (Single Row Tapered Roller Bearings) (Imperial) HM133436-HM133416

The HM133436-HM133416 is a single-row tapered roller bearing with a 5.9″ bore and 9.9″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 135,000 lbf radially and 15,800 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance under stress. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery or automotive applications where high load capacity is needed.

Weighing 29.4 lb, it’s built for durability and long service life. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM133436-HM133416
  • Brand TFL
  • Interchangeable Timken
  • Size 5.9042" x 9.9375" x 2.5"
  • Bore Dia 5.9042"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.9375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 7.38"
  • Cone Backface Backing Diameter 6.65"
  • Cup Frontface Backing Diameter 9.21"
  • Cup Backface Backing Diameter 9.06"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.68"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM133436
  • Cup Part Number HM133416
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM133400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 135000 lbf
  • Static Radial Load 233000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 35000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 15800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 29.4 lb

Features

How Does HM133436-HM133416 Bearing Handle Combined Loads?

HM133436-HM133416 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 135,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Why Choose HM133436-HM133416 Bearing for Heavy-Duty Applications?

HM133436-HM133416 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides durability and resistance to wear under high stress.
Its dynamic thrust rating of 15,800 lbf ensures stable performance in demanding conditions.
The standard radial clearance allows for flexibility in different operational setups.

Engineered for Reliability: HM133436-HM133416 Bearing

HM133436-HM133416 Bearing’s precise cone and cup design ensures smooth operation under heavy loads.
The steel cage maintains roller positioning, enhancing efficiency and reducing maintenance needs.
With a static radial load capacity of 233,000 lbf, it excels in high-stress environments.
Its ABEC-1 rating guarantees consistent performance for industrial applications.

Material Composition of HM133436-HM133416 Bearing

HM133436-HM133416 Bearing uses chrome steel for both rings and rollers, ensuring strength and durability.
The steel cage provides stability, keeping the rollers aligned during operation.
This material combination resists wear, making it ideal for long-term use.
The bearing’s construction meets RoHS and REACH compliance standards for safety and environmental friendliness.

Performance Features of HM133436-HM133416 Bearing

HM133436-HM133416 Bearing is designed to handle dynamic radial loads up to 135,000 lbf.
Its tapered roller construction distributes loads evenly, reducing stress on individual components.
The bearing operates efficiently within a temperature range of -30° to 110°C.
Standard radial clearance options provide versatility for different application requirements.

Application

Industrial Uses of HM133436-HM133416 Bearing
HM133436-HM133416 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, HM133436-HM133416 Bearing supports axle systems, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a straightforward replacement for Timken bearings in many vehicles.

For industrial fans and pumps, HM133436-HM133416 Bearing’s open design allows for easy lubrication, extending service life. The standard radial clearance options offer flexibility for different operational needs.

What Makes HM133436-HM133416 Bearing a Preferred Choice?
HM133436-HM133416 Bearing is ideal for agricultural machinery, where its robust design withstands dirt and debris. The steel cage adds extra strength, making it suitable for rough conditions.

In material handling systems, HM133436-HM133416 Bearing ensures smooth operation of conveyor belts and rollers. Its ABEC-1 rating provides a good balance of precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: HM133436-HM133416 Bearing
HM133436-HM133416 Bearing excels in mining equipment, handling extreme loads with ease. The tapered rollers distribute stress evenly, reducing wear over time.

For railway applications, HM133436-HM133416 Bearing’s temperature tolerance ensures reliability in varying climates. Its compatibility with Timken parts simplifies maintenance and replacements.

Automotive vs Aerospace: Applications of HM133436-HM133416 Bearing
In automotive drivetrains, HM133436-HM133416 Bearing offers dependable performance for long-haul vehicles. The high static load capacity makes it a solid choice for heavy trucks.

For aerospace ground support equipment, HM133436-HM133416 Bearing provides the necessary precision and strength. Its compliance with RoHS and REACH standards ensures environmental safety.
