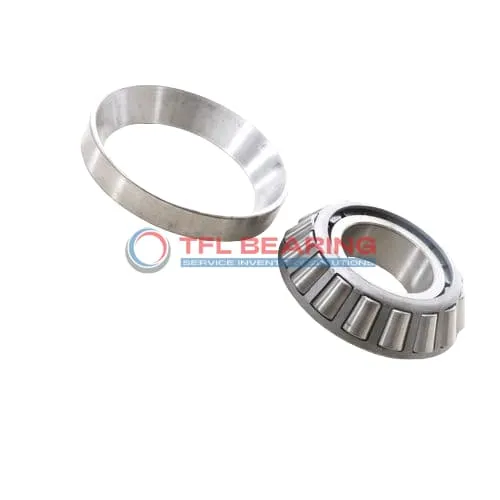

TS (Single Row Tapered Roller Bearings) (Imperial) 435-432

TS (Single Row Tapered Roller Bearings) (Imperial) 435-432

The 435-432 is a single-row tapered roller bearing with a 1.75″ bore and 3.75″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 28500 lbf radially and 3600 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 435-432
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 3.75" x 1.0938"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1772"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0938"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 2.01"
  • Cone Backface Backing Diameter 2.05"
  • Cup Frontface Backing Diameter 3.46"
  • Cup Backface Backing Diameter 3.27"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.36"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 435
  • Cup Part Number 432
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 435
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 28500 lbf
  • Static Radial Load 32400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.1 lb

Features

How Is 435-432 Bearing Engineered for Reliability?

435-432 Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 28,500 lbf, making it suitable for heavy-duty applications.
The tapered roller design distributes loads evenly, reducing stress and extending service life.
With a standard radial clearance, it offers reliable performance in various operating conditions.

What Makes 435-432 Bearing Suitable for High-Temperature Applications?

435-432 Bearing operates efficiently within a temperature range of -30° to 110°C.
The chrome steel construction resists thermal deformation, maintaining performance in demanding environments.
Its open design allows for easy lubrication, ensuring smooth operation even under high heat.
This makes it a dependable choice for industrial and automotive applications.

Designed for Durability: 435-432 Bearing

435-432 Bearing is built with a single-row tapered roller design, ideal for handling combined loads.
The steel cage keeps rollers aligned, minimising wear and enhancing longevity.
Its precise tolerances ensure consistent performance, even under heavy radial and thrust loads.
With an ABEC-1 rating, it balances precision and durability for various uses.

Steel vs Ceramic Bearings: Strengths of 435-432 Bearing

435-432 Bearing uses chrome steel for both rings and rollers, offering excellent strength and wear resistance.
This material choice ensures reliable performance under high dynamic and static loads.
The steel cage further enhances durability, making it a cost-effective solution for industrial applications.
Its robust construction makes it a preferred choice over ceramic options in heavy-load scenarios.

Application

Industrial Uses of 435-432 Bearing
The 435-432 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effortlessly. Its chrome steel construction ensures durability even in tough working conditions.

Where Is 435-432 Bearing Used?
You’ll often find 435-432 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise imperial sizing makes it a reliable choice for older or custom vehicle models.

Built for Heavy-Duty Use: 435-432 Bearing
435-432 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 435-432 Bearing
In automotive systems, 435-432 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary equipment. Its temperature range and ABEC-1 rating make it versatile for both fields.

Perfect Fit for Automation: 435-432 Bearing
435-432 Bearing works well in conveyor systems and robotic arms, thanks to its smooth operation under combined loads. The standard radial clearance ensures consistent performance in automated setups.
