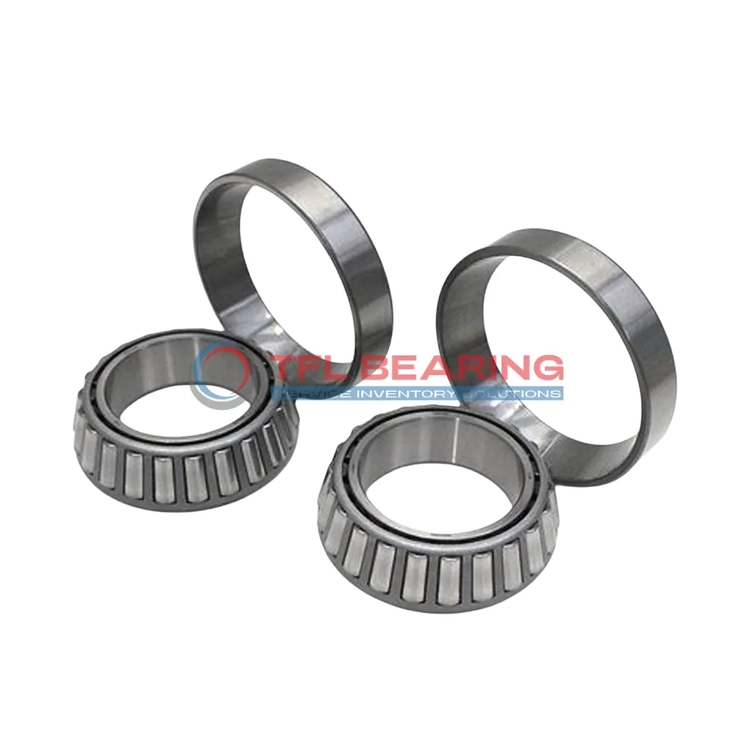

TS (Single Row Tapered Roller Bearings) (Imperial) H715336-H715313W

TS (Single Row Tapered Roller Bearings) (Imperial) H715336-H715313W

The H715336-H715313W is a single-row tapered roller bearing with a 2.5″ bore and 5.375″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 71700 lbf radially and 15100 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in industrial machinery, gearboxes, or automotive applications where robust performance is needed.

Weighing 7.7 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number H715336-H715313W
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5" x 5.375" x 1.9375"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.9375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.94"
  • Cone Backface Backing Diameter 3.46"
  • Cup Frontface Backing Diameter 5.31"
  • Cup Backface Backing Diameter 4.69"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.14"
  • Effective Center Location -0.34"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number H715336
  • Cup Part Number H715313W
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series H715300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 71700 lbf
  • Static Radial Load 91000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 18600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 15100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.7 lb

Features

How Is H715336-H715313W Bearing Engineered for Reliability?

H715336-H715313W Bearing features chrome steel rings and rollers, providing strong resistance to combined loads.
Its dynamic radial load capacity reaches 71,700 lbf, ensuring reliable performance in demanding applications.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

H715336-H715313W Bearing’s standard radial clearance offers flexibility for different installation needs.
Its precision engineering ensures smooth operation and long-term durability.

Application

Industrial Uses of H715336-H715313W Bearing
H715336-H715313W Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, H715336-H715313W Bearing fits well in wheel hubs and drivetrains, providing reliable performance under radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, H715336-H715313W Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The standard radial clearance offers flexibility for various operational conditions.

Where Is H715336-H715313W Bearing Used?
You’ll often find H715336-H715313W Bearing in agricultural machinery, where its robust design handles rough terrain and heavy loads. The steel cage adds extra strength, making it suitable for prolonged use.

In mining equipment, H715336-H715313W Bearing’s ability to manage combined loads ensures smooth operation in harsh conditions. The ABEC-1 rating provides a good balance of precision and cost-effectiveness for these applications.

Built for Heavy-Duty Use: H715336-H715313W Bearing
H715336-H715313W Bearing excels in forestry equipment, where its tapered rollers distribute loads evenly. The chrome steel rollers and rings resist wear, even in dusty or wet environments.

For railway applications, H715336-H715313W Bearing’s dynamic radial load capacity ensures reliable performance under constant vibration. The standard lubrication requirement simplifies maintenance in remote locations.

Automotive vs Aerospace: Applications of H715336-H715313W Bearing
In automotive settings, H715336-H715313W Bearing is ideal for axles and differentials, thanks to its combined load capacity. The imperial measurements align with standard US automotive designs.

For aerospace ground support equipment, H715336-H715313W Bearing’s temperature range and durability make it a practical choice. However, its ABEC-1 rating limits its use in high-precision flight components.
