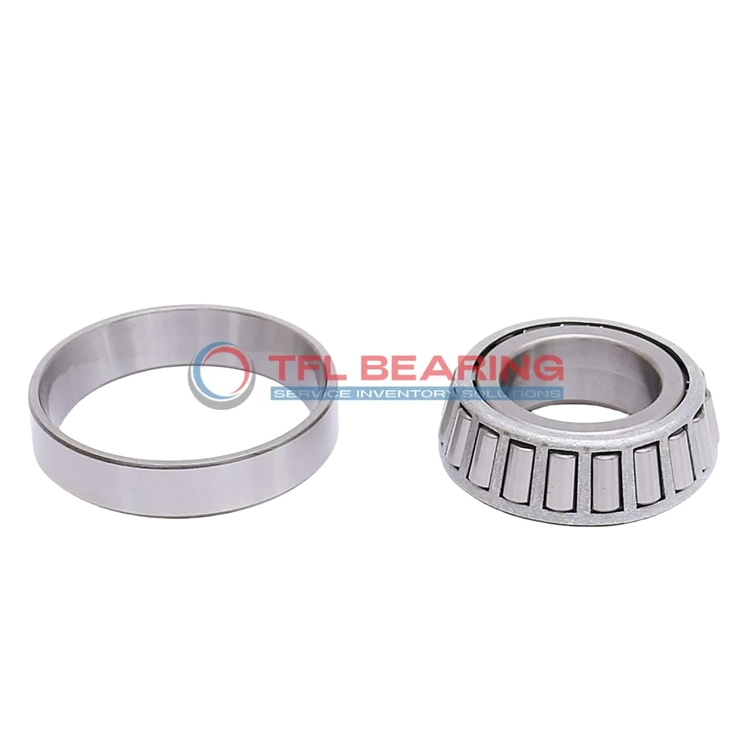

TS (Single Row Tapered Roller Bearings) (Imperial) 3196-3130

TS (Single Row Tapered Roller Bearings) (Imperial) 3196-3130

The 3196-3130 is a single-row tapered roller bearing with a 1.3125″ bore and 2.8593″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 21300 lbf radially and 3140 lbf in thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.3 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3196-3130
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.8593" x 1.1876"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8593"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.181"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1876"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.59"
  • Cone Backface Backing Diameter 1.85"
  • Cup Frontface Backing Diameter 2.68"
  • Cup Backface Backing Diameter 2.48"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3196
  • Cup Part Number 3130
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3100
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 21300 lbf
  • Static Radial Load 22800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5520 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3140 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.3 lb

Features

Performance Features of 3196-3130 Bearing

3196-3130 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 21,300 lbf, making it suitable for heavy-duty applications.

The single-row tapered roller design ensures smooth operation and efficient load distribution.
With a standard radial clearance, it provides reliable performance in various conditions.

3196-3130 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing wear and extending service life.

Application

Industrial Uses of 3196-3130 Bearing
3196-3130 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, 3196-3130 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a practical choice for North American vehicle models.

For industrial conveyor systems, 3196-3130 Bearing’s open design allows for easy lubrication, extending service life in high-use environments. The steel cage adds stability, reducing wear over time.

What Makes 3196-3130 Bearing a Preferred Choice?
3196-3130 Bearing stands out in applications like gearboxes and power transmission systems, where its tapered rollers manage both radial and thrust loads smoothly. The ABEC-1 rating ensures consistent performance.

In mining equipment, 3196-3130 Bearing’s robust design handles extreme loads and harsh conditions. The standard radial clearance option provides flexibility for different operational needs.

For maintenance teams, 3196-3130 Bearing’s compatibility with Timken models simplifies replacements, reducing downtime. Its temperature range also suits both hot and cold environments.

Built for Heavy-Duty Use: 3196-3130 Bearing
3196-3130 Bearing excels in forestry machinery, where its tapered rollers withstand heavy shocks and vibrations. The chrome steel rollers enhance longevity even in abrasive conditions.

In material handling systems, 3196-3130 Bearing’s single-row design offers easy installation and reliable operation. The inch measurements align with many industrial standards.

For pump applications, 3196-3130 Bearing’s dynamic load capacity ensures smooth rotation under pressure. The steel cage maintains alignment, reducing friction and heat buildup.
