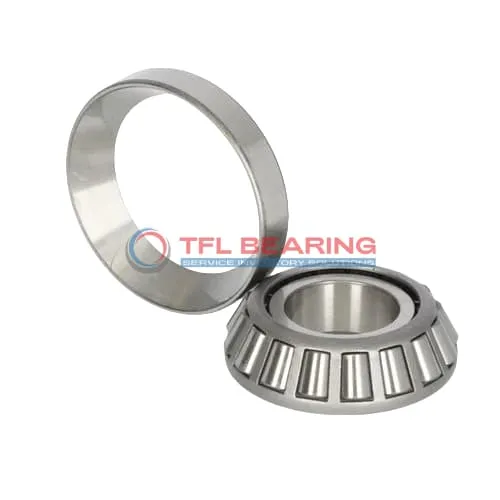

TS (Single Row Tapered Roller Bearings) (Imperial) EE737181X-737262

TS (Single Row Tapered Roller Bearings) (Imperial) EE737181X-737262

The EE737181X-737262 is a single-row tapered roller bearing with an 18″ bore and 26″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 396,000 lbf radially and 65,700 lbf thrust, making it suitable for heavy-duty applications.

Its pin-type cage design ensures smooth operation, while the open construction allows for easy lubrication. The bearing operates reliably in temperatures from -30°C to 110°C, with standard radial clearance options available.

This model is interchangeable with Timken bearings, offering a practical replacement choice. Ideal for industrial machinery, large gearboxes, or construction equipment where high load capacity is needed.

Weighing 209.70 lb, it’s built to last with ABEC-1 precision and complies with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE737181X-737262
  • Brand TFL
  • Interchangeable Timken
  • Size 18" x 26" x 3.625"
  • Bore Dia 18"
  • Bore Dia Tolerance +0.002" to 0
  • Outer Dia 26"
  • Outer Dia Tolerance +0.003" to 0
  • Cone Width 3.593"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.625"
  • Width Tolerance +0.015" to -0.015"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 22.44"
  • Cone Backface Backing Diameter 19.49"
  • Cup Frontface Backing Diameter 24.45"
  • Cup Backface Backing Diameter 24.21"
  • Cage Cone Frontface Clearance 0.16"
  • Cage Cone Backface Clearance 0.48"
  • Effective Center Location 0.66"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE737181X
  • Cup Part Number 737262
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 737000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 396000 lbf
  • Static Radial Load 816000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 103000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 65700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 209.70 lb

Features

Engineered for Precision: EE737181X-737262 Bearing

EE737181X-737262 Bearing features a single-row tapered roller design, ideal for handling combined loads with precision.
Its chrome steel construction ensures durability and resistance to wear in demanding industrial applications.

The bearing’s dynamic radial load capacity reaches 396,000 lbf, making it suitable for heavy-duty machinery.
With a static radial load rating of 816,000 lbf, it provides reliable performance under extreme conditions.

EE737181X-737262 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its pin-type cage maintains roller alignment, ensuring smooth operation and extended service life.

The standard radial clearance option allows for flexibility in various applications.
EE737181X-737262 Bearing is RoHS and REACH compliant, meeting international environmental standards.

Application

Industrial Uses of EE737181X-737262 Bearing
EE737181X-737262 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The large imperial sizing makes it suitable for robust applications requiring high load capacity.

Where Is EE737181X-737262 Bearing Used?
You’ll often find EE737181X-737262 Bearing in industrial gearboxes and large conveyor systems, thanks to its chrome steel construction and pin-type cage for durability. Its open design simplifies lubrication, which is essential for continuous operation.

Built for Heavy-Duty Use: EE737181X-737262 Bearing
EE737181X-737262 Bearing excels in agricultural machinery, such as tractors and harvesters, where its high static radial load rating ensures reliability. The standard radial clearance allows for smooth performance even under varying temperatures.

Automotive vs Aerospace: Applications of EE737181X-737262 Bearing
In automotive applications, EE737181X-737262 Bearing supports heavy axles and drivetrains, while in aerospace, it’s used in landing gear systems for its strength. The ABEC-1 rating balances precision and cost-effectiveness for these demanding fields.

Essential Roles of EE737181X-737262 Bearing
EE737181X-737262 Bearing is a go-to choice for railway freight cars, where its dynamic thrust rating handles shifting loads during transit. The inch measurements make it compatible with North American rail standards.
