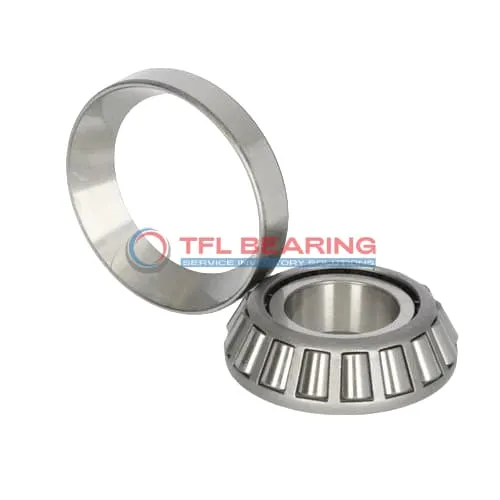

TS (Single Row Tapered Roller Bearings) (Imperial) EE737181-737260

TS (Single Row Tapered Roller Bearings) (Imperial) EE737181-737260

The EE737181-737260 is a single-row tapered roller bearing with an 18″ bore and 26″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 396,000 lbf radially and 65,700 lbf thrust, making it robust for heavy-duty use.

Its pin-type cage design ensures smooth operation, while the open seal allows for easy lubrication. The bearing operates well in temperatures from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like large machinery or construction equipment where high load capacity is needed.

Weighing 203.50 lb, it’s a substantial unit designed for durability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE737181-737260
  • Brand TFL
  • Interchangeable Timken
  • Size 18" x 26" x 3.5937"
  • Bore Dia 18"
  • Bore Dia Tolerance +0.002" to 0
  • Outer Dia 26"
  • Outer Dia Tolerance +0.003" to 0
  • Cone Width 3.375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.4687"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5937"
  • Width Tolerance +0.015" to -0.015"
  • Cone Backface ToClear Radius 0.410"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 22.44"
  • Cone Backface Backing Diameter 19.84"
  • Cup Frontface Backing Diameter 24.34"
  • Cup Backface Backing Diameter 24.21"
  • Cage Cone Frontface Clearance 0.38"
  • Cage Cone Backface Clearance 0.48"
  • Effective Center Location 0.66"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE737181
  • Cup Part Number 737260
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 737000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 396000 lbf
  • Static Radial Load 816000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 103000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 65700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 203.50 lb

Features

How Is EE737181-737260 Bearing Engineered for Reliability?

EE737181-737260 Bearing features chrome steel rings and rollers, ensuring strong resistance to combined loads.
Its dynamic radial load capacity reaches 396,000 lbf, making it suitable for heavy-duty applications.
The pin-type cage maintains roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Structural Advantages of EE737181-737260 Bearing

EE737181-737260 Bearing’s tapered roller design efficiently handles both radial and thrust loads.
The chrome steel construction enhances durability, even under extreme stress.
Its standard radial clearance options allow for flexibility in different applications.
Weighing 203.50 lb, it is built for robust performance in industrial settings.

Why Choose EE737181-737260 Bearing for Precision Tasks?

EE737181-737260 Bearing offers precise alignment with its pin-type cage and tapered rollers.
The ABEC-1 rating ensures consistent performance in demanding environments.
With a static radial load capacity of 816,000 lbf, it provides long-term reliability.
Its lubrication requirement ensures smooth operation over extended periods.

Application

Industrial Uses of EE737181-737260 Bearing
EE737181-737260 Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The large imperial sizing makes it suitable for robust applications requiring durability.

What Makes EE737181-737260 Bearing a Preferred Choice?
In industrial gearboxes, EE737181-737260 Bearing provides reliable performance under high radial and thrust loads. Its chrome steel construction ensures long service life even in demanding environments.

Built for Heavy-Duty Use: EE737181-737260 Bearing
EE737181-737260 Bearing excels in applications like steel mills and paper processing plants, where its pin-type cage offers stability. The standard radial clearance allows for smooth operation in varying temperature conditions.

Automotive vs Aerospace: Applications of EE737181-737260 Bearing
In automotive axles, EE737181-737260 Bearing supports heavy loads, while in aerospace, its precision meets stringent performance requirements. The open design simplifies lubrication and maintenance.

Essential Roles of EE737181-737260 Bearing
EE737181-737260 Bearing is vital in wind turbine systems, where its dynamic load capacity ensures consistent energy production. The ABEC-1 rating balances performance and cost for large-scale installations.
