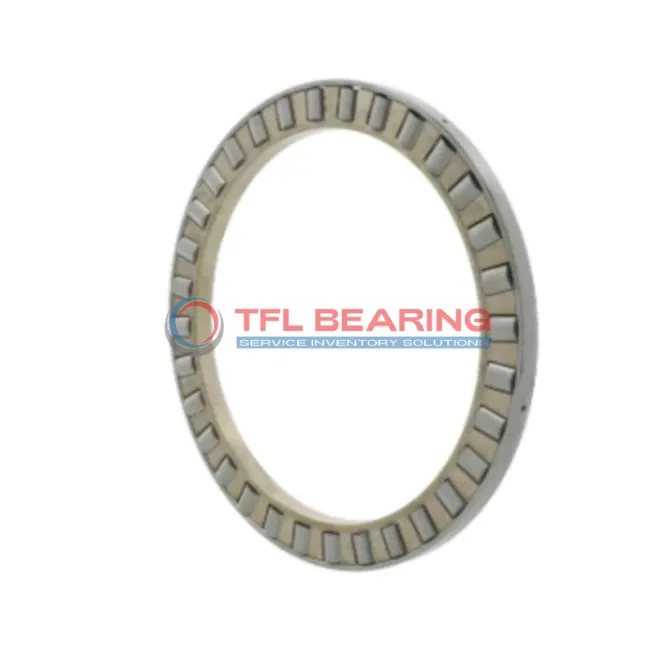

Single Row Cylindrical Roller Thrust Bearings assembly K 81240 M

Single Row Cylindrical Roller Thrust Bearings assembly K 81240 M

The K 81240 M is a single-row cylindrical roller thrust bearing with a 200mm bore and 280mm outer diameter, built to handle heavy loads. Made from chrome steel, it offers durability and can manage dynamic radial loads up to 162000 lbf.

Its machined brass cage ensures smooth operation, even at speeds up to 1000 RPM. The bearing works in temperatures from -30°C to 110°C, making it suitable for various industrial conditions.

This model is interchangeable with SKF bearings, providing a reliable replacement option. Ideal for heavy machinery or equipment where high thrust loads are common.

Weighing 5.39kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81240 M
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 200 mm
  • Bore Dia Tolerance +0.10mm to +0.39mm
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.92mm to -1.73mm
  • Diameter Roller 26 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 215 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 273 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 162000 lbf
  • Static Radial Load 697500 lbf
  • Max Speed 1000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.39 kg
  • Shaft Washer WS 81240
  • Housing Washer GS 81240

Features

Why Choose K 81240 M Bearing for Precision Tasks?

K 81240 M Bearing features a single row cylindrical roller design, ideal for handling high thrust loads with precision.
Its chrome steel rollers and machined brass cage ensure smooth operation and reduced friction.

With a dynamic radial load capacity of 162,000 lbf, K 81240 M Bearing excels in demanding applications.
The bearing maintains performance within a temperature range of -30° to 110°C, suitable for various environments.

K 81240 M Bearing’s robust construction and high load capacity make it a reliable choice for industrial use.
Its interchangeable design with SKF bearings ensures easy replacement and compatibility.

Application

Key Fields for K 81240 M Bearing
K 81240 M Bearing is commonly used in heavy industrial equipment like hydraulic presses and large gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The machined brass cage ensures smooth operation even under demanding conditions.

Where Is K 81240 M Bearing Used?
In automotive applications, K 81240 M Bearing supports components such as heavy-duty transmissions and differential systems. Its robust construction and precise tolerances make it ideal for high-load scenarios.

Built for Heavy-Duty Use: K 81240 M Bearing
K 81240 M Bearing excels in construction machinery, particularly in cranes and excavators, where its durability and load capacity are critical. The chrome steel rollers provide long-lasting performance in tough environments.

Light-Duty vs Heavy-Duty: Best Uses for K 81240 M Bearing
For light-duty applications, K 81240 M Bearing might be overkill, but it shines in heavy machinery like mining equipment. Its large bore and outer diameter make it suitable for substantial axial loads.

Industrial Uses of K 81240 M Bearing
K 81240 M Bearing is a reliable choice for wind turbine systems, where it handles the axial loads generated by rotor blades. The temperature range ensures performance in various weather conditions.
