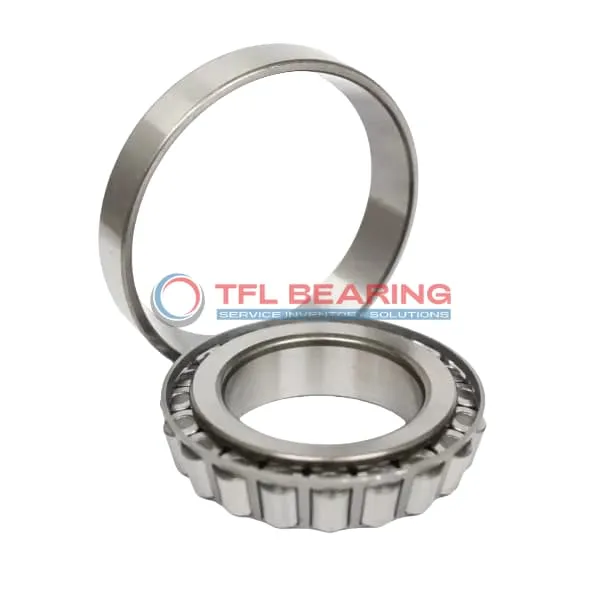

TS (Single Row Tapered Roller Bearings) (Imperial) EE114080-114160

The EE114080-114160 is a single-row tapered roller bearing with an 8″ bore and 16″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 274,000 lbf radially and 97,000 lbf thrust, making it robust for heavy-duty use.

Its pin-type cage design ensures smooth operation, while the open seal allows easy lubrication. The bearing works in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like large machinery or construction equipment where high load capacity is needed.

Weighing 103.30 lb, it’s built to last while meeting RoHS and REACH standards for safety and environmental compliance.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number EE114080-114160
Brand TFL
Interchangeable Timken
Size 8" x 16" x 3.625"
Bore Dia 8"
Bore Dia Tolerance +0.001" to 0
Outer Dia 16"
Outer Dia Tolerance +0.002" to 0
Cone Width 3.375"
Cone Width Tolerance +0.003" to -0.01
Cup Width 2.25"
Cup Width Tolerance +0.002" to -0.01
Width 3.625"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.25"
Cup Backface ToClear Radius 0.250"
Cone Frontface Backing Diameter 10.51"
Cone Backface Backing Diameter 9.69"
Cup Frontface Backing Diameter 14.78"
Cup Backface Backing Diameter 13.74"
Cage Cone Frontface Clearance 0.44"
Cage Cone Backface Clearance 0.74"
Effective Center Location 0.98"
System of Measurement Inch
Type Bearing
Cone Part Number EE114080
Cup Part Number 114160
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 114000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Pin-Type
Dynamic Radial Load 274000 lbf
Static Radial Load 328000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 71000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 97000 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 103.30 lb

Features

Performance Features of EE114080-114160 Bearing

EE114080-114160 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 274,000 lbf, making it suitable for heavy-duty applications.
The pin-type cage ensures proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is EE114080-114160 Bearing Engineered for Reliability?

EE114080-114160 Bearing features a single-row tapered roller design, optimised for both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance allows for smooth operation.
Its dynamic thrust rating of 97,000 lbf ensures consistent performance under pressure.
The bearing requires lubrication, but its robust design minimises maintenance needs.

Built for Durability: EE114080-114160 Bearing

EE114080-114160 Bearing’s chrome steel rollers and rings provide excellent wear resistance.
The pin-type cage maintains roller alignment, extending the bearing’s service life.
With a static radial load capacity of 328,000 lbf, it handles heavy loads with ease.
Its ABEC-1 rating ensures reliable precision in industrial applications.

Steel vs Ceramic Bearings: Strengths of EE114080-114160 Bearing

EE114080-114160 Bearing uses chrome steel for both rollers and rings, offering a balance of strength and cost-effectiveness.
The tapered roller design efficiently manages combined loads, with a dynamic radial rating of 71,000 lbf.
Its standard radial clearance provides smooth operation, while the pin-type cage reduces friction.
The bearing’s wide temperature range makes it versatile for various environments.

Application

Industrial Uses of EE114080-114160 Bearing
EE114080-114160 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in harsh working conditions.

What Makes EE114080-114160 Bearing a Preferred Choice?
In automotive applications, EE114080-114160 Bearing supports wheel hubs and axles, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: EE114080-114160 Bearing
For industrial fans and gearboxes, EE114080-114160 Bearing offers stable operation thanks to its pin-type cage and precise tolerances. The open design allows for easy lubrication, extending service life in continuous-use scenarios.

Automotive vs Aerospace: Applications of EE114080-114160 Bearing
In automotive systems, EE114080-114160 Bearing excels in drivetrain components, while its robust design also suits aerospace ground support equipment. The ABEC-1 rating ensures consistent performance across different environments.

Essential Roles of EE114080-114160 Bearing
EE114080-114160 Bearing is ideal for agricultural machinery, where its high static radial load capacity handles uneven terrain stresses. The standard radial clearance options provide flexibility for various installation requirements.
