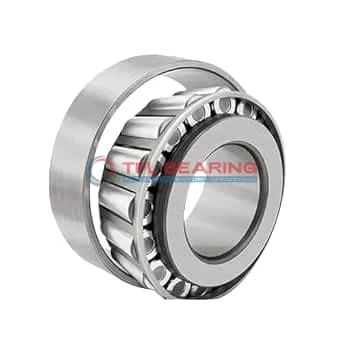

TS (Single Row Tapered Roller Bearings) (Imperial) 23100-23250X

TS (Single Row Tapered Roller Bearings) (Imperial) 23100-23250X

The 23100-23250X is a single-row tapered roller bearing with a 1″ bore and 2.5″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 12300 lbf radially and 3990 lbf in thrust, suitable for moderate-speed applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 0.7lb, it balances strength and compactness. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance allows for easy installation, with options for C3, C4, or C5 clearances if needed. Its ABEC-1 rating ensures dependable performance for general applications.

The tapered roller design provides effective load distribution, enhancing longevity. Perfect for maintenance or upgrades in automotive and heavy equipment settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23100-23250X
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.5" x 0.854"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.845"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.578"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.854"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 1.36"
  • Cone Backface Backing Diameter 1.54"
  • Cup Frontface Backing Diameter 2.40"
  • Cup Backface Backing Diameter 2.05"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.09"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 23100
  • Cup Part Number 23250X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 23000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 12500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3990 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

Performance Features of 23100-23250X Bearing

23100-23250X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12300 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse conditions.

How Is 23100-23250X Bearing Engineered for Reliability?

23100-23250X Bearing features precise cone and cup width tolerances, ensuring smooth operation under load.
The tapered roller design efficiently handles both radial and thrust forces.
Chrome steel construction enhances durability, even in demanding environments.
Its standard radial clearance options provide flexibility for different applications.

Built for Durability: 23100-23250X Bearing

23100-23250X Bearing’s single-row construction simplifies installation while maintaining strength.
The open design allows for easy lubrication, keeping maintenance straightforward.
With a static radial load capacity of 12500 lbf, it reliably supports heavy loads.
Its ABEC-1 rating ensures consistent performance for general industrial use.

Steel vs Ceramic Bearings: Strengths of 23100-23250X Bearing

23100-23250X Bearing uses chrome steel for both rollers and rings, balancing cost and performance.
This material choice provides excellent wear resistance without the higher cost of ceramics.
The bearing’s dynamic thrust rating of 3990 lbf demonstrates its capability in thrust applications.
Its standard lubrication requirement makes it practical for most industrial settings.

Application

Industrial Uses of 23100-23250X Bearing
23100-23250X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 23100-23250X Bearing Used?
You’ll often find 23100-23250X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a straightforward fit for many American and British vehicle models.

Built for Heavy-Duty Use: 23100-23250X Bearing
23100-23250X Bearing excels in conveyor systems and industrial fans, thanks to its robust steel cage and tapered roller design. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 23100-23250X Bearing
In automotive settings, 23100-23250X Bearing supports wheel assemblies and transmissions, while in aerospace, it’s used in auxiliary systems requiring reliable load handling. The ABEC-1 rating ensures consistent performance.

Key Fields for 23100-23250X Bearing
23100-23250X Bearing is a go-to choice for mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance option makes it adaptable to various operational conditions.
