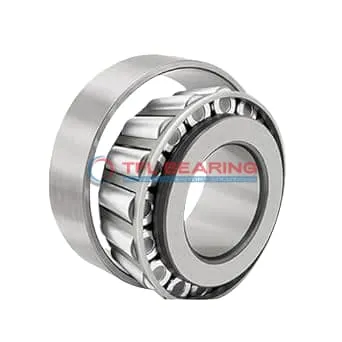

TS (Single Row Tapered Roller Bearings) (Imperial) 2382-2330

TS (Single Row Tapered Roller Bearings) (Imperial) 2382-2330

The 2382-2330 is a single-row tapered roller bearing with a 1″ bore and 2.24″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 14300 lbf radially and 1470 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing just 0.600 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2382-2330
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.24" x 0.9377"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.24"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.975"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9377"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.18"
  • Cone Backface Backing Diameter 1.22"
  • Cup Frontface Backing Diameter 2.11"
  • Cup Backface Backing Diameter 2.01"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance -0.03"
  • Effective Center Location -0.37"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2382
  • Cup Part Number 2330
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3710 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1470 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

How Is 2382-2330 Bearing Engineered for Reliability?

2382-2330 Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 14,300 lbf, making it suitable for heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it offers reliable performance in various conditions.

What Makes 2382-2330 Bearing Suitable for High-Temperature Applications?

2382-2330 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its chrome steel construction resists wear and maintains performance in demanding environments.
The tapered roller design ensures even load distribution, reducing heat buildup.
This makes it a dependable choice for industrial and automotive applications.

Built for Durability: 2382-2330 Bearing

2382-2330 Bearing is constructed with high-quality chrome steel for long-lasting performance.
Its single-row tapered roller design handles both radial and thrust loads effectively.
The steel cage ensures smooth operation by keeping the rollers in place.
With a static radial load capacity of 13,900 lbf, it excels in tough conditions.

Application

Industrial Uses of 2382-2330 Bearing
The 2382-2330 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 2382-2330 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a straightforward replacement for many North American vehicle models.

For industrial conveyor systems, 2382-2330 Bearing’s open design simplifies lubrication and maintenance, reducing downtime. Its standard radial clearance offers flexibility for different operational needs.

Where Is 2382-2330 Bearing Used?
You’ll often find 2382-2330 Bearing in mining equipment, where its robust design withstands harsh conditions. The steel cage adds extra strength, making it suitable for high-load scenarios.

In power transmission systems, 2382-2330 Bearing supports shafts and gears, ensuring smooth rotation. Its ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 2382-2330 Bearing
The 2382-2330 Bearing excels in applications like forklifts and cranes, where its dynamic load capacity is crucial. Its tapered rollers distribute stress evenly, prolonging service life.

For farm machinery, 2382-2330 Bearing handles dirt and debris well, thanks to its open seal design. Regular lubrication keeps it running smoothly in tough conditions.

Automotive vs Aerospace: Applications of 2382-2330 Bearing
In automotive settings, 2382-2330 Bearing is ideal for drivetrains, offering reliable performance under constant stress. Its inch measurements align with many US-made components.

While not typically used in aerospace, 2382-2330 Bearing suits ground support equipment well. Its temperature range covers most operational needs without specialised materials.
