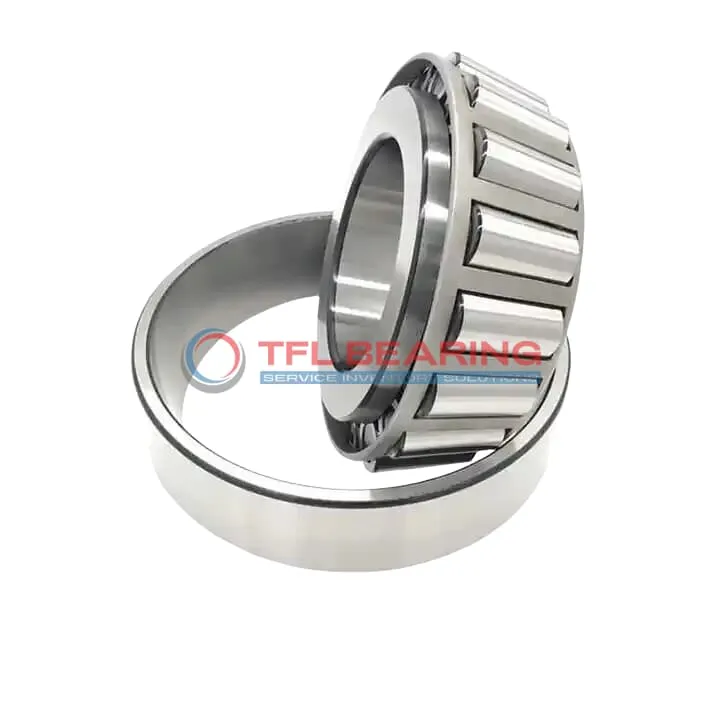

TS (Single Row Tapered Roller Bearings) (Imperial) DX513576-DX909454

TS (Single Row Tapered Roller Bearings) (Imperial) DX513576-DX909454

The DX513576-DX909454 is a single-row tapered roller bearing with a 6″ bore and 10.5625″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 217,000 lbf radially and 37,300 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where combined loads are common.

Weighing 36.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number DX513576-DX909454
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 10.5625" x 2.9375"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 10.5625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.9375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.25"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.9375"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 7.56"
  • Cone Backface Backing Diameter 7.13"
  • Cup Frontface Backing Diameter 9.83"
  • Cup Backface Backing Diameter 9.33"
  • Cage Cone Frontface Clearance 0.16"
  • Cage Cone Backface Clearance 0.27"
  • Effective Center Location -0.59"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number DX513576
  • Cup Part Number DX909454
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series DX
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 217000 lbf
  • Static Radial Load 263000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 56300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 37300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 36.5 lb

Features

Performance Features of DX513576-DX909454 Bearing

DX513576-DX909454 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 217,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is DX513576-DX909454 Bearing Engineered for Reliability?

DX513576-DX909454 Bearing features precise tolerances, with bore and outer diameter tolerances within +0.001″ to 0.
The tapered roller design efficiently handles both radial and thrust loads, enhancing versatility.
Its standard radial clearance ensures smooth operation, while optional C3/C4/C5 clearances cater to specific needs.
The bearing requires lubrication, ensuring consistent performance over time.

Built for Durability: DX513576-DX909454 Bearing

DX513576-DX909454 Bearing’s chrome steel construction provides excellent wear resistance, even under high stress.
The single-row design simplifies installation, making it suitable for a wide range of industrial applications.
With a static radial load capacity of 263,000 lbf, it delivers reliable support in demanding conditions.
Its ABEC-1 rating ensures consistent precision for general-purpose use.

Steel vs Ceramic Bearings: Strengths of DX513576-DX909454 Bearing

DX513576-DX909454 Bearing uses chrome steel rollers and rings, balancing cost and performance for industrial use.
The steel cage ensures durability and proper roller alignment, reducing maintenance needs.
Its dynamic thrust rating of 37,300 lbf makes it suitable for applications with significant axial loads.
The bearing’s standard radial clearance offers a good balance between performance and ease of use.

Application

Industrial Uses of DX513576-DX909454 Bearing
DX513576-DX909454 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, DX513576-DX909454 Bearing supports axle systems and wheel hubs, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, DX513576-DX909454 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is DX513576-DX909454 Bearing Used?
You’ll often find DX513576-DX909454 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design handles rough terrain. The standard radial clearance ensures smooth operation even with varying loads.

In wind turbine gearboxes, DX513576-DX909454 Bearing’s ability to manage combined loads makes it a reliable choice. The ABEC-1 rating provides sufficient precision for these demanding applications.

Built for Heavy-Duty Use: DX513576-DX909454 Bearing
DX513576-DX909454 Bearing excels in railway applications, supporting axles and bogies with its high dynamic load capacity. The tapered rollers distribute stress evenly, reducing wear over time.

For pulp and paper processing equipment, DX513576-DX909454 Bearing’s temperature range suits both hot and cold environments. Its steel cage and chrome steel rollers ensure long-term reliability.

Automotive vs Aerospace: Applications of DX513576-DX909454 Bearing
In automotive settings, DX513576-DX909454 Bearing is ideal for heavy trucks and buses, where its load capacity meets demanding requirements. The inch sizing simplifies replacements in older models.

For aerospace ground support equipment, DX513576-DX909454 Bearing’s precision and durability are valuable. While not used in-flight, it handles heavy loads in maintenance and handling machinery.
