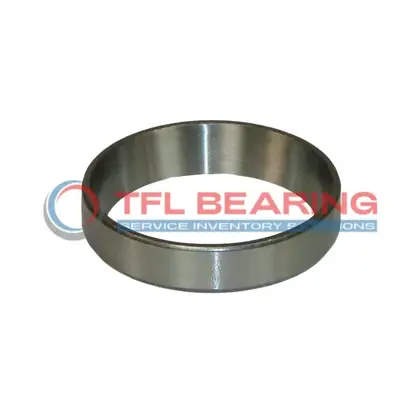

HM804810 Single Cups (Imperial)

HM804810 Single Cups (Imperial)

The HM804810 is a single cup tapered roller bearing with an outer diameter of 3.75 inches and a width of 0.9063 inches, made from durable chrome steel. It fits well with various Timken-compatible cones, making it versatile for replacements.

Its standard cup design ensures easy installation and reliable performance in temperatures from -30°C to 110°C. The ABEC-1 rating provides good precision for general industrial use.

This bearing is compliant with RoHS and REACH standards, ensuring safety and environmental friendliness. Ideal for machinery requiring tapered roller bearings, such as gearboxes or wheel hubs.

With a compact size of 3.19″ x 3.75″ x 0.9063″, it’s a practical choice for space-constrained applications. The chrome steel construction offers long-lasting durability under typical loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM804810
  • Brand TFL
  • Interchangeable Timken
  • Size 3.19" x 3.75" x 0.9063"
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.9063"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 3.62"
  • Cup Backface Backing Diameter 3.19"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number HM804840-HM804810 , HM804842-HM804810 , HM804843-HM804810 , HM804846-HM804810 , HM804848-HM804810 , HM804848A-HM804810 , HM804849-HM804810
  • Cups Type Standard
  • Series HM804800
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is HM804810 Bearing Engineered for Reliability?

HM804810 Bearing is made from chrome steel, offering excellent durability and resistance to wear.
Its tapered roller design ensures smooth operation under various load conditions.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting and alignment.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

HM804810 Bearing is interchangeable with Timken models, providing flexibility in replacements.
Its ABEC-1 rating ensures consistent performance for standard industrial applications.

Application

Industrial Uses of HM804810 Bearing
HM804810 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is HM804810 Bearing Used?
You’ll often find HM804810 Bearing in automotive applications like wheel hubs and differential systems, thanks to its precise inch sizing and compatibility with Timken designs. Its robust build makes it reliable for long-term use.

Built for Heavy-Duty Use: HM804810 Bearing
HM804810 Bearing excels in industrial conveyor systems, where its tapered rollers manage high loads smoothly. The standard cup type simplifies installation and maintenance in busy production environments.

Automotive vs Aerospace: Applications of HM804810 Bearing
In automotive settings, HM804810 Bearing supports wheel assemblies, while in aerospace, it’s suited for auxiliary gearboxes due to its temperature resilience. The ABEC-1 rating balances precision and cost-effectiveness.

Practical Applications of HM804810 Bearing
HM804810 Bearing works well in mining equipment, where its chrome steel rings resist wear from abrasive materials. The inch measurements make it a straightforward fit for North American machinery standards.
