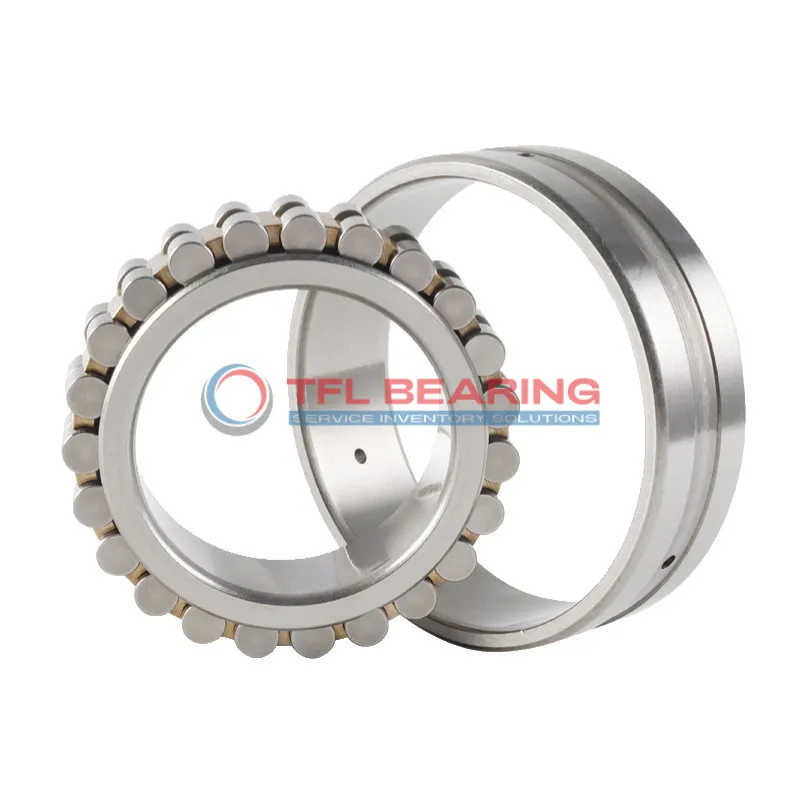

Double Row Cylindrical Roller Bearings NNU 41/600 M/W33

Double Row Cylindrical Roller Bearings NNU 41/600 M/W33

The NNU 41/600 M/W33 is a double row cylindrical roller bearing with a large 600mm bore and 980mm outer diameter, designed for heavy-duty applications. It handles combined loads, with a dynamic radial load capacity of 2,227,500 lbf and a static radial load of 4,770,000 lbf.

Its robust design includes a W33 lubrication groove, making it easy to maintain with grease or oil. The bearing operates smoothly at speeds up to 1000 RPM and works in temperatures from -30°C to 110°C.

The double row construction provides stability and can handle slight axial displacement. It’s interchangeable with SKF bearings, offering a reliable option for replacements.

Ideal for industrial machinery like rolling mills or large gearboxes, where high load capacity and durability are essential. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNU 41/600 M/W33
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 600 mm
  • Outer Dia 980 mm
  • Width 375mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 7.5 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 7.5 mm
  • Permissible Axial Displacement(max.) 18.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Dynamic Radial Load 2227500 lbf
  • Static Radial Load 4770000 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

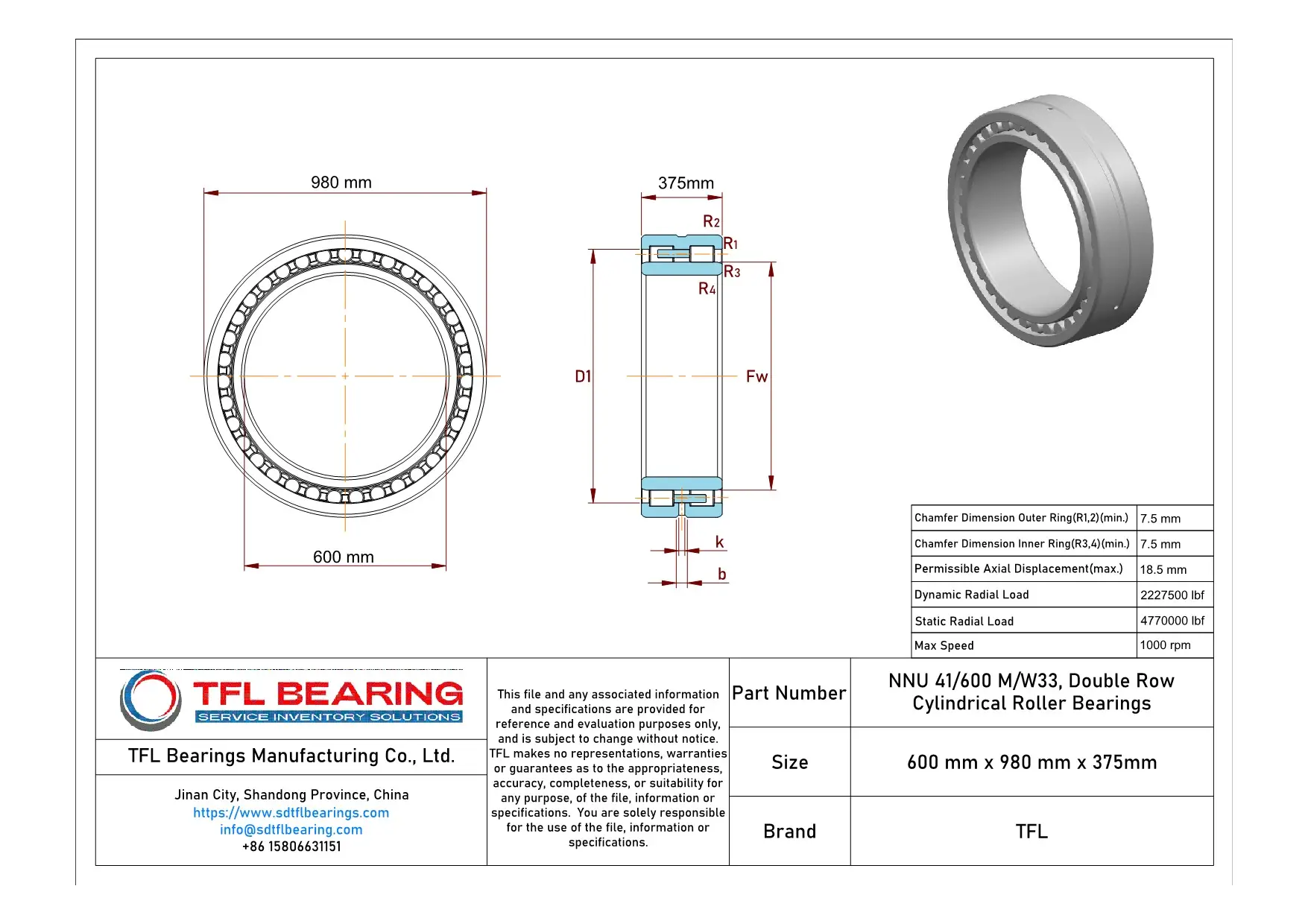

Double Row Cylindrical Roller Bearings NNU 41/600 M/W33 dimension drawing
Download DWG Download PDF

Features

Performance Features of NNU 41/600 M/W33 Bearing

NNU 41/600 M/W33 Bearing is built with a double-row cylindrical roller design, ideal for handling combined loads.
Its dynamic radial load capacity of 2,227,500 lbf ensures robust performance in heavy-duty applications.
The bearing’s width of 375mm provides stability, while the chamfer dimensions of 7.5mm enhance ease of installation.
With a maximum speed of 1,000 rpm, it balances efficiency and durability in demanding conditions.

Application

Industrial Uses of NNU 41/600 M/W33 Bearing
NNU 41/600 M/W33 Bearing is commonly used in heavy industrial machinery like rolling mills and large gearboxes, where its double-row design handles high radial and axial loads. The W33 lubrication groove ensures smooth operation even in demanding conditions.

Where Is NNU 41/600 M/W33 Bearing Used?
You’ll often find NNU 41/600 M/W33 Bearing in wind turbine gearboxes, where its large size and load capacity are essential. The grease or oil lubrication options make it adaptable to different environmental conditions.

Built for Heavy-Duty Use: NNU 41/600 M/W33 Bearing
NNU 41/600 M/W33 Bearing excels in mining equipment, supporting massive loads with its robust cylindrical roller design. The high static and dynamic load ratings ensure long service life in harsh environments.

Automotive vs Aerospace: Applications of NNU 41/600 M/W33 Bearing
In automotive, NNU 41/600 M/W33 Bearing is used in large truck transmissions, while aerospace applications include helicopter rotor systems. Its combined load capability makes it versatile across industries.

Perfect Fit for Automation: NNU 41/600 M/W33 Bearing
NNU 41/600 M/W33 Bearing is ideal for automated production lines, where precision and reliability are key. The metric dimensions ensure compatibility with European and Asian machinery standards.
