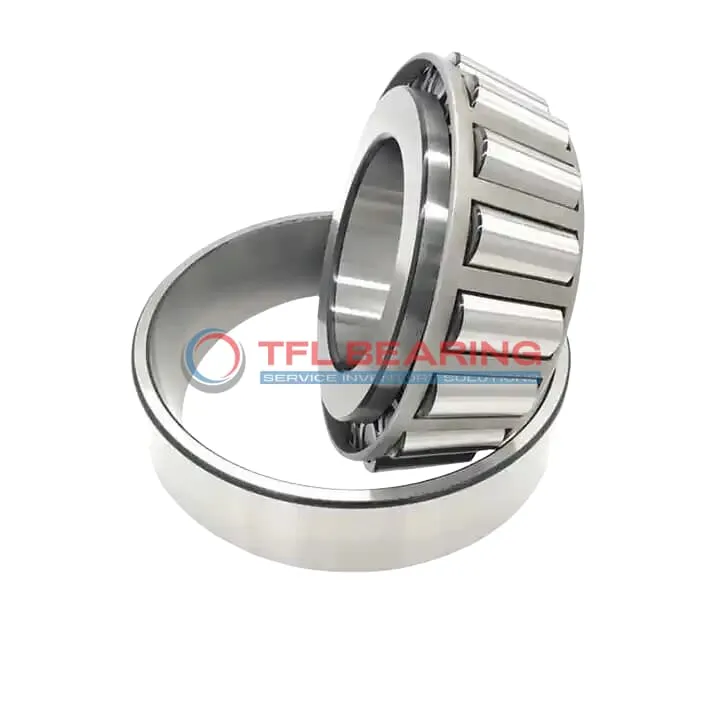

TS (Single Row Tapered Roller Bearings) (Imperial) 99603AS-99100W

TS (Single Row Tapered Roller Bearings) (Imperial) 99603AS-99100W

The 99603AS-99100W is a single-row tapered roller bearing with a 6″ bore and 10″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 139,000 lbf radially and 25,200 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 28.5 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe use.

The tapered roller design provides effective load distribution, enhancing performance in demanding conditions. Suitable for applications requiring long-lasting reliability and easy maintenance.

Its precise tolerances and sturdy construction make it a dependable choice for engineers and maintenance teams alike. Perfect for gearboxes, axles, or other heavy-load scenarios.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 99603AS-99100W
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 10" x 2.625"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 10"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 7.52"
  • Cone Backface Backing Diameter 6.69"
  • Cup Frontface Backing Diameter 9.38"
  • Cup Backface Backing Diameter 8.94"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.18"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 99603AS
  • Cup Part Number 99100W
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 99000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 139000 lbf
  • Static Radial Load 211000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 36100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 25200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 28.5 lb

Features

Performance Features of 99603AS-99100W Bearing

99603AS-99100W Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 139,000 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

99603AS-99100W Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance provides flexibility for different installation needs.

Application

Industrial Uses of 99603AS-99100W Bearing
99603AS-99100W Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 99603AS-99100W Bearing supports axle systems and wheel hubs, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle manufacturers.

For industrial conveyor systems, 99603AS-99100W Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 99603AS-99100W Bearing Used?
You’ll often find 99603AS-99100W Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles uneven loads. The standard radial clearance ensures smooth rotation even under stress.

In wind turbines, 99603AS-99100W Bearing plays a key role in rotor assemblies, thanks to its ability to manage both radial and axial forces. The ABEC-1 rating provides sufficient precision for these large-scale applications.

Built for Heavy-Duty Use: 99603AS-99100W Bearing
99603AS-99100W Bearing is ideal for railway applications, such as freight car axles, where its high dynamic load capacity ensures long-term reliability. The tapered rollers distribute stress evenly, reducing fatigue.

For oil and gas equipment, 99603AS-99100W Bearing’s temperature tolerance makes it suitable for drilling rigs and pumps. The steel cage and chrome steel components resist corrosion in harsh conditions.

Automotive vs Aerospace: Applications of 99603AS-99100W Bearing
In automotive settings, 99603AS-99100W Bearing is trusted for heavy-duty truck axles, offering stability under varying loads. Its imperial measurements align with standard US automotive designs.

While less common in aerospace, 99603AS-99100W Bearing can be found in ground support equipment, where its strength and durability are valued. The open seal design simplifies maintenance in these critical applications.
