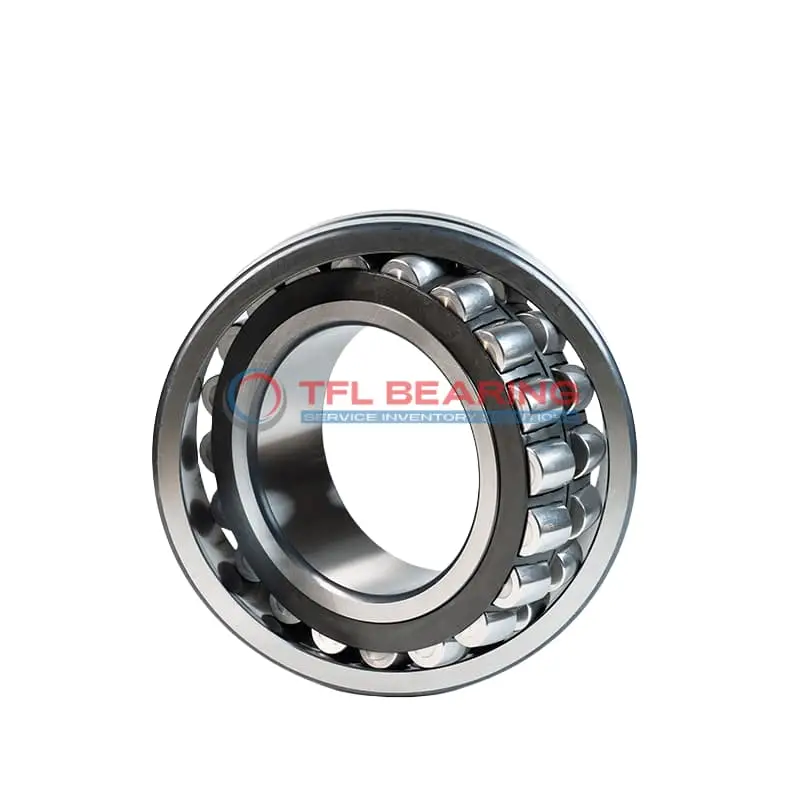

22209 CK C3 W33 Double Row Spherical Roller Bearing

22209 CK C3 W33 Double Row Spherical Roller Bearing

The 22209 CK C3 W33 is a double-row spherical roller bearing with a 45mm bore and 85mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 22031 lbf and operates smoothly at speeds up to 10000 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where combined loads are common.

Weighing 0.57kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22209 CK C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 45 x 85 x 23 mm
  • Bore Dia 45 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 54.4 mm
  • Shoulder/Recess Dia Of Outer Ring 74.4 mm
  • Width Of Lubrication Groove 5.5 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 22031 lbf
  • Max Speed 10000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.57 kg
  • Price （US$） 25.92

Features

How Is 22209 CK C3 W33 Bearing Engineered for Reliability?

22209 CK C3 W33 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity of 2338 lbf makes it suitable for heavy-duty applications.

The double-row spherical roller design allows for smooth operation even with misalignment.
With a maximum speed of 10,000 rpm, it delivers consistent performance in demanding conditions.

22209 CK C3 W33 Bearing’s C3 radial clearance provides flexibility in various operating temperatures.
The steel cage maintains roller alignment, reducing wear and extending service life.

Application

Industrial Uses of 22209 CK C3 W33 Bearing
22209 CK C3 W33 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles combined loads effectively. The spherical roller type ensures smooth operation even with slight misalignments.

In automotive applications, 22209 CK C3 W33 Bearing supports components such as gearboxes and differential systems, thanks to its high radial load capacity. The chrome steel construction provides durability under demanding conditions.

For automation equipment, 22209 CK C3 W33 Bearing is a reliable choice for robotic arms and assembly lines, where precision and speed are essential. The C3 radial clearance allows for thermal expansion during high-speed operations.

Medical imaging devices benefit from 22209 CK C3 W33 Bearing’s consistent performance and low maintenance requirements. The steel cage enhances longevity in high-use environments.

In household appliances like washing machines, 22209 CK C3 W33 Bearing ensures quiet and efficient operation. Its metric sizing makes it compatible with a variety of European and Asian models.
