TS (Single Row Tapered Roller Bearings) (Imperial) 95491-95929

TS (Single Row Tapered Roller Bearings) (Imperial) 95491-95929

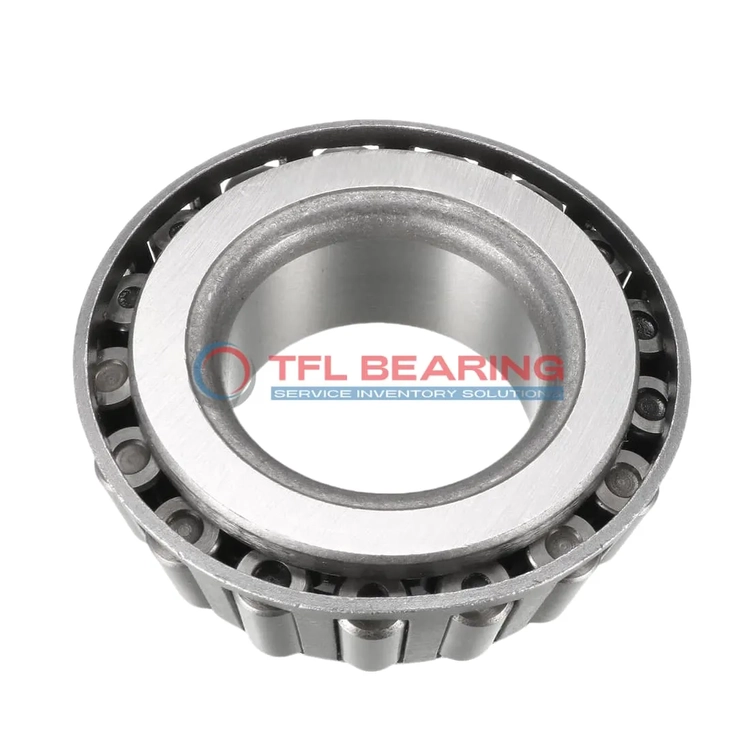

The 95491-95929 is a single-row tapered roller bearing with a 4.919″ bore and 9.251″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 141,000 lbf radially and 23,200 lbf thrust, making it robust for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where combined loads are common.

Weighing 26.6 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 95491-95929
  • Brand TFL
  • Interchangeable Timken
  • Size 4.919" x 9.251" x 2.5511"
  • Bore Dia 4.919"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.251"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.9665"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5511"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.46"
  • Cone Backface Backing Diameter 5.98"
  • Cup Frontface Backing Diameter 8.58"
  • Cup Backface Backing Diameter 8.19"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.22"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 95491
  • Cup Part Number 95929
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 95000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 141000 lbf
  • Static Radial Load 209000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 36700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 23200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 26.600 lb

Features

Performance Features of 95491-95929 Bearing

95491-95929 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 141,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

How Does 95491-95929 Bearing Reduce Friction?

95491-95929 Bearing features a tapered roller design that minimises friction during operation.
The chrome steel construction enhances durability while maintaining smooth performance under load.
Its effective centre location of -0.55″ ensures optimal load distribution.
This design reduces wear, making it a reliable choice for industrial applications.

Built for Reliability: 95491-95929 Bearing

95491-95929 Bearing’s single-row construction provides stability and consistent performance.
The standard radial clearance allows for smooth operation in various conditions.
With a static radial load capacity of 209,000 lbf, it handles demanding tasks with ease.
Its ABEC-1 rating ensures precision and reliability in industrial settings.

Steel vs Ceramic Bearings: Strengths of 95491-95929 Bearing

95491-95929 Bearing uses chrome steel for both rings and rollers, offering excellent strength.
This material choice provides better load capacity compared to ceramic alternatives in heavy applications.
The steel cage maintains roller alignment, ensuring consistent performance.
Its dynamic thrust rating of 23,200 lbf makes it versatile for various load directions.

Application

Industrial Uses of 95491-95929 Bearing
The 95491-95929 Bearing is widely used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 95491-95929 Bearing Used?
You’ll often find the 95491-95929 Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high radial and thrust loads. The inch sizing makes it a convenient choice for North American equipment.

Built for Heavy-Duty Use: 95491-95929 Bearing
In industrial gearboxes, the 95491-95929 Bearing provides reliable performance under continuous operation. Its steel cage and chrome steel rollers offer long service life with minimal maintenance.

Automotive vs Aerospace: Applications of 95491-95929 Bearing
The 95491-95929 Bearing is versatile enough for automotive axles and aerospace landing gear, thanks to its high load capacity. Its standard radial clearance ensures smooth operation in both applications.

Essential Roles of 95491-95929 Bearing
For conveyor systems in factories, the 95491-95929 Bearing’s tapered rollers manage heavy loads while maintaining alignment. Its open design allows for easy lubrication, extending its lifespan.
