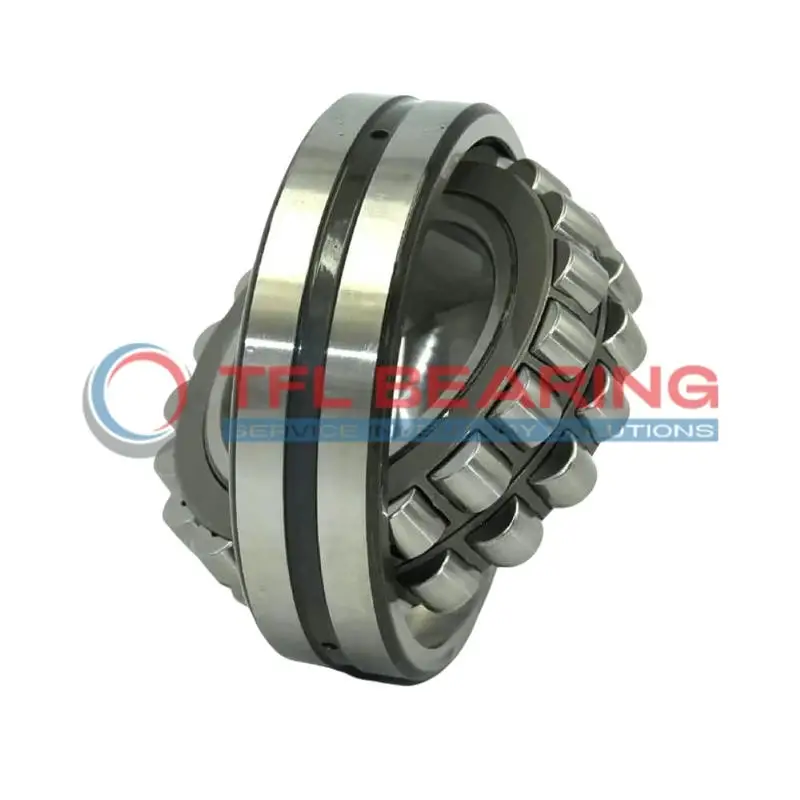

23952 CC/W79 Double Row Spherical Roller Bearing

23952 CC/W79 Double Row Spherical Roller Bearing

The 23952 CC/W79 is a double-row spherical roller bearing with a 260mm bore and 360mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 237173 lbf and runs smoothly at speeds up to 1900 RPM.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates well in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy machinery or industrial equipment where high radial loads are common.

Weighing 23.5kg, it’s robust for demanding applications. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23952 CC/W79
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 360 x 75 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 75 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 287 mm
  • Shoulder/Recess Dia Of Outer Ring 331 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 237173 lbf
  • Static Radial Load 404656 lbf
  • Max Speed 1900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 23.5 kg

Features

Performance Features of 23952 CC/W79 Bearing

23952 CC/W79 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 237,173 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for smooth operation even under misalignment conditions.
With a maximum speed of 1,900 rpm, it balances durability and efficiency in demanding environments.

23952 CC/W79 Bearing operates effectively in temperatures ranging from -30°C to 200°C.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.

Lubrication grooves and holes in 23952 CC/W79 Bearing ensure consistent lubrication for optimal performance.
Its robust construction makes it suitable for applications requiring high load capacity and reliability.

Application

Industrial Uses of 23952 CC/W79 Bearing
The 23952 CC/W79 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads.
Its chrome steel construction ensures durability in harsh environments, making it a reliable choice for mining and construction equipment.

Why Is 23952 CC/W79 Bearing Essential in Machinery?
In large industrial gearboxes, 23952 CC/W79 Bearing provides stability under high dynamic loads, thanks to its robust spherical roller design.
The open seal type allows for easy lubrication, extending its service life in demanding applications.

Built for Heavy-Duty Use: 23952 CC/W79 Bearing
This bearing excels in paper mill machinery, where its combined load capacity handles both radial and axial forces effortlessly.
The steel cage enhances strength, ensuring consistent performance even at high speeds up to 1900 rpm.

Automotive vs Aerospace: Applications of 23952 CC/W79 Bearing
While not typically used in aerospace, 23952 CC/W79 Bearing is ideal for heavy-duty automotive applications like large truck wheel hubs.
Its metric sizing and high static radial load capacity make it suitable for European commercial vehicle standards.

Key Fields for 23952 CC/W79 Bearing
Wind turbine generators benefit from 23952 CC/W79 Bearing’s ability to handle misalignment and variable loads.
The wide temperature range (-30° to 200 °C) ensures reliability in both hot and cold operating conditions.
