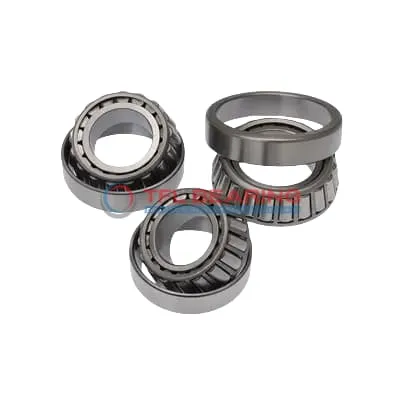

TS (Single Row Tapered Roller Bearings) (Imperial) 88925-88126

TS (Single Row Tapered Roller Bearings) (Imperial) 88925-88126

The 88925-88126 is a single-row tapered roller bearing with a 9.25″ bore and 12.625″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 124,000 lbf radially and 26,800 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design and steel cage ensure durability, while the tapered rollers provide smooth operation under high stress. The bearing operates efficiently in temperatures from -30°C to 110°C and requires regular lubrication for optimal performance.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where heavy loads and durability are key.

Weighing 22.3 lb, it’s a solid, long-lasting solution for demanding environments. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 88925-88126
  • Brand TFL
  • Interchangeable Timken
  • Size 9.25" x 12.625" x 2"
  • Bore Dia 9.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.625"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 1.9375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.3125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 10.83"
  • Cone Backface Backing Diameter 10.16"
  • Cup Frontface Backing Diameter 12.20"
  • Cup Backface Backing Diameter 11.77"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.41"
  • Effective Center Location 0.56"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 88925
  • Cup Part Number 88126
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 88000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 124000 lbf
  • Static Radial Load 185000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 32200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 26800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 22.3 lb

Features

Why Choose 88925-88126 Bearing for Precision Tasks?

88925-88126 Bearing is crafted with chrome steel rings and rollers, ensuring durability and precision in combined load applications.
Its dynamic radial load capacity reaches 124,000 lbf, making it suitable for heavy-duty operations.
The steel cage maintains roller alignment, reducing friction and enhancing performance.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

How Is 88925-88126 Bearing Engineered for Reliability?

88925-88126 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent resistance to wear and fatigue.
Its dynamic thrust rating of 26,800 lbf ensures consistent performance under pressure.
The standard radial clearance options offer flexibility for different applications.

Built for Durability: 88925-88126 Bearing

88925-88126 Bearing’s robust design includes a steel cage for enhanced roller stability.
The chrome steel rollers and rings contribute to its long service life and high load capacity.
With an ABEC-1 rating, it balances precision and affordability.
The bearing operates efficiently within a wide temperature range, ensuring versatility.

Application

Industrial Uses of 88925-88126 Bearing
88925-88126 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 88925-88126 Bearing supports axle systems and wheel hubs, providing reliable performance under high radial and thrust loads. Its inch sizing makes it a preferred choice for American and British vehicle models.

For industrial conveyor systems, 88925-88126 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, making it suitable for high-speed applications.

Where Is 88925-88126 Bearing Used?
You’ll often find 88925-88126 Bearing in agricultural machinery, like tractors and harvesters, where its robust design withstands rough conditions. The standard radial clearance ensures smooth operation even with varying loads.

In railway applications, 88925-88126 Bearing is trusted for its ability to handle heavy loads and vibrations. The tapered rollers distribute stress evenly, reducing wear over time.

Built for Heavy-Duty Use: 88925-88126 Bearing
88925-88126 Bearing excels in wind turbine gearboxes, where its combined load capacity and temperature tolerance are crucial. The ABEC-1 rating ensures consistent performance in precision applications.

For oil and gas equipment, 88925-88126 Bearing’s chrome steel rollers resist corrosion and wear. Its inch measurements simplify replacements in existing systems.

Automotive vs Aerospace: Applications of 88925-88126 Bearing
In automotive settings, 88925-88126 Bearing is ideal for drivetrains, offering reliable load support. The steel cage enhances durability under constant stress.

Aerospace applications benefit from 88925-88126 Bearing’s precision in auxiliary systems, though its weight may limit use in primary components. The temperature range suits most operational environments.
