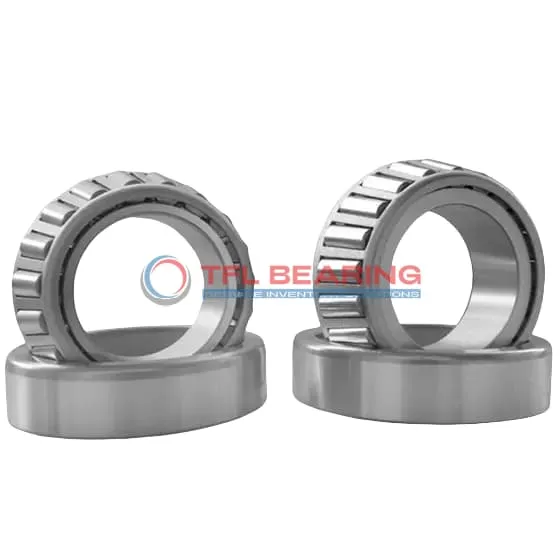

TS (Single Row Tapered Roller Bearings) (Imperial) 82562A-82931

TS (Single Row Tapered Roller Bearings) (Imperial) 82562A-82931

The 82562A-82931 is a single-row tapered roller bearing with a 5.625″ bore and 9.3125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 116,000 lbf radially and 22,700 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where high load capacity is needed.

Weighing 20.80 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 82562A-82931
  • Brand TFL
  • Interchangeable Timken
  • Size 5.625" x 9.3125" x 2.25"
  • Bore Dia 5.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.3125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.23"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.25"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.310"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 7.08"
  • Cone Backface Backing Diameter 6.77"
  • Cup Frontface Backing Diameter 8.94"
  • Cup Backface Backing Diameter 8.39"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.14"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 82562A
  • Cup Part Number 82931
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 82000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116000 lbf
  • Static Radial Load 182000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 30000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 22700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 20.80 lb

Features

Performance Features of 82562A-82931 Bearing

82562A-82931 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 116,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

Why Choose 82562A-82931 Bearing for Precision Tasks?

82562A-82931 Bearing’s tapered roller design provides precise load distribution, enhancing stability.
The standard radial clearance ensures smooth operation, making it suitable for precision machinery.
Its ABEC-1 rating guarantees consistent performance in applications requiring moderate precision.
The open seal design allows for easy lubrication, maintaining optimal performance over time.

Engineered for Reliability: 82562A-82931 Bearing

82562A-82931 Bearing’s single-row construction simplifies installation while maintaining durability.
The chrome steel materials resist wear, ensuring long service life even under heavy loads.
With a static radial load capacity of 182,000 lbf, it handles demanding industrial applications.
The effective center location of -0.14″ enhances alignment and reduces operational stress.

Steel vs Ceramic Bearings: Strengths of 82562A-82931 Bearing

82562A-82931 Bearing’s chrome steel rollers provide excellent strength and wear resistance.
The steel cage offers durability and cost-effectiveness compared to ceramic alternatives.
Its dynamic thrust rating of 22,700 lbf ensures reliable performance in thrust applications.
The standard lubrication requirement makes maintenance straightforward and cost-efficient.

How Does 82562A-82931 Bearing Reduce Friction?

82562A-82931 Bearing’s tapered roller design minimises friction by evenly distributing loads.
The precision-engineered cage keeps rollers aligned, reducing unnecessary contact and wear.
Its chrome steel construction ensures smooth operation, even under high radial or thrust loads.
The open seal design allows for efficient lubrication, further reducing friction over time.

Application

Industrial Uses of 82562A-82931 Bearing
82562A-82931 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 82562A-82931 Bearing supports axle systems and wheel hubs, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 82562A-82931 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

What Makes 82562A-82931 Bearing a Preferred Choice?
82562A-82931 Bearing excels in agricultural machinery, such as tractors and harvesters, where its robust design withstands variable loads. The standard radial clearance offers flexibility for different operating conditions.

In power transmission systems, 82562A-82931 Bearing ensures smooth rotation for gears and pulleys, thanks to its precise taper roller alignment. The ABEC-1 rating balances performance and cost for general industrial use.

Built for Heavy-Duty Use: 82562A-82931 Bearing
82562A-82931 Bearing is ideal for railway applications, where its high dynamic load capacity handles the stresses of rolling stock. The inch measurements simplify replacement in older systems.

For marine equipment, 82562A-82931 Bearing’s temperature range suits both cold and warm environments, making it versatile for shipboard machinery. The required lubrication ensures consistent performance in salty conditions.

Automotive vs Aerospace: Applications of 82562A-82931 Bearing
In automotive settings, 82562A-82931 Bearing is trusted for drivetrain components, offering a balance of strength and precision. Its compatibility with Timken models simplifies maintenance.

For aerospace ground support equipment, 82562A-82931 Bearing provides reliable performance in load-handling systems. The chrome steel rollers resist wear, even with frequent use.
