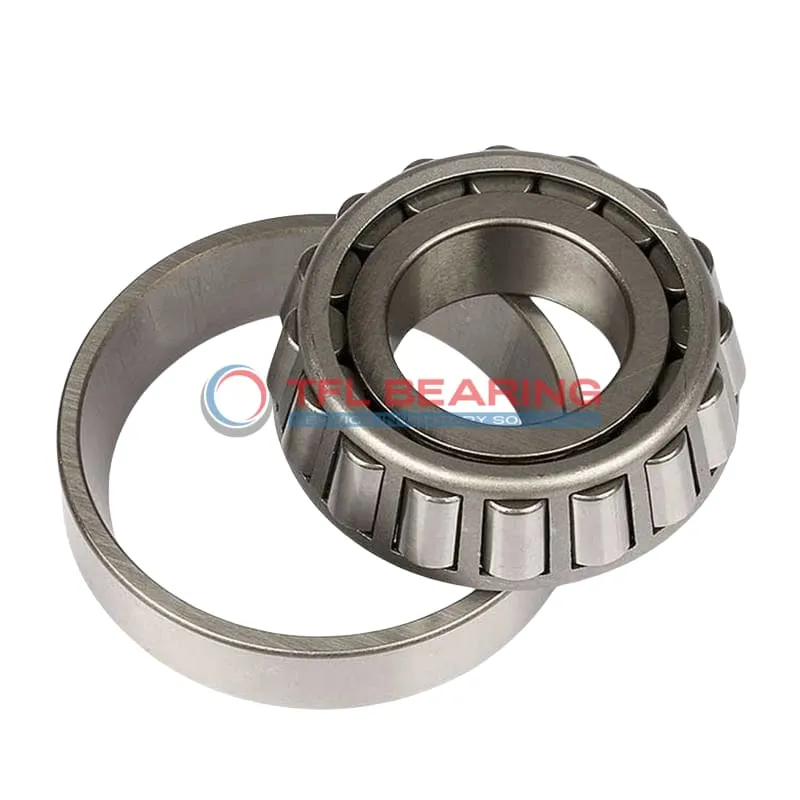

TS (Single Row Tapered Roller Bearings) (Imperial) 43096-43312

The 43096-43312 is a single row tapered roller bearing with a 0.96″ bore and 3.125″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 20700 lbf radially and 6130 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing 1.4 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 43096-43312
Brand TFL
Interchangeable Timken
Size 0.96" x 3.125" x 1"
Bore Dia 0.96"
Bore Dia Tolerance +0.005" to 0
Outer Dia 3.125"
Outer Dia Tolerance +0.001" to 0
Cone Width 0.9478"
Cone Width Tolerance +0.003" to -0.01
Cup Width 0.6875"
Cup Width Tolerance +0.002" to -0.01
Width 1"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.03"
Cup Backface ToClear Radius 0.06"
Cone Frontface Backing Diameter 1.56"
Cone Backface Backing Diameter 1.59"
Cup Frontface Backing Diameter 2.94"
Cup Backface Backing Diameter 2.64"
Cage Cone Frontface Clearance 0.13"
Cage Cone Backface Clearance 0.1"
Effective Center Location -0.08"
System of Measurement Inch
Type Bearing
Cone Part Number 43096
Cup Part Number 43312
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 43000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 20700 lbf
Static Radial Load 17100 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 5360 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6130 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 1.400 lb

Features

How Is 43096-43312 Bearing Engineered for Reliability?

43096-43312 Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 20,700 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and wear over time.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Why Choose 43096-43312 Bearing for Precision Tasks?

43096-43312 Bearing’s tapered roller design provides precise load distribution and smooth operation.
The standard radial clearance and ABEC-1 rating ensure consistent performance in precision tasks.
Its chrome steel construction resists wear, extending the bearing’s service life.
The open seal type allows for easy lubrication, maintaining optimal performance.

Designed for Durability: 43096-43312 Bearing

43096-43312 Bearing is built with high-quality chrome steel, offering excellent resistance to wear.
Its single-row construction ensures stability and reliability under combined loads.
The bearing’s effective center location enhances alignment and reduces operational stress.
With a static radial load of 17,100 lbf, it handles demanding applications with ease.

Steel vs Ceramic Bearings: Strengths of 43096-43312 Bearing

43096-43312 Bearing’s chrome steel rollers provide superior strength and durability.
The steel cage ensures smooth operation and reduces maintenance requirements.
Its dynamic thrust rating of 6,130 lbf makes it versatile for various applications.
The bearing’s standard radial clearance options allow for flexibility in different setups.

Application

Industrial Uses of 43096-43312 Bearing
The 43096-43312 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

In automotive applications, 43096-43312 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it a convenient choice for vehicles using imperial measurements.

For industrial conveyor systems, 43096-43312 Bearing’s open design allows for easy lubrication, extending its service life in high-use environments. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 43096-43312 Bearing Used?
You’ll often find 43096-43312 Bearing in mining equipment, where its ability to handle heavy radial and thrust loads is essential. The standard radial clearance ensures smooth operation even under stress.

In manufacturing plants, 43096-43312 Bearing supports machinery like presses and rollers, thanks to its robust design. The ABEC-1 rating provides a good balance of precision and affordability for industrial needs.

Built for Heavy-Duty Use: 43096-43312 Bearing
The 43096-43312 Bearing excels in applications like gearboxes and power transmission systems, where its tapered rollers manage combined loads efficiently. Its temperature range also suits various working environments.

For railway applications, 43096-43312 Bearing’s durability and load capacity make it a reliable choice for axle boxes. The steel cage and chrome steel components ensure long-term performance under heavy use.

Automotive vs Aerospace: Applications of 43096-43312 Bearing
In automotive settings, 43096-43312 Bearing is ideal for wheel assemblies, offering stability and load support. Its imperial sizing aligns with many vehicle designs.

For aerospace ground equipment, 43096-43312 Bearing provides dependable performance in maintenance tools and loading systems. The open design allows for easy inspection and lubrication.
