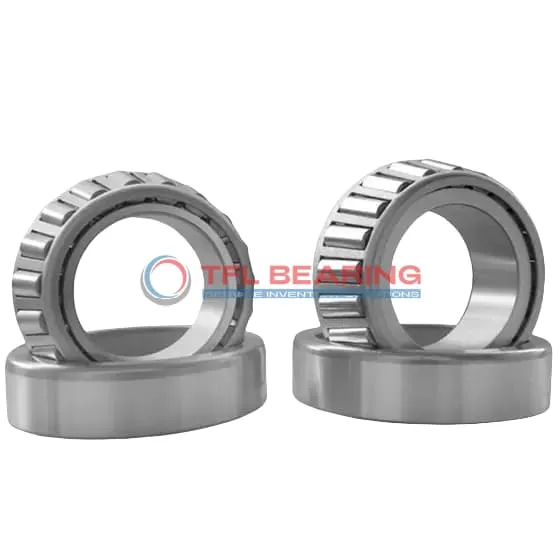

TS (Single Row Tapered Roller Bearings) (Imperial) 82562-J82945

The 82562-J82945 is a single-row tapered roller bearing with a 5.625″ bore and 9.4488″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 116,000 lbf radially and 22,700 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery, gearboxes, or heavy equipment where combined loads are common.

Weighing 22 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 82562-J82945
Brand TFL
Interchangeable Timken
Size 5.625" x 9.4488" x 2.2501"
Bore Dia 5.625"
Bore Dia Tolerance +0.001" to 0
Outer Dia 9.4488"
Outer Dia Tolerance +0.001" to 0
Cone Width 2.23"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.75"
Cup Width Tolerance +0.002" to -0.01
Width 2.2501"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 7.08"
Cone Backface Backing Diameter 6.42"
Cup Frontface Backing Diameter 8.94"
Cup Backface Backing Diameter 8.46"
Cage Cone Frontface Clearance 0.12"
Cage Cone Backface Clearance 0.15"
Effective Center Location -0.14"
System of Measurement Inch
Type Bearing
Cone Part Number 82562
Cup Part Number J82945
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 82000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 116000 lbf
Static Radial Load 182000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 30000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 22700 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 22.000 lb

Features

Performance Features of 82562-J82945 Bearing

82562-J82945 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 116,000 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a standard radial clearance, it provides reliable operation in various industrial settings.

82562-J82945 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its ABEC-1 rating ensures consistent precision for general engineering applications.

The tapered roller design distributes loads evenly, extending the bearing’s service life.
Regular lubrication is recommended to maintain optimal performance over time.

Application

Industrial Uses of 82562-J82945 Bearing
82562-J82945 Bearing is commonly used in heavy machinery like construction equipment and mining gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 82562-J82945 Bearing fits well in truck wheel hubs and axles, providing reliable performance under heavy radial and thrust loads. Its imperial sizing makes it a go-to choice for North American vehicle manufacturers.

For industrial conveyor systems, 82562-J82945 Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

What Makes 82562-J82945 Bearing a Preferred Choice?
82562-J82945 Bearing stands out in agricultural machinery, such as tractors and harvesters, due to its ability to withstand dirt and debris. The standard radial clearance ensures smooth operation in varying temperatures.

Its compatibility with Timken models makes 82562-J82945 Bearing a versatile option for maintenance and replacements. The ABEC-1 rating balances precision and cost-effectiveness for general industrial use.
