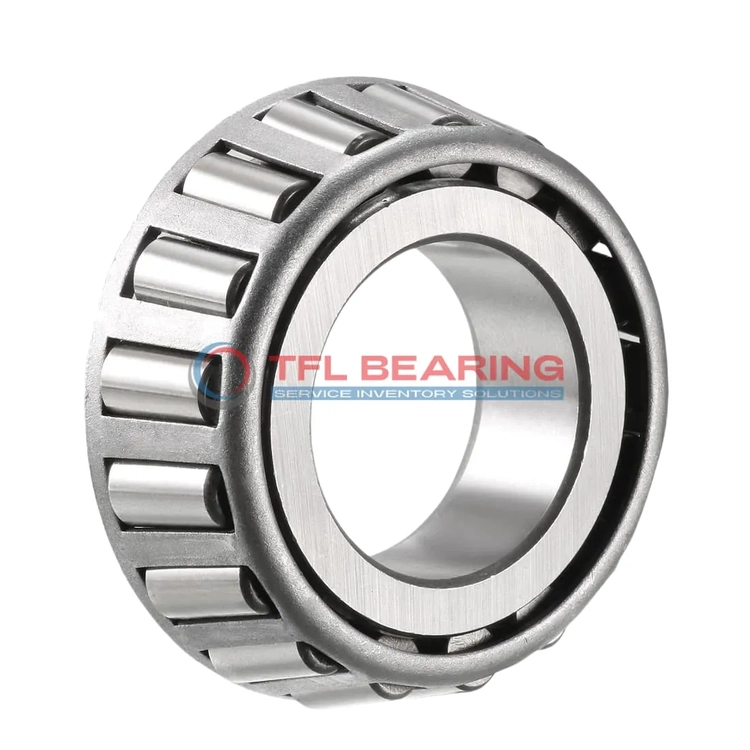

TS (Single Row Tapered Roller Bearings) (Imperial) 795-792

TS (Single Row Tapered Roller Bearings) (Imperial) 795-792

The 795-792 is a single-row tapered roller bearing with a 4.75″ bore and 8.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 85000 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 14 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The ABEC-1 rating ensures consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 795-792
  • Brand TFL
  • Interchangeable Timken
  • Size 4.75" x 8.125" x 1.875"
  • Bore Dia 4.75"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 8.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.875"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.13"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.25"
  • Cone Backface Backing Diameter 5.47"
  • Cup Frontface Backing Diameter 7.76"
  • Cup Backface Backing Diameter 7.32"
  • Cage Cone Frontface Clearance 0.16"
  • Cage Cone Backface Clearance 0.18"
  • Effective Center Location -0.07"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 795
  • Cup Part Number 792
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 795
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 85000 lbf
  • Static Radial Load 133000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 22000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 17300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 14 lb

Features

Engineered for Precision: 795-792 Bearing

795-792 Bearing features a single row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity reaches 85,000 lbf, providing reliable performance under heavy loads.
With a static radial load rating of 133,000 lbf, it offers stability in various industrial settings.

795-792 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different operating conditions.

Application

Industrial Uses of 795-792 Bearing
The 795-792 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 795-792 Bearing Used?
You’ll often find the 795-792 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 795-792 Bearing
This bearing excels in industrial gearboxes and conveyor systems, thanks to its high dynamic radial load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 795-792 Bearing
In automotive settings, the 795-792 Bearing supports heavy axles and drivetrains, while its precision makes it suitable for certain aerospace ground support equipment. The steel cage adds extra strength for rigorous use.

Key Fields for 795-792 Bearing
The 795-792 Bearing is ideal for agricultural machinery, where its ability to handle both radial and thrust loads is crucial. Its standard radial clearance ensures smooth operation in varying conditions.
