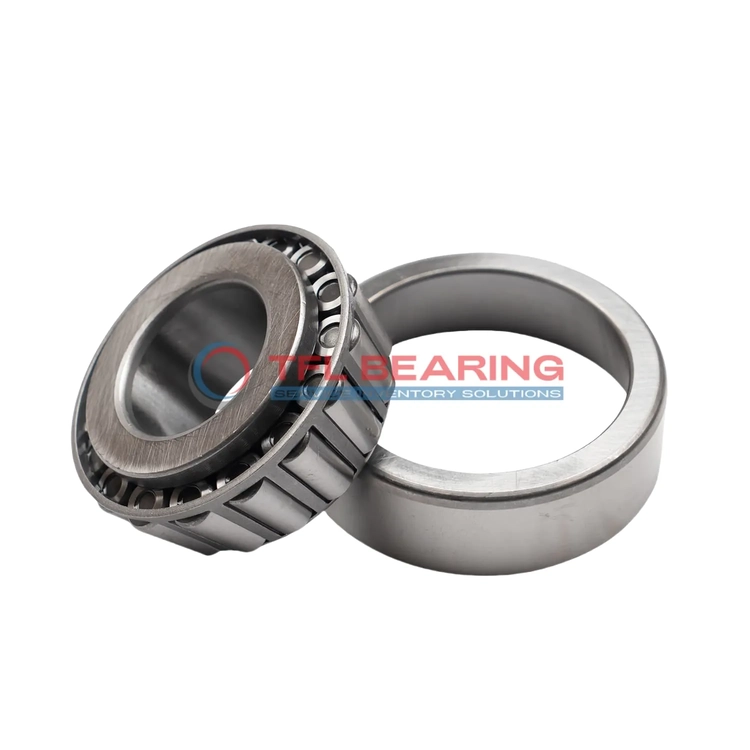

TS (Single Row Tapered Roller Bearings) (Imperial) 766-753

TS (Single Row Tapered Roller Bearings) (Imperial) 766-753

The 766-753 is a single-row tapered roller bearing with a 3.5″ bore and 6.625″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 73600 lbf radially and 11100 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 9.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides efficient load distribution, reducing wear over time.

Perfect for applications requiring long-lasting reliability, such as construction equipment or heavy transport. The bearing’s dimensions and tolerances make it easy to install and maintain.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 766-753
  • Brand TFL
  • Interchangeable Timken
  • Size 3.5" x 6.625" x 1.875"
  • Bore Dia 3.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.9"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.280"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.61"
  • Cone Backface Backing Diameter 4.45"
  • Cup Frontface Backing Diameter 5.94"
  • Cup Backface Backing Diameter 5.79"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.11"
  • Effective Center Location -0.47"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 766
  • Cup Part Number 753
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 755
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 73600 lbf
  • Static Radial Load 99200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 19100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.9 lb

Features

Performance Features of 766-753 Bearing

766-753 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 73,600 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

766-753 Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 766-753 Bearing
The 766-753 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 766-753 Bearing Used?
You’ll often find the 766-753 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for North American vehicle models.

Built for Heavy-Duty Use: 766-753 Bearing
The 766-753 Bearing excels in industrial settings, such as conveyor systems and mining equipment. Its open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 766-753 Bearing
In automotive systems, the 766-753 Bearing supports high radial and thrust loads in transmissions. While not typically used in aerospace, its robustness suits heavy industrial applications.

Practical Applications of 766-753 Bearing
The 766-753 Bearing is ideal for machinery requiring precise load distribution, like gearboxes and pumps. Its steel cage adds stability, making it a dependable choice for long-term use.
