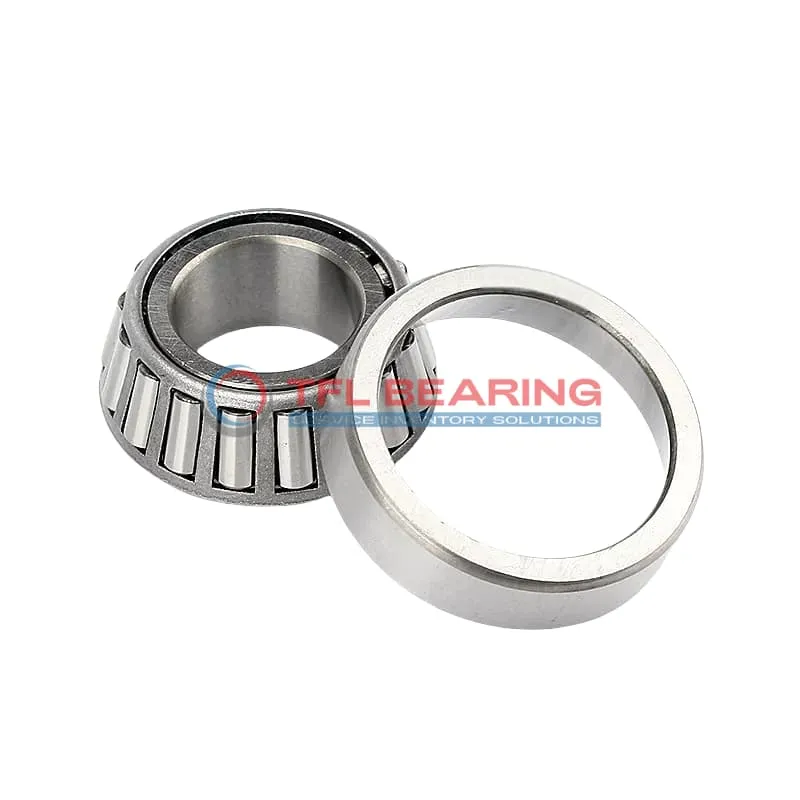

TS (Single Row Tapered Roller Bearings) (Imperial) 760-754W

TS (Single Row Tapered Roller Bearings) (Imperial) 760-754W

The 760-754W is a single-row tapered roller bearing with a 3.5625″ bore and 6.625″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 73600 lbf radially and 11100 lbf thrust, making it a versatile choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where robust performance is needed.

Weighing 11.7 lb, it’s built to last with standard radial clearance and compliance with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 760-754W
  • Brand TFL
  • Interchangeable Timken
  • Size 3.5625" x 6.625" x 2.1251"
  • Bore Dia 3.5625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.9"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.25"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.1251"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.64"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 1.10"
  • Cup Backface Backing Diameter 0.00"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.11"
  • Effective Center Location -0.47"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 760
  • Cup Part Number 754W
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 755
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 73600 lbf
  • Static Radial Load 99200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 19100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 11.7 lb

Features

Performance Features of 760-754W Bearing

760-754W Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 73,600 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures effective load distribution, enhancing durability and performance.
With a standard radial clearance, it provides reliable operation in various industrial settings.

760-754W Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing friction and extending service life.

This bearing requires lubrication for optimal performance, ensuring smooth operation.
Its ABEC-1 rating guarantees consistent precision in demanding conditions.

Application

Industrial Uses of 760-754W Bearing
760-754W Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 760-754W Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 760-754W Bearing’s open design allows for easy lubrication, extending its service life in high-use scenarios. The steel cage adds stability, reducing wear over time.

Where Is 760-754W Bearing Used?
You’ll often find 760-754W Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles rough terrain. The ABEC-1 rating ensures consistent performance without over-engineering.

In manufacturing plants, 760-754W Bearing supports gearboxes and pulley systems, thanks to its high dynamic radial load capacity. The standard radial clearance option makes it versatile for various setups.

Built for Heavy-Duty Use: 760-754W Bearing
760-754W Bearing excels in forestry equipment, such as log splitters and sawmills, where its tapered rollers manage heavy loads smoothly. The temperature range of -30° to 110°C ensures reliability in extreme conditions.

For railway applications, 760-754W Bearing’s combined load capability makes it suitable for axle boxes. Its steel cage and chrome steel rollers provide long-lasting performance under constant vibration.

Automotive vs Aerospace: Applications of 760-754W Bearing
In automotive systems, 760-754W Bearing is ideal for truck transmissions, offering a balance of strength and precision. The inch measurements simplify replacements in older models.

For aerospace ground support equipment, 760-754W Bearing’s static radial load capacity ensures stability in heavy lifting gear. However, its weight makes it less suitable for in-flight components.
