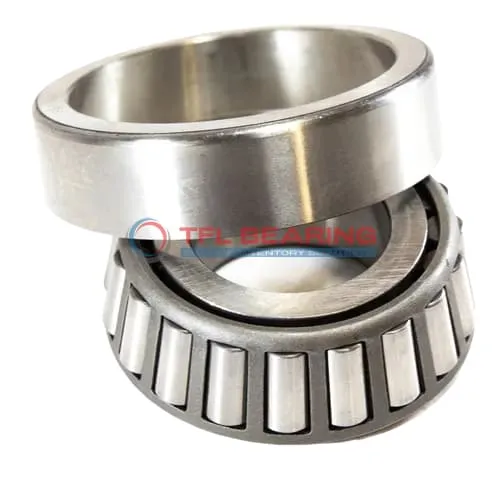

TS (Single Row Tapered Roller Bearings) (Imperial) 67985-67919

TS (Single Row Tapered Roller Bearings) (Imperial) 67985-67919

The 67985-67919 is a single-row tapered roller bearing with an 8.125″ bore and 11″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 113,000 lbf radially and 25,500 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 17.4 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 67985-67919
  • Brand TFL
  • Interchangeable Timken
  • Size 8.125" x 11" x 1.8126"
  • Bore Dia 8.125"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 11"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.8126"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 9.65"
  • Cone Backface Backing Diameter 8.82"
  • Cup Frontface Backing Diameter 10.81"
  • Cup Backface Backing Diameter 10.20"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location 0.63"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 67985
  • Cup Part Number 67919
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 67900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 113000 lbf
  • Static Radial Load 197000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 29300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 25500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 17.4 lb

Features

Why Choose 67985-67919 Bearing for Precision Tasks?

67985-67919 Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 113,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a standard radial clearance, it provides reliable operation in various industrial settings.

How Is 67985-67919 Bearing Engineered for Reliability?

67985-67919 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction resists wear, ensuring a long service life even in demanding conditions.
Its dynamic thrust rating of 25,500 lbf allows for efficient performance under varying loads.
The open seal type simplifies maintenance, making it a practical choice for many applications.

Built for Durability: 67985-67919 Bearing

67985-67919 Bearing is designed to withstand static radial loads up to 197,000 lbf.
The tapered roller construction ensures smooth operation, even under high-stress conditions.
Its effective center location of 0.63″ provides stability and precision in alignment.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

Application

Industrial Uses of 67985-67919 Bearing
The 67985-67919 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 67985-67919 Bearing Used?
You’ll often find 67985-67919 Bearing in agricultural machinery, supporting components like gearboxes and axles. Its standard radial clearance makes it versatile for various load conditions.

Built for Heavy-Duty Use: 67985-67919 Bearing
This bearing excels in industrial fans and pumps, thanks to its high dynamic radial load capacity. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 67985-67919 Bearing
In automotive systems, 67985-67919 Bearing is ideal for wheel hubs and differentials, while its precision suits aerospace landing gear components. The inch sizing ensures compatibility with imperial systems.

Essential Roles of 67985-67919 Bearing
For conveyor systems and material handling equipment, 67985-67919 Bearing provides smooth performance under heavy loads. Its ABEC-1 rating balances precision and cost-effectiveness for industrial applications.
