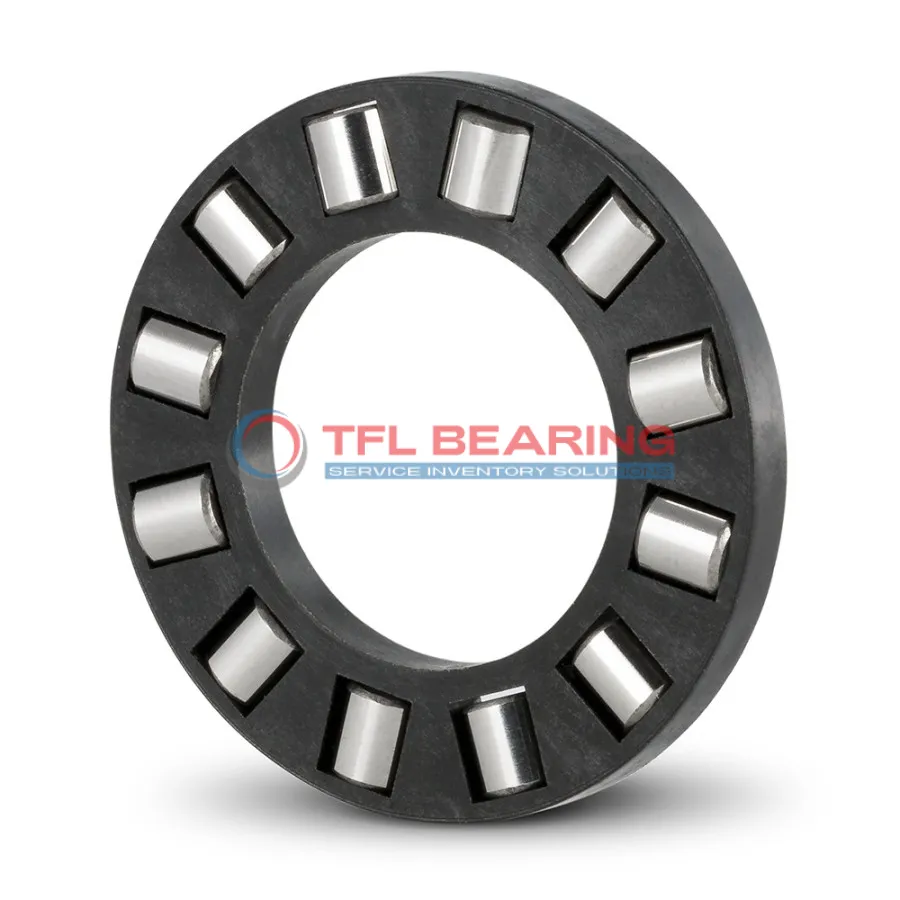

Single Row Cylindrical Roller Thrust Bearings assembly K 81120 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81120 TN

The K 81120 TN is a single-row cylindrical roller thrust bearing with a 100mm bore and 135mm outer diameter, designed for heavy thrust loads. Its compact 11mm width makes it suitable for tight spaces, while the chrome steel rollers ensure durability.

This bearing handles dynamic radial loads up to 35100 lbf and static loads up to 141750 lbf, with a maximum speed of 2400 RPM. The glass fibre reinforced PA66 cage provides strength and reduces friction for smoother operation.

Its design includes separate shaft and housing washers (WS 81120 and GS 81120) for easy installation. The bearing performs well in temperatures from -30°C to 110°C, making it versatile for various environments.

Ideal for industrial machinery like gearboxes or presses where high thrust loads are common. Weighing just 0.25kg, it’s a lightweight yet robust solution. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81120 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 100 mm
  • Bore Dia Tolerance +0.072mm to +0.292mm
  • Outer Dia 135 mm
  • Outer Dia Tolerance -0.46mm to -1.09mm
  • Diameter Roller 11 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 104 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 131 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 35100 lbf
  • Static Radial Load 141750 lbf
  • Max Speed 2400 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.25 kg
  • Shaft Washer WS 81120
  • Housing Washer GS 81120
  • Universal Washer LS 100135

Features

Why Choose K 81120 TN Bearing for Precision Tasks?

K 81120 TN Bearing features a single-row cylindrical roller design, ideal for handling high thrust loads with precision.
Its chrome steel rollers and glass fibre reinforced PA66 cage ensure durability and smooth operation under stress.

With a dynamic radial load capacity of 35,100 lbf, K 81120 TN Bearing excels in demanding applications.
The bearing maintains performance within a temperature range of -30° to 110°C, suitable for varied environments.

K 81120 TN Bearing’s optimised design reduces friction, enhancing efficiency and extending service life.
Its compatibility with SKF models makes it a versatile choice for industrial use.

Application

Industrial Uses of K 81120 TN Bearing
K 81120 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced PA66 cage ensures durability even in demanding environments.

Where Is K 81120 TN Bearing Used?
In automotive applications, K 81120 TN Bearing supports components like clutch assemblies and transmission systems, providing reliable performance under high stress. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: K 81120 TN Bearing
K 81120 TN Bearing excels in construction equipment, such as cranes and excavators, where its robust design withstands extreme loads. The chrome steel rollers enhance longevity, making it a dependable option for tough conditions.

Medical vs Industrial: Where K 81120 TN Bearing Excels
While K 81120 TN Bearing is ideal for industrial machinery, its precision also suits medical devices like MRI scanners, where smooth operation is critical. The temperature range of -30° to 110°C ensures reliability across different settings.

Practical Applications of K 81120 TN Bearing
K 81120 TN Bearing is a go-to for automation systems, including robotic arms and conveyor belts, thanks to its high-speed capability and low maintenance needs. The reinforced cage material adds an extra layer of resilience.
