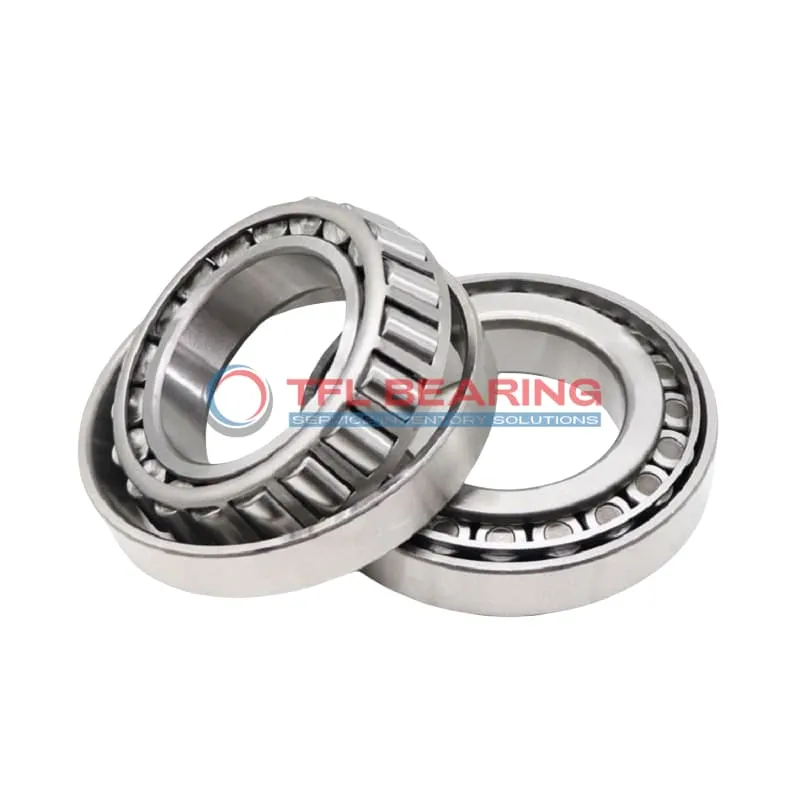

TS (Single Row Tapered Roller Bearings) (Imperial) 67982-67919

TS (Single Row Tapered Roller Bearings) (Imperial) 67982-67919

The 67982-67919 is a single-row tapered roller bearing with a 7.872″ bore and 11″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 105,000 lbf radially and 23,800 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where robust performance is needed.

Weighing 19.6 lb, it’s designed for long-lasting use with standard radial clearance. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 67982-67919
  • Brand TFL
  • Interchangeable Timken
  • Size 7.872" x 11" x 1.8126"
  • Bore Dia 7.872"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 11"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.9375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.8126"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 9.53"
  • Cone Backface Backing Diameter 8.66"
  • Cup Frontface Backing Diameter 10.81"
  • Cup Backface Backing Diameter 10.20"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.63"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 67982
  • Cup Part Number 67919
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 67900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 105000 lbf
  • Static Radial Load 178000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 27300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 23800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 19.6 lb

Features

Performance Features of 67982-67919 Bearing

67982-67919 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 105,000 lbf, making it suitable for heavy-duty applications.

The single-row tapered roller design ensures efficient load distribution, reducing stress on individual components.
With a standard radial clearance, it provides reliable operation in various industrial settings.

67982-67919 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
Its steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

The bearing’s ABEC-1 rating guarantees consistent precision for general applications.
Its open design simplifies lubrication, ensuring smooth performance over extended periods.

Application

Industrial Uses of 67982-67919 Bearing
This bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 67982-67919 Bearing Used?
You’ll often find 67982-67919 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high loads. Its inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 67982-67919 Bearing
67982-67919 Bearing works well in industrial gearboxes, providing reliable performance under continuous operation. The open seal design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 67982-67919 Bearing
In automotive applications, 67982-67919 Bearing is used in truck axles and drivetrains, offering stability under heavy loads. For aerospace, its precision makes it suitable for landing gear components.

Essential Roles of 67982-67919 Bearing
This bearing is vital in railway applications, supporting axles and wheels with its high load capacity. The steel cage adds strength, making it a dependable choice for long-haul transport.
