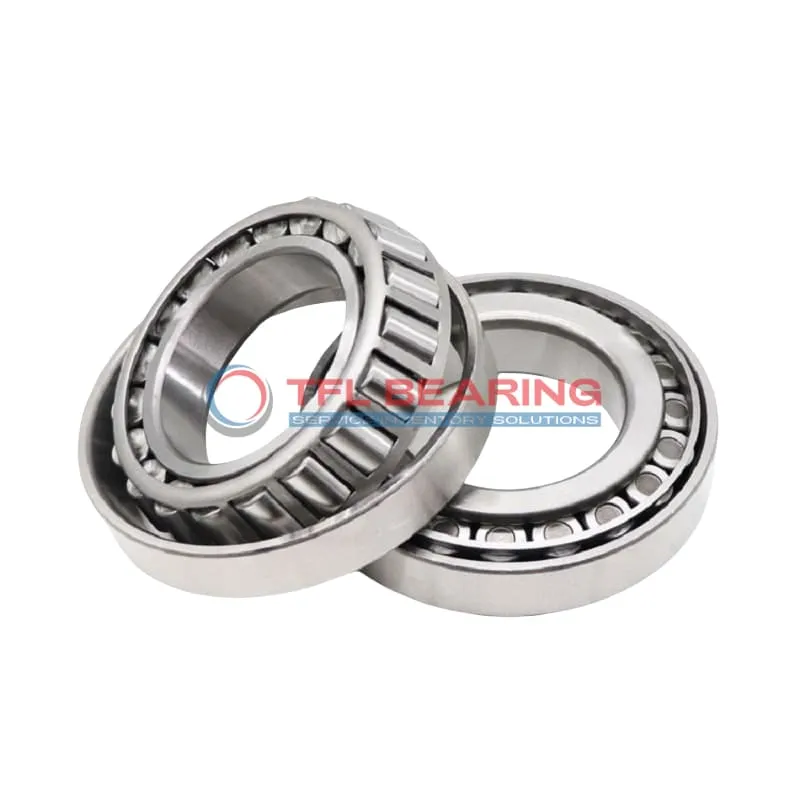

TS (Single Row Tapered Roller Bearings) (Imperial) 67887-67830

TS (Single Row Tapered Roller Bearings) (Imperial) 67887-67830

The 67887-67830 is a single-row tapered roller bearing with a 7.5625″ bore and 11.0236″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 93600 lbf and is designed for durability in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. It’s well-suited for heavy machinery or industrial equipment where combined loads are common.

Weighing 19.8 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and reliable option for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 67887-67830
  • Brand TFL
  • Interchangeable Timken
  • Size 7.5625" x 11.0236" x 1.8317"
  • Bore Dia 7.5625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 11.0236"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.8438"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4173"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.8317"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.410"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 9.02"
  • Cone Backface Backing Diameter 8.78"
  • Cup Frontface Backing Diameter 10.25"
  • Cup Backface Backing Diameter 9.92"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.18"
  • Effective Center Location 0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 67887
  • Cup Part Number 67830
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 67800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 93600 lbf
  • Static Radial Load 188000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 24300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 19800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 19.8 lb

Features

How Does 67887-67830 Bearing Handle Combined Loads?

67887-67830 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 93,600 lbf, making it suitable for heavy-duty applications.

The single-row tapered roller design ensures effective load distribution, enhancing durability and performance.
With a standard radial clearance, it provides reliable operation in various industrial conditions.

67887-67830 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility in different environments.
The steel cage maintains roller alignment, reducing friction and extending service life.

Application

Industrial Uses of 67887-67830 Bearing
The 67887-67830 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 67887-67830 Bearing Used?
You’ll often find the 67887-67830 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. The inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 67887-67830 Bearing
The 67887-67830 Bearing excels in industrial gearboxes, providing reliable performance under constant stress. Its steel cage and chrome steel rollers offer long service life even in demanding environments.

Automotive vs Aerospace: Applications of 67887-67830 Bearing
In automotive applications, the 67887-67830 Bearing is ideal for truck wheel hubs, while in aerospace, it’s used in auxiliary systems. Its ABEC-1 rating ensures consistent performance across different industries.

Essential Roles of 67887-67830 Bearing
The 67887-67830 Bearing is a key component in railway axle boxes, where its tapered rollers manage both radial and axial forces. The standard radial clearance allows for smooth operation in varying temperatures.
