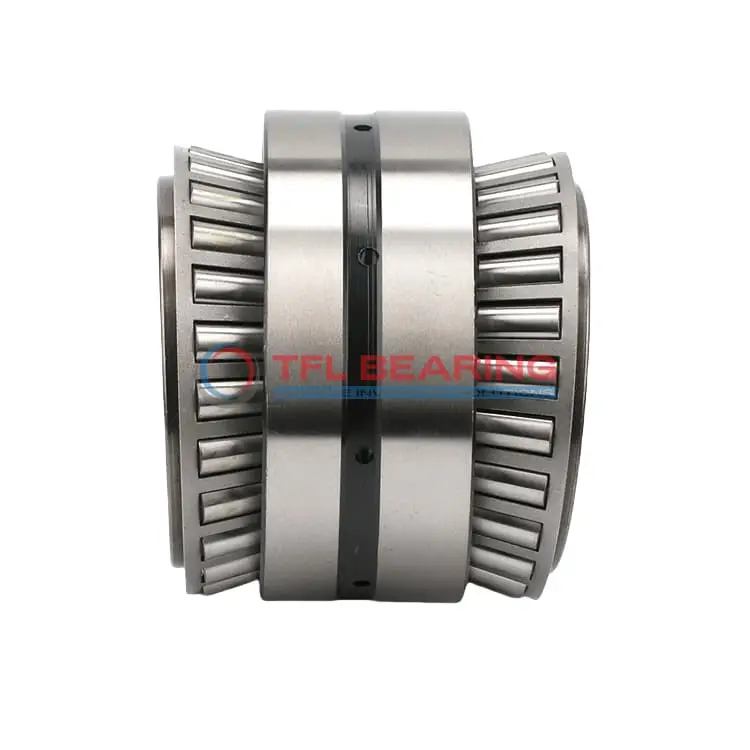

2560X-2523D TDO (Two-Row Double-Outer Race) (Imperial)

2560X-2523D TDO (Two-Row Double-Outer Race) (Imperial)

The 2560X-2523D is a double-row tapered roller bearing with a 1.1811″ bore and 2.75″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 32800 lbf and is designed for long-lasting performance.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is part of the 2500 series, offering standard radial clearance with options for C3, C4, or C5. Ideal for heavy-duty applications like industrial gearboxes or machinery where combined loads are common.

Weighing 2.57 lb, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2560X-2523D
  • Brand TFL
  • Size 1.1811" x 2.75" x 0.9983"
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.75"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.25"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 0.9983"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 2.625"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 1.56"
  • Cup Frontface Backing Diameter 2.56"
  • Cage Cone Backface Clearance 0.02"
  • Dynamic Radial Load 32800 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2560X
  • Cup Part Number 2523D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 4880 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 2280 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 8500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.57 lb

Features

How Is 2560X-2523D Bearing Engineered for Reliability?

2560X-2523D Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability and long service life in demanding applications.
The dynamic radial load capacity reaches 32,800 lbf, making it suitable for heavy-duty machinery.
With a standard radial clearance and ABEC-1 rating, it balances precision and performance.

What Makes 2560X-2523D Bearing Suitable for High-Temperature Applications?

2560X-2523D Bearing operates efficiently in temperatures ranging from -30° to 110°C, ensuring reliable performance in varied conditions.
The chrome steel rings and rollers resist wear, even under high thermal stress.
Its open design allows for easy lubrication, maintaining smooth operation in extreme environments.
This makes it ideal for industrial applications where temperature fluctuations are common.

Designed for Durability: 2560X-2523D Bearing

2560X-2523D Bearing’s double-row construction enhances load distribution, reducing stress on individual rollers.
The steel cage maintains proper roller alignment, minimising wear and extending bearing life.
With a dynamic radial rating of 8,500 lbf for two rows, it handles heavy loads effortlessly.
Its robust design ensures consistent performance in challenging operational conditions.

Application

Industrial Uses of 2560X-2523D Bearing
2560X-2523D Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 2560X-2523D Bearing Used?
You’ll often find 2560X-2523D Bearing in agricultural machinery, like tractors and harvesters, where its tapered roller design provides reliable performance under heavy loads. The inch sizing makes it a good fit for North American equipment.

Built for Heavy-Duty Use: 2560X-2523D Bearing
2560X-2523D Bearing excels in industrial gearboxes, offering smooth operation and long service life. Its open design allows for easy lubrication, which is essential for high-load applications.

Automotive vs Aerospace: Applications of 2560X-2523D Bearing
In automotive applications, 2560X-2523D Bearing supports wheel hubs and differentials, while in aerospace, it’s used in landing gear systems. The ABEC-1 rating ensures consistent performance across both sectors.

Practical Applications of 2560X-2523D Bearing
2560X-2523D Bearing is a reliable choice for conveyor systems in manufacturing plants, where its standard radial clearance balances load capacity and operational smoothness. The steel cage adds extra strength for continuous use.
