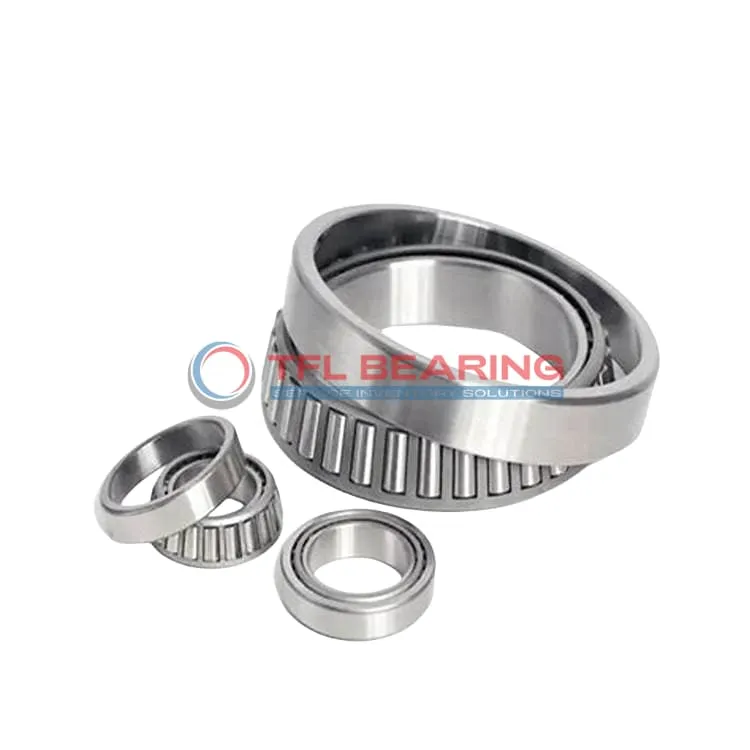

TS (Single Row Tapered Roller Bearings) (Imperial) 65237-65537

TS (Single Row Tapered Roller Bearings) (Imperial) 65237-65537

The 65237-65537 is a single-row tapered roller bearing with a 2.375″ bore and 5.375″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 54700 lbf radially and 11800 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery, gearboxes, or industrial equipment where combined loads are common.

Weighing 7.1 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 65237-65537
  • Brand TFL
  • Interchangeable Timken
  • Size 2.375" x 5.375" x 1.8125"
  • Bore Dia 2.375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 2.8"
  • Cone Backface Backing Diameter 3.23"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.37"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 65237
  • Cup Part Number 65537
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 65000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 54700 lbf
  • Static Radial Load 66700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 14200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.100 lb

Features

Performance Features of 65237-65537 Bearing

65237-65537 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 54,700 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 65237-65537 Bearing Engineered for Reliability?

65237-65537 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent wear resistance, extending its service life.
Its standard radial clearance ensures smooth operation, even under high stress.
The bearing’s ABEC-1 rating guarantees consistent performance in industrial applications.

Built for Durability: 65237-65537 Bearing

65237-65537 Bearing’s tapered roller design efficiently distributes loads, reducing stress on components.
The steel cage maintains roller spacing, preventing slippage and minimising wear.
With a static radial load capacity of 66,700 lbf, it handles demanding conditions with ease.
Its open design simplifies lubrication, ensuring long-term reliability.

Steel vs Ceramic Bearings: Strengths of 65237-65537 Bearing

65237-65537 Bearing uses chrome steel for both rings and rollers, offering excellent strength.
This material choice provides good heat resistance and durability in industrial environments.
The bearing’s dynamic thrust rating of 11,800 lbf ensures reliable performance under pressure.
Its standard radial clearance allows for smooth operation in various applications.

Application

Industrial Uses of 65237-65537 Bearing
The 65237-65537 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 65237-65537 Bearing supports wheel hubs and differential systems, providing reliable performance under high stress. The inch sizing makes it a preferred choice for American-made vehicles.

For industrial conveyors, 65237-65537 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

What Makes 65237-65537 Bearing a Preferred Choice?
65237-65537 Bearing excels in agricultural machinery, such as tractors and harvesters, thanks to its robust design. The tapered rollers distribute loads evenly, minimizing friction.

In power transmission systems, 65237-65537 Bearing handles high radial and thrust loads, ensuring smooth operation. Its ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 65237-65537 Bearing
65237-65537 Bearing is ideal for railway applications, where its durability withstands constant vibration and heavy loads. The standard radial clearance offers flexibility for various installation needs.

In forestry equipment, 65237-65537 Bearing’s resistance to shock loads makes it a reliable component. The chrome steel rollers maintain performance even in harsh outdoor conditions.

Automotive vs Aerospace: Applications of 65237-65537 Bearing
In automotive systems, 65237-65537 Bearing is often found in truck axles, providing long-lasting support. Its inch measurements align with standard US automotive specifications.

For aerospace ground equipment, 65237-65537 Bearing offers dependable performance in maintenance tools and loading systems. The temperature range suits both indoor and outdoor use.
