Drawn Cup Needle Roller Bearings SCE118

Drawn Cup Needle Roller Bearings SCE118

The SCE118 is a drawn cup needle roller bearing with a 0.6875″ bore and 0.875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1933 lbf and spins smoothly at speeds up to 14600 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. It works well in temperatures ranging from -20°C to 110°C, making it suitable for various industrial applications.
Ideal for use in compact machinery or automotive components where space is limited. Compliant with RoHS standards, it’s a safe and dependable choice for radial load applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE118
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.6875"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.875"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1933 lbf
  • Static Radial Load 2967 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 14600 rpm
  • Weight 10 g

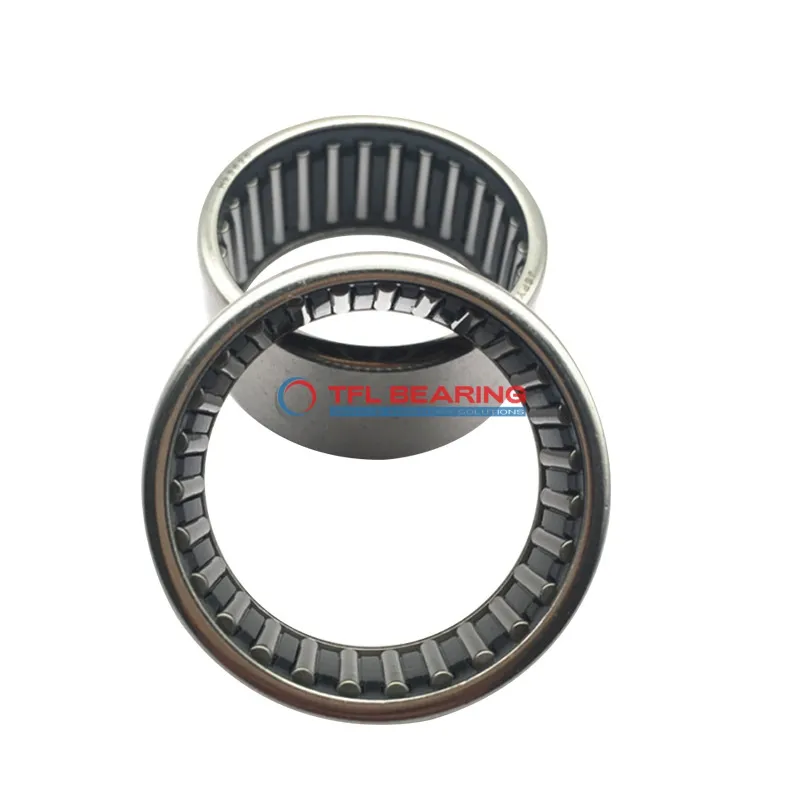

Drawn Cup Needle Roller Bearings SCE118 dimension drawing
Download DWG Download PDF

Features

Performance Features of SCE118 Bearing
SCE118 Bearing is crafted with steel rings and needles, offering robust radial load support.
Its dynamic radial load capacity reaches 1933 lbf, making it suitable for high-demand applications.
The open-end design allows for easy press-fit installation, saving time during assembly.
With a maximum speed of 14,600 rpm, it delivers reliable performance in various conditions.
SCE118 Bearing operates efficiently within a temperature range of -20 to 110°C.
Regular lubrication ensures smooth operation and extends its service life.

Application

Common Applications of SCE118 Bearing
SCE118 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its press-fit design ensures a secure mount, reducing maintenance needs in busy environments.
In automotive applications, SCE118 Bearing fits well in components like transmissions and steering systems, offering reliable performance under heavy loads. The steel construction provides durability, making it a go-to choice for long-lasting parts.
For automation equipment, SCE118 Bearing works smoothly in robotic arms and assembly lines, where precision and speed are key. The open-end design allows for easy lubrication, keeping operations running efficiently.
In consumer electronics, SCE118 Bearing can be found in devices like printers and power tools, where its compact size and strength are ideal. The inch measurements make it compatible with many North American products.
