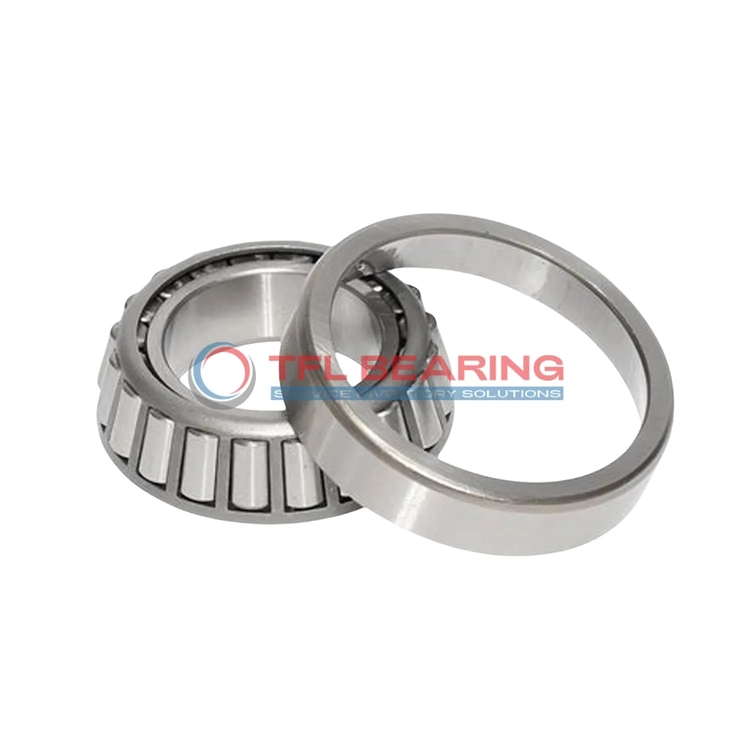

TS (Single Row Tapered Roller Bearings) (Imperial) 65235-65501

TS (Single Row Tapered Roller Bearings) (Imperial) 65235-65501

The 65235-65501 is a single-row tapered roller bearing with a 2.3575″ bore and 5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 54700 lbf radially and 11800 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like vehicle axles or heavy machinery where both radial and thrust loads are present.

Weighing 5.8 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance (with options for C3/C4/C5) provides flexibility for different setups. Its ABEC-1 rating ensures consistent performance for general industrial use.

The tapered roller design distributes loads evenly, reducing wear over time. Easy to maintain and install, it’s a practical choice for engineers and maintenance teams alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 65235-65501
  • Brand TFL
  • Interchangeable Timken
  • Size 2.3575" x 5" x 1.75"
  • Bore Dia 2.3575"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 2.79"
  • Cone Backface Backing Diameter 3.23"
  • Cup Frontface Backing Diameter 4.72"
  • Cup Backface Backing Diameter 4.25"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.37"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 65235
  • Cup Part Number 65501
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 65000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 54700 lbf
  • Static Radial Load 66700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 14200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.8 lb

Features

Performance Features of 65235-65501 Bearing

65235-65501 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 54,700 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

65235-65501 Bearing’s standard radial clearance allows for smooth operation under different conditions.
Its ABEC-1 rating ensures consistent performance for general industrial use.

Application

Industrial Uses of 65235-65501 Bearing
You’ll often spot 65235-65501 Bearing in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effortlessly. The chrome steel construction keeps it durable even in demanding environments.

What Makes 65235-65501 Bearing a Preferred Choice?
In automotive applications, 65235-65501 Bearing works well in truck wheel hubs due to its precise imperial sizing and standard radial clearance. The steel cage provides reliable support during long-haul journeys.

Built for Heavy-Duty Use: 65235-65501 Bearing
This bearing shines in industrial gearboxes, where its ABEC-1 rating ensures consistent performance under dynamic loads. The open design simplifies lubrication maintenance during routine checks.

Automotive vs Industrial: Applications of 65235-65501 Bearing
While 65235-65501 Bearing supports agricultural machinery like combine harvesters, it’s equally at home in mining conveyor systems. The interchangeable Timken design makes replacements straightforward.

Where Is 65235-65501 Bearing Used?
You’ll find 65235-65501 Bearing in railway axle boxes, where its temperature range (-30° to 110°C) handles varying weather conditions. The single row construction offers space efficiency in tight assemblies.
