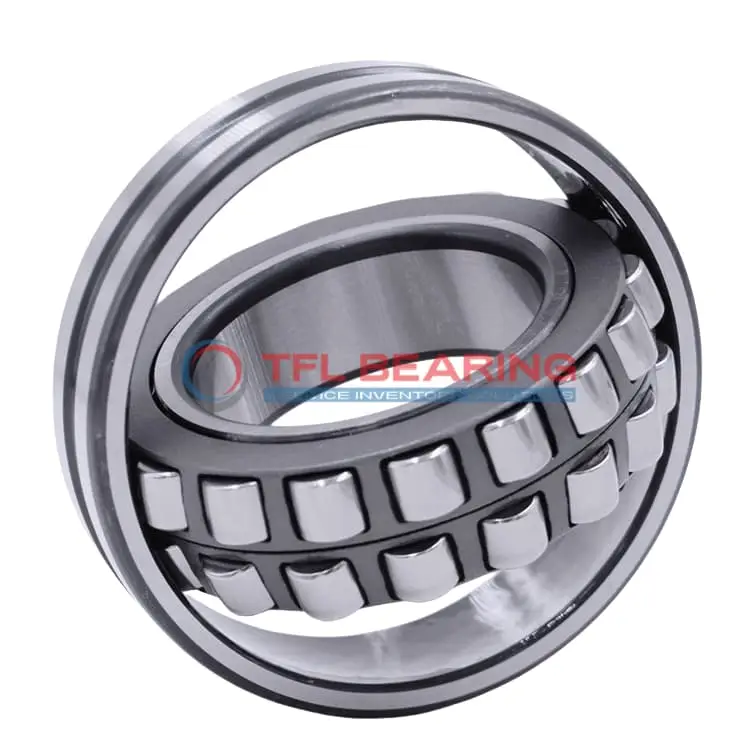

23988 CC/W33 Double Row Spherical Roller Bearing

23988 CC/W33 Double Row Spherical Roller Bearing

The 23988 CC/W33 is a double-row spherical roller bearing with a large 440mm bore and 600mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 563,371 lbf and operates smoothly at speeds up to 1000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction requires lubrication, with grooves and holes for easy maintenance.

This bearing suits high-load applications like industrial gearboxes or heavy machinery, where reliability is key. It works in temperatures from -30°C to 200°C, making it versatile for various environments.

Weighing 98kg, it’s built for heavy-duty use. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23988 CC/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 440 x 600 x 118 mm
  • Bore Dia 440 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 118 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 484 mm
  • Shoulder/Recess Dia Of Outer Ring 553 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 563371 lbf
  • Static Radial Load 1101564 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 98 kg
  • Price （US$） US$5,431.29

Features

Performance Features of 23988 CC/W33 Bearing

23988 CC/W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 563,371 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 1,000 rpm, it balances performance and durability in demanding environments.

23988 CC/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.

Application

Industrial Uses of 23988 CC/W33 Bearing
The 23988 CC/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. Its chrome steel construction ensures durability in harsh industrial environments.

Where Is 23988 CC/W33 Bearing Used?
You’ll often find 23988 CC/W33 Bearing in mining equipment, where its high dynamic radial load capacity supports demanding operations. The spherical roller design also accommodates misalignment, reducing wear over time.

Built for Heavy-Duty Use: 23988 CC/W33 Bearing
23988 CC/W33 Bearing excels in applications like paper mills and wind turbines, thanks to its robust steel cage and lubrication groove. The wide temperature range makes it suitable for both hot and cold working conditions.

Automotive vs Aerospace: Applications of 23988 CC/W33 Bearing
While 23988 CC/W33 Bearing isn’t typical in cars, it’s vital in aerospace ground support equipment for its high static radial load capacity. In contrast, industrial gearboxes rely on it for smooth, long-lasting performance.

Essential Roles of 23988 CC/W33 Bearing
23988 CC/W33 Bearing plays a key role in large pumps and compressors, where its CN radial clearance ensures reliable operation. The metric sizing simplifies integration into European and Asian machinery designs.
