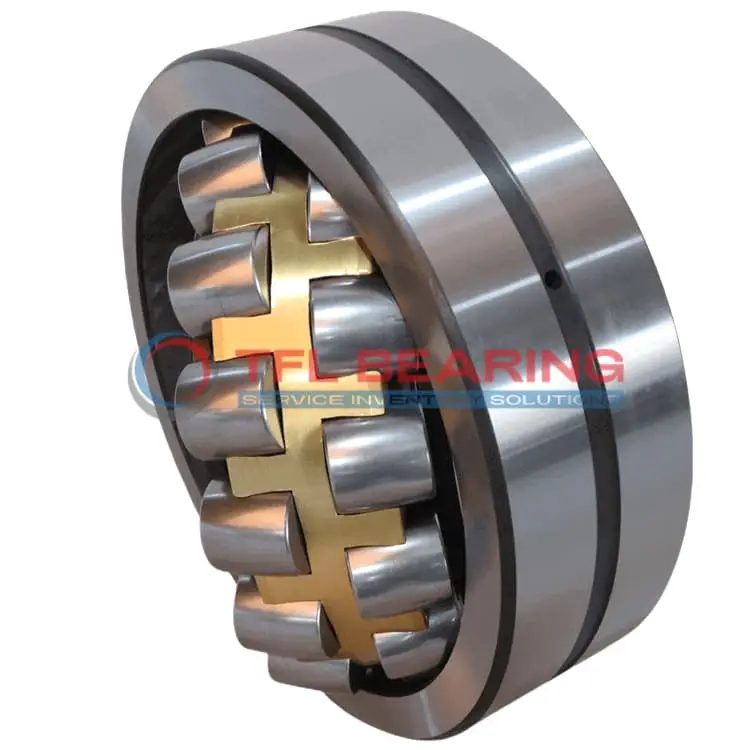

231/530 CA/C2W33VE554E Double Row Spherical Roller Bearing

231/530 CA/C2W33VE554E Double Row Spherical Roller Bearing

The 231/530 CA/C2W33VE554E is a double row spherical roller bearing with a large 530mm bore and 870mm outer diameter, built from tough chrome steel. It handles combined loads up to 1916721 lbf and runs smoothly at speeds up to 670 RPM.

Its brass cage and open design make lubrication easy, while the spherical rollers allow for slight misalignment. The bearing operates in temperatures from -30°C to 200°C, suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or large gearboxes where high radial loads are present.

Weighing 640kg, it’s a robust unit designed for long service life. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 231/530 CA/C2W33VE554E
  • Brand TFL
  • Interchangeable SKF
  • Size 530 x 870 x 272 mm
  • Bore Dia 530 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 272 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 638 mm
  • Shoulder/Recess Dia Of Outer Ring 763 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1916721 lbf
  • Static Radial Load 3147325 lbf
  • Max Speed 670 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 640 kg
  • Price （US$） US$19,600.69

Features

Performance Features of 231/530 CA/C2W33VE554E Bearing

231/530 CA/C2W33VE554E Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1916721 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, enhancing durability and reducing friction.
With a maximum speed of 670 rpm, it delivers reliable performance under demanding conditions.

231/530 CA/C2W33VE554E Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring smooth operation.

The lubrication groove and holes in 231/530 CA/C2W33VE554E Bearing simplify maintenance.
This design helps extend service life and reduces operational downtime.

231/530 CA/C2W33VE554E Bearing’s C2 radial clearance provides optimal performance.
Its robust construction makes it a dependable choice for industrial applications.

Application

Industrial Uses of 231/530 CA/C2W33VE554E Bearing
231/530 CA/C2W33VE554E Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles high radial and axial loads effortlessly. The brass cage ensures smooth operation even under extreme conditions.

In wind turbines, 231/530 CA/C2W33VE554E Bearing provides reliable support for rotor shafts, thanks to its spherical roller design that accommodates misalignment. Its large bore size makes it ideal for high-torque applications.

For steel mills, 231/530 CA/C2W33VE554E Bearing’s chrome steel construction withstands intense heat and heavy loads, ensuring long service life. The C2 radial clearance offers flexibility in thermal expansion scenarios.

Where Is 231/530 CA/C2W33VE554E Bearing Used?
You’ll often find 231/530 CA/C2W33VE554E Bearing in paper mills, where its robust design handles the constant vibration and heavy loads of rolling machines. The lubrication groove ensures consistent performance over long periods.

In marine propulsion systems, 231/530 CA/C2W33VE554E Bearing’s corrosion-resistant materials and high load capacity make it a dependable choice. The open seal design allows for easy maintenance in harsh environments.

Built for Heavy-Duty Use: 231/530 CA/C2W33VE554E Bearing
231/530 CA/C2W33VE554E Bearing excels in construction equipment like cranes, where its combined load capacity and durability are crucial. The spherical rollers adapt to slight misalignments without compromising performance.

For power generation plants, 231/530 CA/C2W33VE554E Bearing’s high-temperature tolerance ensures reliability in turbines and generators. Its brass cage reduces friction, enhancing efficiency under continuous operation.

Automotive vs Aerospace: Applications of 231/530 CA/C2W33VE554E Bearing
In automotive testing rigs, 231/530 CA/C2W33VE554E Bearing handles the rigorous demands of prototype evaluations. Its precision and load capacity make it suitable for high-stress environments.

For aerospace ground equipment, 231/530 CA/C2W33VE554E Bearing’s reliability and temperature range ensure smooth operation in support machinery. The metric sizing aligns with international standards for compatibility.
