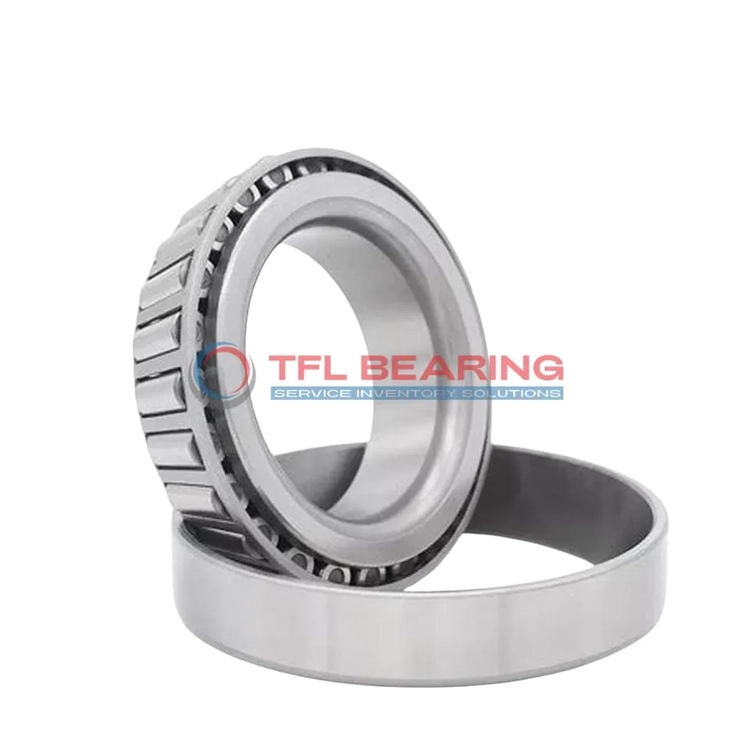

TS (Single Row Tapered Roller Bearings) (Imperial) 622X-613X

TS (Single Row Tapered Roller Bearings) (Imperial) 622X-613X

The 622X-613X is a single-row tapered roller bearing with a 2.1654″ bore and 4.7244″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 46600 lbf radially and 6510 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like gearboxes or wheel hubs where combined loads are common.

Weighing 4.6 lb, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 622X-613X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.1654" x 4.7244" x 1.5757"
  • Bore Dia 2.1654"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.7244"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.22"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5757"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 2.52"
  • Cone Backface Backing Diameter 2.76"
  • Cup Frontface Backing Diameter 4.35"
  • Cup Backface Backing Diameter 4.09"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 622X
  • Cup Part Number 613X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 615
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46600 lbf
  • Static Radial Load 54800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6510 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.6 lb

Features

Performance Features of 622X-613X Bearing

622X-613X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 46,600 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 622X-613X Bearing Engineered for Reliability?

622X-613X Bearing features precise cone and cup dimensions, ensuring smooth operation under combined loads.
The standard radial clearance options allow for flexibility in different applications.
Its chrome steel construction provides durability, while the steel cage enhances stability.
This bearing is interchangeable with Timken models, offering compatibility and convenience.

Built for Durability: 622X-613X Bearing

622X-613X Bearing’s single-row tapered roller design handles both radial and thrust loads efficiently.
The chrome steel rollers and rings resist wear, maintaining performance over time.
With a static radial load capacity of 54,800 lbf, it suits demanding industrial uses.
Its open design simplifies lubrication, ensuring consistent performance.

Steel vs Ceramic Bearings: Strengths of 622X-613X Bearing

622X-613X Bearing uses chrome steel for both rollers and rings, balancing strength and cost-effectiveness.
The steel cage ensures proper roller spacing, reducing friction and heat generation.
Its dynamic thrust rating of 6,510 lbf at 90 million revolutions highlights its endurance.
This bearing is ideal for applications requiring reliable performance under combined loads.

Application

Industrial Uses of 622X-613X Bearing
The 622X-613X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 622X-613X Bearing Used?
You’ll often find 622X-613X Bearing in automotive applications like wheel hubs and differential systems, thanks to its ability to manage both radial and thrust loads. The imperial sizing makes it a good fit for North American vehicle designs.

Built for Heavy-Duty Use: 622X-613X Bearing
In industrial settings like conveyor systems, 622X-613X Bearing provides reliable performance under constant stress. The open design allows for easy lubrication, extending its service life in high-demand environments.

Automotive vs Aerospace: Applications of 622X-613X Bearing
While 622X-613X Bearing excels in automotive drivetrains, its precision also suits aerospace components like landing gear systems. The ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 622X-613X Bearing
For robotic arms and automated assembly lines, 622X-613X Bearing offers smooth operation with minimal maintenance. Its steel cage enhances stability during repetitive movements.
