TS (Single Row Tapered Roller Bearings) (Imperial) 598W-592AS

TS (Single Row Tapered Roller Bearings) (Imperial) 598W-592AS

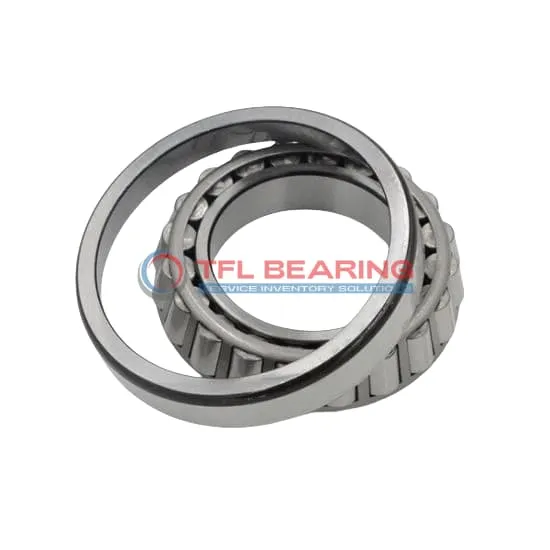

The 598W-592AS is a single-row tapered roller bearing with a 3.625″ bore and 6″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 48600 lbf radially and 9530 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 5.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 598W-592AS
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 6" x 1.4063"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0312"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4063"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 4.64"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.71"
  • Cup Backface Backing Diameter 5.39"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 598W
  • Cup Part Number 592AS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.4 lb

Features

Performance Features of 598W-592AS Bearing

598W-592AS Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

598W-592AS Bearing requires lubrication but offers standard radial clearance options for flexibility.
Its precise cone and cup design ensure smooth operation and easy installation.

Application

Industrial Uses of 598W-592AS Bearing
598W-592AS Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 598W-592AS Bearing supports wheel hubs and axles, providing reliable performance under varying loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 598W-592AS Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength to withstand continuous operation.

Where Is 598W-592AS Bearing Used?
598W-592AS Bearing is often found in agricultural machinery, such as tractors and harvesters, where its robust design handles rough conditions. The tapered rollers distribute loads evenly, reducing wear.

In mining equipment, 598W-592AS Bearing’s high dynamic radial load capacity makes it suitable for crushers and screens. Its standard radial clearance ensures smooth operation under heavy loads.

Built for Heavy-Duty Use: 598W-592AS Bearing
598W-592AS Bearing excels in forestry equipment like log splitters, where its combined load capability is essential. The chrome steel rollers resist deformation under extreme pressure.

For railway applications, 598W-592AS Bearing’s temperature range and lubrication requirements make it ideal for freight car axles. Its ABEC-1 rating balances precision and cost-effectiveness.

Automotive vs Aerospace: Applications of 598W-592AS Bearing
In automotive drivetrains, 598W-592AS Bearing handles high torque and radial loads, ensuring smooth power transmission. Its imperial sizing simplifies replacement in older vehicles.

For aerospace ground support equipment, 598W-592AS Bearing’s reliability and ease of maintenance are key advantages. The steel cage and chrome steel rollers provide long service life.
