41100-41294D TDO (Two-Row Double-Outer Race) (Imperial)

Brand: TFL Bearing 1" x 2.9375" x 0.955" Inch Open
Part number: 41100-41294D
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1"
Bore Dia Tolerance+0.005" to 0
Outer Dia2.9375"
Outer Dia Tolerance+0.001" to 0
Double Cup Width1.625"
Double Cup Width Tolerance+0.003" to -0.01
Cone Width0.955"
Cone Width Tolerance+0.002" to -0.01
Bearing Width Across Cups2.1875"
Bearing Width Across Cups Tolerance+0.008" to 0
Cone Backface Backing Diameter1.61"
Cup Frontface Backing Diameter2.72"
Performance
Dynamic Radial Load32,300 lbf
Dynamic Radial Rating(One Row 90 Million Revolutions)4,820 lbf
Dynamic Thrust Rating(90 Million Revolutions)4,960 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)8,390 lbf
Temperature Range-30° to 110 °C
Characteristics
Cup Backface ToClear Radius0.06"
Cage Cone Backface Clearance0.09"
System of MeasurementInch
TypeBearing
Cone Part Number41100
Cup Part Number41294D
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionDouble Row
Seal TypeOpen
Cups TypeStandard
Series41000
LubricationRequired
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Weight2.51 lb
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

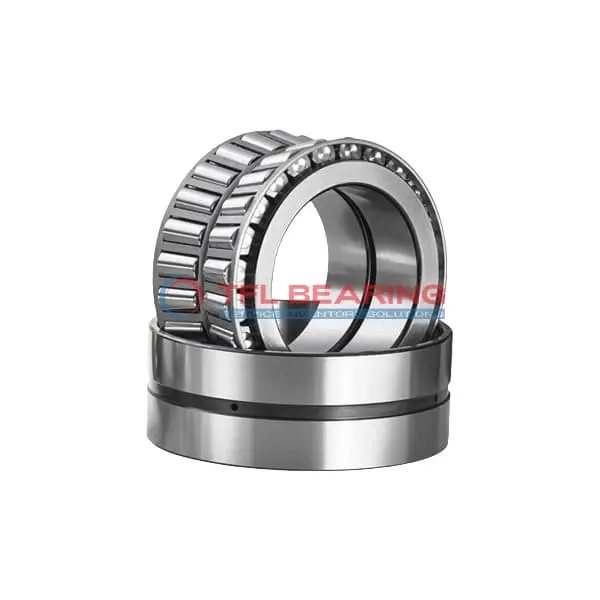

Product photo
41100-41294D TDO (Two-Row Double-Outer Race) (Imperial)

Description

The 41100-41294D is a double-row tapered roller bearing with a 1-inch bore and 2.9375-inch outer diameter, built from sturdy chrome steel. It handles combined loads up to 8390 lbf radially and 4960 lbf thrust, making it a versatile choice for heavy-duty applications.

Its open design requires regular lubrication but allows for easy maintenance. The steel cage ensures durability, while the standard radial clearance offers reliable performance in various conditions.

This bearing operates smoothly in temperatures from -30°C to 110°C, suitable for industrial machinery or automotive use. Its ABEC-1 rating ensures consistent precision without overcomplicating the design.

Weighing 2.51 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a practical option for replacements or new installations. Ideal for gearboxes or axles where combined loads are common.

Features

How Is 41100-41294D Bearing Engineered for Reliability?

41100-41294D Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 32,300 lbf.

The open seal type allows for easy lubrication, maintaining smooth operation in various conditions.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

The standard radial clearance and ABEC-1 rating ensure consistent performance for industrial applications.
Its steel cage keeps the rollers aligned, reducing wear and extending service life.

Application

Industrial Uses of 41100-41294D Bearing
The 41100-41294D Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its double-row design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 41100-41294D Bearing Used?
You’ll often find the 41100-41294D Bearing in industrial gearboxes and power transmission systems, thanks to its ability to manage high dynamic loads. The open seal design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 41100-41294D Bearing
This bearing excels in applications like mining equipment and large conveyor systems, where reliability under heavy loads is essential. Its tapered roller design provides stable performance even in harsh conditions.

Automotive vs Aerospace: Applications of 41100-41294D Bearing
In automotive systems, the 41100-41294D Bearing supports axles and differentials, while in aerospace, it’s used in landing gear mechanisms. Its inch sizing makes it versatile for various imperial-standard applications.

Perfect Fit for Automation: 41100-41294D Bearing
The 41100-41294D Bearing is ideal for robotic arms and automated assembly lines, where precision and load capacity are key. Its standard radial clearance ensures smooth operation in repetitive tasks.
